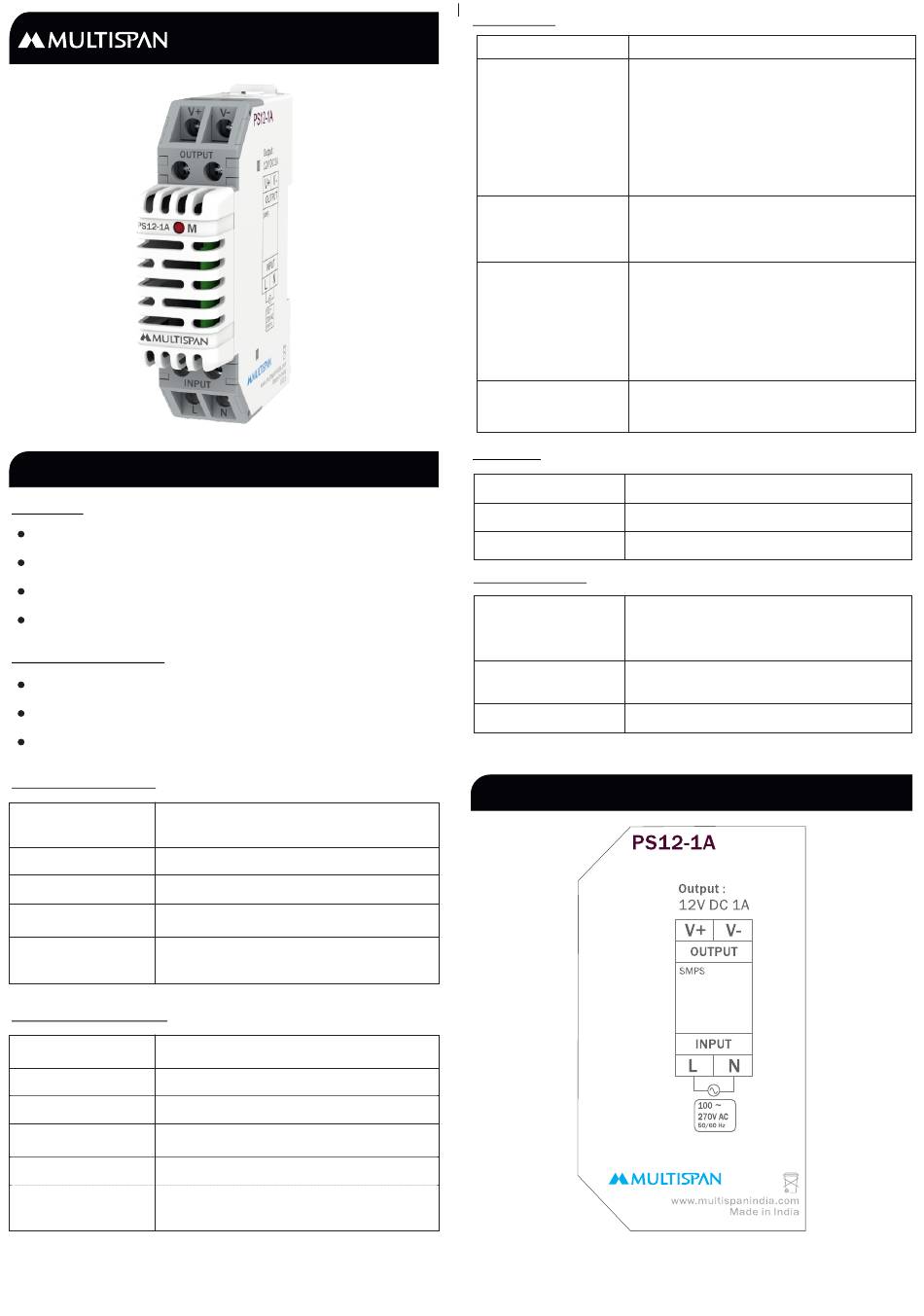

MULTISPAN PS12-1A Manual

Switch Mode Power Supply
TECHNICAL SPECIFICATION
Features :
12W rated power
Compact Size
LED Indicate For Power ON
Din Rail Mount
Protection Available :
Overload
Over Voltage
Over Temperature
Input Specification :
Supply Voltage 100 to 270V AC±10%,(L-N)
Frequency Range
50 / 60Hz
AC Current (TYP.) 0.450A@100V AC, 0.24A@270V AC
Efficiency (TYP.)
>85%@230V AC
<1 sec@230V AC &
Start UP time
<3 sec@100VAC (Full Load)
Output Specification :
Output Voltage
12V DC
Output Current
1A at 12V
Ripple & noise
<1% of V out
Line Regulation
±1%
Load Regulation
±1%
<60ms at 230V AC &
Hold UP Time
>15ms at 100V AC (Full Load)
Protection :
Input Fuse
PS12-1A
Output Over Load
Output Short Circuit
Over Temperature
Isolation between
Input and Output :
Physical :
Mounting Type
Size (H x W x D)mm
Material
Environmental :
Working
Temperature
Storage
Temperature
Relative Humidity
2A -250V AC Internal
110% of rated Output
Current protection
Protection Type :Hiccup
mode;recover automatically
after fault condition
is removed
Hiccup mode when output is
shorted;Recovers automatically
after fault condition is removed.
Power supply shuts down when
the temperature goes above
specified limit;
Turns on automatically after
temperature goes back to
Normal operating conditions.
2.5 KV
Din Rail Mount
90 x 22.5 x 75
Polycarbonate (PC)
-25°C to 50°C * De-rate
output power at 3w/°C
above +50°C Ambient
-40°C to 85°C
95% RH Non-condensing
CONNECTION DIAGRAM
Page 1
