MULTISPAN PS12-2A Manual page 2

- Ensure that the power supply is turned off before starting
the installation.
- Use a standard 35mm DIN rail channel and make sure
that it is securely mounted.
- As per Fig. 1(a), hold the power supply unit at a slight angle
and place it over the top edge of the DIN rail channel.
- Press the unit slightly downward until it mounts securely
on the DIN rail as per Fig. 1(b).
- To remove the power supply unit, insert a screwdriver into
the clamp at the bottom, as per Fig. 2.
- Tilt the power supply unit slightly upward and remove it.
Fig. 1(a)

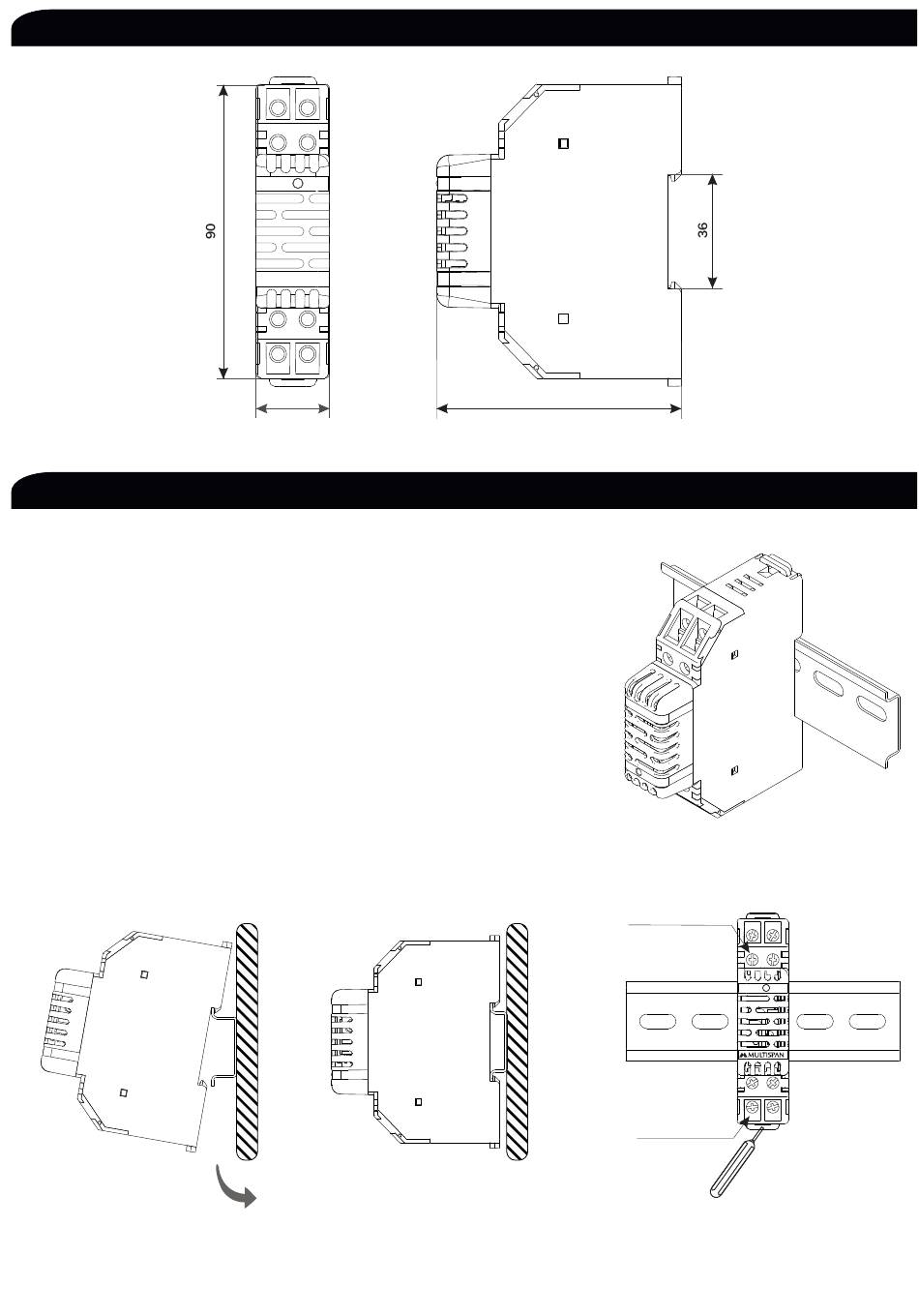

MECHANICAL DIMENSIONS
22.5
FRONT VIEW
POWER SUPPLY UNIT INSTALLATION STEPS
75
RIGHT SIDE VIEW
Fig. 1(b)
All dimensions are in mm
OUTPUT TERMINAL
INPUT TERMINAL
Screwdriver
Fig. 2
Page 2
