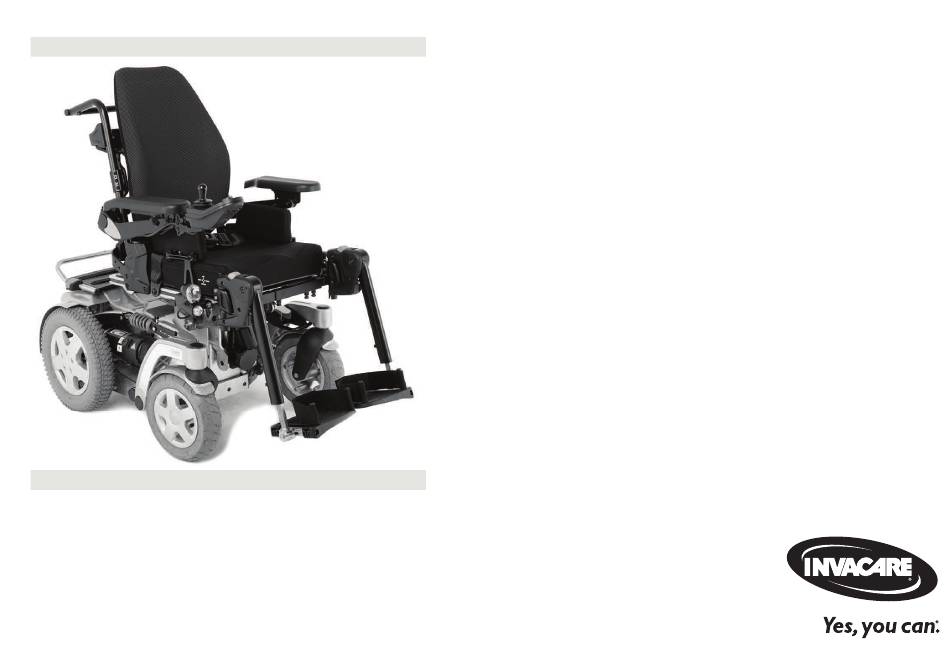

- Page 1 Invacare® Storm® Series Storm , Storm X-plore Power Wheelchair User Manual This manual MUST be given to the user of the product. BEFORE using this product, this manual MUST be read and saved for ...
-
Page 2: Table Of Contents
All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™ and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted. - Page 3 5.6.2 Adjusting Egg Switch 5.17.3 Adjusting Calf Pad Width 5.7 Adjusting Powered Chin Control 5.17.4 Adjusting Angle of Footrest 5.7.1 Adjusting Extremity Control Joystick 5.18 Central Legrests — Electrically Adjustable 5.7.2 Adjusting Joysticks and Switches on Linkage 5.19 Vari-F Legrest 5.7.3 Adjusting Height of Linkage Switch 5.19.1 Swivelling Legrest Outward and / or Removing 5.8 Adjusting Head Array 5.19.2 Setting Angle 5.9 Armrests 5.19.3 Setting End Stop of Legrest 5.9.1 Adjusting Armrest Height 5.19.4 Adjusting Length of Legrest 5.9.2 Adjusting Armrest Width 5.20 Vari-A Legrests 5.9.3 Adjusting Armrest Depth 5.20.1 Swivelling Legrest Outward and / or Removing 5.9.4 Changing Resistance (Flip-up / Following Armrest) 5.20.2 Setting Angle 5.9.5 Adjusting Arm Pad Angle (Flip-Up/Following Armrest) 5.20.3 Setting End Stop of Legrest 5.9.6 Adjusting Arm Pad Position (Flip-Up Armrest) 5.20.4 Adjusting Length of Legrest 5.10 Adjusting the Headrest 5.20.5 Adjusting Calf Pads 5.10.1 Adjusting R ea Headrest or Neckrest 5.20.6 Adjusting Footrests 5.10.2 Adjusting Cheek Supports 5.21 ADM Legrests 5.10.3 Adjusting Elan Headrest Hardware 5.21.1 Swivelling Legrest Outward and / or Removing 5.11 Adjusting Backrest 5.21.2 Setting Angle 5.11.1 Adjusting Backrest Height 5.21.3 Adjusting Length of Legrest 5.11.2 Adjusting Backrest Width 5.21.4 Adjusting Calf Pads 5.11.3 Adjusting Backrest Angle...
- Page 4 6.4 Getting in and out of Power Wheelchair 8.3.1 How the Power Wheelchair is Anchored in a Vehicle 6.4.1 Removing A rmrest for Side Transfer 8.3.2 Securing User in Power Wheelchair 6.4.2 Swivelling Remote to Side 8.4 Transporting Power Wheelchair Without Occupant 6.4.3 Swivelling Nucleus Midline Holder to Side 9 Maintenance 6.4.4 Swivelling Swing-Away Display Holder to Side 9.1 Maintenance Introduction 6.4.5 Removing / Inserting Hip Support with Quick Release 9.2 Inspection Checks 6.4.6 Information About Getting in and out 9.2.1 Before Each Use of Power Wheelchair 6.5 Taking Obstacles 9.2.2 Weekly 6.5.1 Maximum Obstacle Height 9.2.3 Monthly 6.5.2 Correct Way to Take Obstacles 9.3 Wheels and Tyres 6.6 Driving up and down Gradients 9.4 Short-Term Storage 6.7 Use on Public Roads 9.5 Long-Term Storage 6.8 Using Foldable Antitippers 9.6 Opening Rear Shroud 6.9 Pushing Power Wheelchair in Freewheel Mode 9.7 Disconnect Power Module 6.9.1 Disengaging Motors 9.8 Cleaning and Disinfection 6.10 Replacing Backrest Cushion 9.8.1 General Safety Information 7 Control System 9.8.2 Cleaning Intervals 7.1 Controls Protection System 9.8.3 Cleaning 7.2 Batteries 9.8.4 Disinfection Instructions 7.2.1 General Information on Charging 10 After Use 7.2.2 General Instructions on Charging...
-
Page 5: 1 General
1 General For more information about the product, for example product safety 1 General notices and product recalls, contact your Invacare distributor. See addresses at the end of this document. 1.1 Introduction In case of a serious incident with the product, you should inform the manufacturer and the competent authority in your country. This user manual contains important information about the handling of the product. To ensure safety when using the product, read the user 1.2 Symbols in This Manual manual carefully and follow the safety instructions. Only use this product if you have read and understood this manual. Symbols and signal words are used in this manual and apply to hazards Seek additional advice from a healthcare professional who is familiar or unsafe practices which could result in personal injury or property with your medical condition and clarify any questions regarding the damage. See the information below for definitions of the signal words. correct use and necessary adjustment with the healthcare professional. DANGER! Indicates a hazardous situation that will result in serious Note that there may be sections in this document, which are not injury or death if it is not avoided. relevant to your product, since this document applies to all available models (on the date of printing). If not otherwise stated, each section in this document refers to all models of the product. WARNING! Indicates a hazardous situation that could result in serious The models and configurations available in your country can be found injury or death if it is not avoided. in the country-specific sales documents. Invacare reserves the right to alter product specifications without CAUTION! further notice. Indicates a hazardous situation that could result in minor or Before reading this document, make sure you have the latest version. slight injury if it is not avoided. You find the latest version as a PDF on the Invacare website. -
Page 6: Compliance
Invacare® Storm4 Series Tools 1.3.1 Product-Specific Standards Identifies required tools, components and items which are needed to carry out certain work. The product has been tested and conforms to EN 12184 (Electrically powered wheelchairs, scooters and their chargers) and all related Other Symbols standards. (Not applicable for all manuals) When equipped with an appropriate lighting system, the product is UK Responsible Person suitable for use on public roads. Indicates if a product is not manufactured in the UK. For further information about local standards and regulations, contact Triman your local Invacare distributor. See addresses at the end of this Indicates recycling and sorting rules (only relevant for document. France). 1.4 Usability 1.3 Compliance Only use a power wheelchair when it is in perfect working order. Quality is fundamental to the company’s operation, working within the Otherwise, you might put yourself and others at risk. disciplines of ISO 13485. The following list does not claim to be exhaustive. It is only intended to This product features the CE mark, in compliance with the Medical show some of the situations that could affect the usability of your Device Regulation 2017/745 Class I. power wheelchair. This product features the UKCA mark, in compliance with Part II UK In certain situations, you should immediately stop using your power MDR 2002 (as amended) Class I. wheelchair. Other situations allow you to use the power wheelchair to ... -
Page 7: Warranty Information
and properly maintained, and provided technical and scientific damage to the joystick (joystick cannot be moved into the advances do not result in technical limitations. The service life can also neutral position) be considerably reduced by extreme or incorrect usage. The fact that cables that are damaged, kinked, pinched or have come loose we estimate a service life for this product does not constitute an from the fixation additional warranty. the power wheelchair drifting when braking the power wheelchair pulling to one side when moving 1.7 Limitation of Liability unusual sounds developing or occurring Invacare accepts no liability for damage arising from: Or if you have the feeling that something is wrong with your power wheelchair. Non-compliance with the user manual Incorrect use 1.5 Warranty Information Natural wear and tear Incorrect assembly or set-up by the purchaser or a third party We provide a manufacturer’s warranty for the product in accordance Technical modifications with our General Terms and Conditions of Business in the respective Unauthorised modifications and/or use of unsuitable spare parts countries. Warranty claims can only be made through the provider from whom ... -
Page 8: 2 Safety
2 Safety 2 Safety WARNING! Risk of Serious Injury or Damage 2.1 General Safety Notes Storing or using the power wheelchair near open flame o r combustible products can result in serious injury or damage. — Avoid storing or using the power wheelchair near open WARNING! flame o r combustible products. Risk of Serious Injury or Damage Improper use of this product may cause injury o r damage. — If you are unable to understand the warnings, c autions WARNING! or instructions, contact a health care p rofessional or Risk of damage or injury if power wheelchair ... -
Page 9: Risk Of Death, Serious Injury Or Damage
Invacare® Storm4 Series WARNING! medication or alcohol. If necessary, the power Risk of Death, Serious Injury or Damage wheelchair must be operated by an attendant who is Risk of entrapment and strangulation when loose personal physically and mentally able. belongings (e.g. jewellery, scarfs) get caught by moving or protruding parts. WARNING! — Make sure that any loose items are clear of moving parts Risk of injury if the power wheelchair is switched off of the power wheelchair, e.g. wheels or powered seating while driving, for example by pressing the On/Off components. Button or disconnecting a cable, due to it coming to — Keep your hands, clothing and all other objects away an abrupt, sharp stop from wheels or powered seating components when they — If you have to brake in an emergency, simply release the are in operation. joystick which will bring you to a halt (refer to the — Power off power wheelchair immediatley to stop any remote user manual for more information). movement. WARNING! WARNING! Risk of injury when transferring power wheelchair to ... - Page 10 CAUTION! Risk of injury if maximum permissible load is — Do not leave the power wheelchair in direct sunlight for exceeded prolonged periods. Metal parts and surfaces such as the — Do not exceed the maximum permissible load (refer to seat and armrests can become very hot. 11.1 Technical Specifications, page 100). — The power wheelchair is only designed for use by a CAUTION! single occupant whose maximum weight does not Risk of fire or breaking down due to electric devices exceed the maximum permissible load of the device. being connected Never use the power wheelchair to transport more than — Do not connect any electric devices to your power one person. wheelchair that are not expressly certified by Invacare for this purpose. Have all electrical installations done by your authorised Invacare provider. 1529686-AC...
-
Page 11: Safety Information On The Electrical System
Invacare® Storm4 Series — The NEGATIVE (-) BLACK battery c able MUST connect to 2.2 Safety Information on the Electrical System the NEGATIVE (-) battery terminal(s) / post(s). — NEVER allow any of your tools and / or battery cable(s) WARNING! to contact BOTH battery post(s) at the same time. An Risk of death, serious injury or damage electrical short may occur and serious injury or damage Misuse of the power wheelchair may cause the power may occur. wheelchair to start smoking, sparking, or burning. Death, — Install protective caps on positive and negative battery serious injury, or damage may occur due to fire. terminals. — DO NOT use the power wheelchair other than its — Replace cable(s) immediately if cable(s) insulation intended purpose. ... -
Page 12: Safety Information On Electromagnetic Interference
2 Safety WARNING! — When cables with live pins have to be disconnected, for Risk of fire example, when removing the bus cable from the remote Switched on lamps produce heat. If you cover the lamps for safety reasons, make sure to restrain or cover the with fabrics such as clothes, there is a risk that the fabric pins (with non-conductive materials). may catch fire. — NEVER cover the light system with fabric. NOTICE! A failure in the electric system can lead to unusual behavior WARNING! such as continuous light, no light, or noises from the Risk of death, serious injury or damage when magnetic brakes. carrying along oxygen systems — If a failure exists, switch off the remote and switch it on Textiles and other materials that normally would not burn again. are easily ignited and burn with great intensity in oxygen — If a failure still exists, then disconnect or remove the enriched air. power source. Depending o n the power wheelchair — Check the oxygen tubing daily, from the cylinder to the model, you can either remove the b attery packs or delivery site, for leaks and hold away from electrical ... -
Page 13: Safety Information On Driving And Freewheel Mode
Invacare® Storm4 Series Also, the electronics used in our power wheelchairs can generate a low 2.4 Safety Information on Driving and level of electromagnetic interference, which however will remain within the tolerance permitted by law. For these reasons we ask you to Freewheel Mode please observe the following precautions: DANGER! WARNING! Risk of death, serious injury, or damage Risk of malfunction due to electromagnetic Malfunctioning joystick could cause unintended / erratic interference movement resulting in death, serious injury, or damage — Do not switch on or operate portable transceivers or — If unintended / erratic movement occurs, stop using the communication devices (such as radio transceivers or wheelchair immediately and contact a qualified cellular phones) when the power wheelchair is switched technician. on. ... - Page 14 2 Safety WARNING! — Never attempt to overcome an obstacle when on an Risk of breaking down in adverse weather uphill or downhill gradient. conditions, i.e. extreme cold, in an isolated area — Never attempt to drive up or down a flight of steps with — If you are a user with severely limited mobility, we your power wheelchair. advise that in the case of adverse weather conditions DO — When overcoming obstacles, always observe the NOT attempt a journey without an accompanying maximum obstacle height and information about attendant. overcoming obstacles (refer to 6.5 Taking Obstacles, page 74). — Avoid shifting your centre of gravity as well as abrupt WARNING! joystick movements and changes of direction when the Risk of injury if the power wheelchair tips over power wheelchair is in motion. — Inclines and declines can only be travelled up to the — Never use the power wheelchair to transport more than maximum safe slope (refer to 11.1 Technical one person.
-
Page 15: Safety Information With Regard To Care And Maintenance
Invacare® Storm4 Series WARNING! WARNING! Risk of injury if you collide with an obstacle when Risk of tipping driving through narrow passages such as doorways Antitippers (stabilizers) are only effective on firm ground. and entrances They sink in on soft ground such as grass, snow or mud if the — Drive through narrow passages in the lowest driving power wheelchair rests itself on them. They lose their effect mode and with due caution. and the power wheelchair can tip over. — Only drive with extreme care on soft ground, especially during uphill and downhill journeys. In the process pay WARNING! increased attention to the tip stability of the power Risk of injury wheelchair. If your power wheelchair has been fitted with elevating legrests, there is a risk of personal injury and damage to the 2.5 Safety Information With Regard to Care and power wheelchair if you drive the power wheelchair with the legrests raised. Maintenance — To avoid unwanted displacement of the power wheelchair centre of gravity to the front (especially WARNING! when travelling downhill) and in order to avoid damage Risk of death, serious injury, or damage to the power wheelchair, elevating legrests must always ... -
Page 16: Safety Information Regarding Changes And Modifications To The Power Wheelchair
2 Safety The CE marking is invalidated if components or accessories / CAUTION! options are replaced or added that have not been approved for Risk of accident and loss of warranty if maintenance this p roduct by Invacare. is insufficient In this case, the company that adds or replaces the components — For reasons of safety and in order to avoid accidents or accessories / options is responsible for the conformity which result from unnoticed wear, it is important that assessment / CE m arking or for registering the power wheelchair ... -
Page 17: Safety Information For Recaro Seat
Invacare® Storm4 Series circumstances, comply with the valid standards and could perform risk analyses, calculations, stability checks etc. increase the flammability and the risk of skin irritation. to ensure that the backrest can be used safely. — Only use seating systems that have been approved by Important information about maintenance w ork tools Invacare for this power wheelchair. Some maintenance work which is described in this manual a nd can be carried out by the user without problems require the CAUTION! correct t ools for proper work. If you do not have the correct Risk of injuries and damage to power wheelchair due tool available w e do not recommend that you try to carry out to unapproved components and a ccessories / ... -
Page 18: Safety Information On Power Wheelchairs With A Lifter
2 Safety CAUTION! 2.8 Safety Information on Power Wheelchairs Damage to power wheelchair caused by one-sided with a Lifter loading on lifter pillar — One-sided loading occurs if the seat is raised and / or WARNING! tilted. Always return the backrest to the upright position Risk of injury by moving parts and the seat tilting to the horizontal position before — Never let objects get caught in the space underneath a ascending slopes. Never subject the lifter pillar to raised lifter. continuous single-sided loading. The raising and tilting — Make sure that neither you nor anyone else is injured by function of the seat only provides additional rest placing hands, feet or other body extremities under the positions. raised seat. — Should you not be able to view under the seat, for CAUTION! example, due to limited manoeuvrability, turn the Risk of injury if the power wheelchair tips over wheelchair once on its own axle before you lower the — Never exceed the maximum permissible load (refer to seat. This will allow you to make sure that nobody is 11.1 Technical Specifications, page 100). located in the danger zone. -
Page 19: 3 Product Overview
3 Product Overview Contraindications 3 Product Overview There are no contraindications known. 3.1 Intended Use 3.2 Type Classification 3.1.1 Product Description This vehicle has been classified according to EN 12184 as a class B mobility product (for indoor and outdoor areas). It is therefore The Storm is a rear wheel drive power wheelchair that can be compact and agile enough for indoor areas, but also able to overcome established with a multitude of configurations. many obstacles in outdoor areas. The Storm X-plore is especially designed for outdoor use. 3.3 Main Parts of Wheelchair 3.1.2 Intended User This power wheelchair was designed for adults and adolescents whose A Headrest E Legrest ability to walk is impaired, but who are still in terms of their eyesight and physically and mentally able to operate an electric power wheelchair. B Backrest F Drive motor 3.1.3 Indications The use of this power wheelchair is recommended for the following C Armrest G Drive wheel indications: The inability or a greatly restricted ability to walk within the ... -
Page 20: Labels On Product
Invacare® Storm4 Series 3.4 Labels on Product If the power wheelchair is fitted with a tray, it is imperative that i t is removed and safely stowed when transporting the power wheelchair i n a vehicle. The colour of the left and middle rectangles a nd cross bar is red. The colour of the right rectangle i s green. Identification of the tie-down points a t the front and back: If ... - Page 21 3 Product Overview Identification of the position of the coupling lever for driving a nd push operation (only the right side visible in the picture). For details see below. Warning that the power wheelchair m ay not be used as a vehicle seat. This power wheelchair does n ot satisfy the requirements of ISO 7176-19. The colour of t he symbol background is blue on product labels. The colour of the c ircle with diagonal bar is red on product labels. Warning not to use the cable loop as an tie-down point.
-
Page 22: Explanation Of Symbols On Labels
Invacare® Storm4 Series Explanation of Symbols on Labels Manufacturer Unique Device Identification Date of manufacture Battery type Medical device Factory setting European Conformity Serial number UK Conformity Assessed Maximum speed QR code contains link to user manual Rated slope Read the user manual Unladen weight WEEE Conformity Maximum user weight Do not drive up or down slopes when the lifter is Do not lean out when the lifter is raised! raised! Do not allow any body parts to get under a raised seat! Never drive with two people! Never drive over uneven surfaces when the lifter is raised! This symbol indicates the “Drive” position of the coupling lever. In this position the motor is engaged and the motor brakes are operational. Y ou can drive the power wheelchair. Note that for driving purposes both motors must always be engaged. 1529686-AC... - Page 23 3 Product Overview This symbol indicates the “Push” position of the coupling lever. In this position the motor is disengaged and the motor brakes are not operational. The power wheelchair can be pushed by an attendant a nd the wheels turn freely. Note that the remote must be switched off. Also refer to 6.9 Pushing Power Wheelchair in Freewheel Mode, page 77. This symbol indicates the OFF position of the circuit breaker switch. In this position the battery source is isolated and the power wheelchair cannot be operated or charged. This symbol indicates the ON position of the circuit breaker switch. In this position the battery source is connected and the power wheelchair can be operated or charged. This symbol indicates the circuit breaker. Read the user manual. This symbol appears on different labels and positions. 1529686-AC...
-
Page 24: User Inputs
Invacare® Storm4 Series Or if the speed limit is activated, a reduced drive level 3.5 User Inputs (forced profile) is set automatically. Refer to the remote manual for more information. Your power wheelchair may be fitted with one of several different user The speed reduction takes place to guarantee the tipping inputs. For information on the different functions and how to operate a particular user input, refer to its corresponding remote manual stability of the power wheelchair and to avoid personal (enclosed). risk and damage to the power wheelchair. To reapply normal speed, lower the lifter down until the 3.6 The Lifter forced profile or the speed reduction switches off. If the power wheelchair is fitted with a chin control, it The electric lifter is operated from the remote. Refer to the remote reacts different to forced profile. Refer to the manual of manual for more information. the chin control for more information. Information regarding operation of the lifter at temperatures of less than 0 °C CAUTION! Risk of tipping, if the speed limiter sensors fail when Invacare power wheelchairs are fitted with safety the lifter is raised mechanisms that prevent capacity overload of the — If you find that the speed reduction function is not electronic components. At operating temperatures below working when the lifter is raised, do not drive with the freezing point this can, in particular, lead to the lifter lifter raised and immediately contact an authorised ... - Page 25 3 Product Overview 90° — To ensure proper set-up, adjustments to lockouts and limits should only be performed by a qualified 130° technician. — Never exceed the maximum recommended limits. 140° Lockouts and limit switches should be set up to best meet the needs of the user without compromising the overall stability of the wheelchair. — Following any limit or lockout adjustments, always test the seating system over the full range of motion (i.e. tilt, recline, lifter) to verify the revised set-up is functioning properly and ensure that there are no resulting stability or interference issues. Limitation Cause for Limitation Additional limits and lockout switches may be required for If lifter is raised more complicated / specialised seating systems. For >10 mm Drive Slowdown information on limits / lockouts that are not identified in this or if backrest angle is manual, contact your provider. >90° – <130° For Storm , drive and seating restrictions are only updated while If backrest angle i s stationary.
- Page 26 Invacare® Storm4 Series Seating Limitations with Lifter 115° 140° Limitation Cause for Limitation If the tilt angle A is >115° Lifting inhibited or if backrest angle B is >140° 1529686-AC...
-
Page 27: 4 Accessories / Options
4 Accessories / Options Belt with Plastic Buckle, Adjustable Both Sides 4 Accessories / Options 4.1 Posture Belts A posture belt is an option which can either be fixed to the power wheelchair ex-works or can be retrofitted by your specialist provider. If Belt can be adjusted on both sides. This means that the buckle can be your power wheelchair is fitted with a posture belt, your specialist centrally positioned. provider will have informed you about fitting and usage. Harness with Metal Buckle, Adjustable Both Sides The posture belt is used to help the power wheelchair user keep an optimum seating position. Correct use of the belt assists the user in sitting securely, comfortably and well-positioned in the power wheelchair, especially for such users who do not have such a good sense of balance while sitting. We recommend using the posture belt whenever the power wheelchair is used. 4.1.1 Types of Posture Belts Your power wheelchair can be fitted with the following posture belt types ex-works. If your power wheelchair has been fitted with a Harness can be adjusted on both sides. This ensures that the buckle is different belt to those listed below, please ensure that you have always centrally positioned. received the manufacturer's documentation with regard to correct 4.1.2 Adjusting Posture Belt Correctly fitting and use. Belt with Metal Buckle, Adjustable Both Sides The belt should be tight enough to ensure that you are sitting comfortably and that your body is in the correct sitting position. 1. Ensure that you are sitting correctly, which means that you are sitting right at back of seat, your pelvis is positioned erect and as symmetrically as possible, not to front, to side or at one edge of ... -
Page 28: Adjusting Or Removing Luggage Carrier
5. Check your belt every week to ensure that it is still in good luggage carrier bracket. working condition, to ensure it has no damage or wear, and that it is fixed properly to power wheelchair. If belt is only fastened 4.3 Using Cane Holder with a bolted connection, ensure that connection has not If your power wheelchair is fitted with a cane holder, it can be used for loosened or come undone. You can find more information about the safe transport of a walking cane, underarm or forearm crutches. maintenance work on belts in the service manual, which is The cane holder consists of a plastic container (bottom) and a hook- available from Invacare. and-loop fastener (top). 4.2 Adjusting or Removing Luggage Carrier CAUTION! Risk of Injury Risk of damage as a result of collisions A walking cane or crutches that are not secured during Parts of the power wheelchair may be damaged if the transport (on the user's lap, for example) can cause injury to luggage carrier collides with the seat during seat angle or the user or other persons. backrest adjustment. -
Page 29: 5 Setup
— Performance adjustments should only be made by a qualified technician. healthcare professionals or persons fully conversant — Adjustment by the user is only recommended after they with this process and the driver's capabilities. have been given appropriate guidance by the healthcare — After the power wheelchair has been set-up / adjusted, professional. check to make sure that the power wheelchair performs — DO NOT attempt to carry out the work if you do not to the specifications entered during the set-up have the listed tools available. procedure. If the power wheelchair does not perform to specifications, IMMEDIATELY turn the power wheelchair CAUTION! Off and re-enter set-up specifications. Contact Invacare, Risk of Injury or Damage if power wheelchair still does not perform to correct The power wheelchair is fitted with an individual, multiply specifications. adjustable seating system including adjustable legrests, armrests, a headrest or other options which are used to WARNING! adapt the seat to the physical requirements and the Risk of Death, Serious Injury or Damage condition of the user. It is possible that collisions or pinch Attaching hardware that is loosely secured or missing could points can occur between power wheelchair components cause instability resulting in death, serious personal injury, due to various combinations of adjustment options and their or property damage. -
Page 30: Electrical Adjustment Options
Invacare® Storm4 Series When adapting the seating system and the seat functions to 5.2 Adjusting Remote the user: — Beware of pinch points when adjusting the power CAUTION! wheelchair components and Risk of the remote being pushed backwards during — ensure that no power wheelchair components collide. an accidental collision with an obstacle, such as a doorframe or table, and the joystick being jammed NOTICE! against the armpad if the position of the remote is The power wheelchair is manufactured and configured adjusted and all screws are not completely tightened individually to the specifications of the order. The This will cause the power wheelchair to drive forward assessment must be performed by a healthcare professional uncontrollably and potentially injure the power wheelchair according to the user´s requirements and health conditions. user and any person standing in the way. — Consult a healthcare professional if you intend to adapt — When adjusting the position of the remote, always make the power wheelchair configuration. sure to tighten all screws securely. — Any adaption should be performed by a qualified — If this should accidentally happen, immediately switch technican. ... -
Page 31: Adjusting Standard Remote Holder
5 Setup 5.2.1 Adjusting Standard Remote Holder 5.2.2 Adjusting Swing Away Remote Holder Adjusting Remote for Length of User's Arm Adjusting Remote Height 6 mm Allen key 1. Loosen wing screw A. 1. Loosen screw A. 2. ... -
Page 32: Adjusting Remote Position
Invacare® Storm4 Series Adjusting Remote Position Height and Angle Adjustment The height / angle of the Maxx Resolve Remote Holder is adjusted via 3 mm Allen key two ball clamp assemblies on the swing away mechanism. The rear ball clamp assembly is attached to the remote tube, on the front ball clamp assembly the remote is mounted. Both ball clamp assemblies can be independently adjusted to position the remote at the height and / or angle that fits the user’s needs. 1. Loosen screws A. 2. Adjust component to desired position. ... -
Page 33: Adjusting Nucleus Midline Holder
5 Setup 5mm Allen key 6 mm Allen key 360° Angle Adjustment Height Adjustment 1. Use the cam wheel A to adjust the break-away tension to one of the four setting options: B hard C medium D easy E very easy 1. Loosen screws A in each ball clamp assembly. 2. Pivot / Rotate the ball clamp assemblies to desired angle / height. 5.3 Adjusting Nucleus Midline Holder 3. ... -
Page 34: Adjusting Depth Of Nucleus Midline Holder
Invacare® Storm4 Series Adjust it together with the armrest height. Refer to — Do not remove any small parts except to r eplace the corresponding armrest chapters, 5.9.1 Adjusting Armrest Height, joystick knob. page 41. — Do not leave removed joystick knob unattended. — Closely supervise children, pets or people with p hysical / Adjust the height of the nucleus midline holder only. Refer to mental disabilities. section below. 3/16 inch (5 mm) Allen key CAUTION! Risk of Injury or Damage Remaining burrs and missing end caps after m odifications ... - Page 35 5 Setup Rotating Remote (DLX-REM110, DLX-REM2XX, DLX-REM400) DLX-REM500 3/16 inch (5 mm) Allen key 1. Loosen screw A. 2. Rotate remote in clamp to desired position. 3. ...
-
Page 36: Adjusting Swing-Away Mechanism
Invacare® Storm4 Series ASL Components on Nucleus Midline Holder Only CAUTION! Risk of Injury or Damage 5/32 inch (4 mm) Allen key Remaining burrs and missing end caps after m odifications on rods, such as shortened rod, can l ead to injury or damage. 1. Loosen screw A. ... -
Page 37: Adjusting Swing-Away Display Holder
5 Setup Adjusting Display Orientation 5.5 Adjusting Swing-Away Display Holder The display can be turned through 360 degrees. 3 mm Allen key 18 mm wrench Adjusting Holder Height 1. Loosen screws A. 2. Position holder to desired height. 3. ... -
Page 38: Adjusting Extremity Control Joystick
Invacare® Storm4 Series Adjusting Position on Holder CAUTION! Risk of Injury or Damage 5/32 inch (4 mm) Allen key Remaining burrs and missing end caps after m odifications on rods, such as shortened rod, can l ead to injury or damage. — Deburr cut after cutting excessive length. — Re-install end cap after deburring. 1. Loosen screws A. ... -
Page 39: Adjusting Powered Chin Control
5 Setup 5.7 Adjusting Powered Chin Control 1. Loosen hand screw A. 2. Turn underpart of joystick to position WARNING! slot. Risk ofInjury or Death 3. ... -
Page 40: Adjusting Joysticks And Switches On Linkage
Invacare® Storm4 Series 5.7.2 Adjusting Joysticks and Switches on Linkage 4 mm Allen key 7/16 inch (11 mm) wrench Positioning Joysticks / Switches NOTICE! 1. Loosen screw A. If you tighten screws to an improper torque, they might 2. Move holder to desired position. either come loose or get damaged. 3. If necessary, loosen nut B. — Tighten the screws to a torque of 3 Nm ± 10 %. 4. Adjust holder orientation. ... -
Page 41: Adjusting Height Of Linkage Switch
5 Setup NOTICE! 5.8 Adjusting Head Array If you tighten ball joints to an improper torque, they might either come loose or get damaged. Adjusting Pad Position — Tighten the ball joints to a torque of 35 Nm. 5/32 inch (4 mm) Allen key 19 mm wrench (2x) 1. Loosen ball joint A. 1. Loosen screw A. 2. Position linkage. 2. ... -
Page 42: Adjusting Armrest Width
Invacare® Storm4 Series Flip-up Armrest 5.9.2 Adjusting Armrest Width 8 mm Allen key 1. Loosen thumb screw A. Depending on the side, the screw is accessible from the front 2. Adjust component to desired or the rear. position. 3. Tighten thumb screw. 1. Loosen screw A. ... -
Page 43: Changing Resistance (Flip-Up / Following Armrest)
5 Setup 5.9.4 Changing Resistance (Flip-up / Following Armrest) 5.9.6 Adjusting Arm Pad Position (Flip-Up Armrest) The movement of the flip-up and following armrests can be set to have 5 mm Allen key greater or less resistance. 5 mm Allen key 1. Put component in vertical position. 2. ... -
Page 44: Adjusting R Ea Headrest Or Neckrest
Invacare® Storm4 Series Adjusting Height It may be necessary to remove and modify the back cushion cover in order to access the headrest mounting holes on the back pan. An optional shim plate is available. It may be installed 1. Loosen hand screw A. between the clamp assembly and the back pan to provide 2. Adjust component to desired additional spacing / clearance on Posture Back and Deep position. ... -
Page 45: Adjusting Elan Headrest Hardware
5 Setup Installing 5.10.3 Adjusting Elan Headrest Hardware 2.5 mm Allen key Elan headrest hardware is highly adjustable. The illustration below shows the possible adjustment ranges of the joints. 4 mm Allen key 5 mm Allen key Upper multi-angle rotational pivot 1. Using hardware provided, align and 360° rotation install headrest clamp assembly into 80° tilt existing mounting holes in backrest Upper linkage pan A. 180° rotation 2. ... -
Page 46: Adjusting Backrest
Invacare® Storm4 Series Adjusting Depth and Angle 5.11.1 Adjusting Backrest Height The headrest can be further adjusted for depth and angle via the articulating hardware. The following section describes the procedures for adjusting the height of the backrest plate. 4 mm Allen key The sling back is only available in fixed heights of 48 and 54 cm. 5 mm Allen key 5 mm Allen key 1. Loosen screws and clamping levers of dual link adjustment assembly A and screws of upper and lower rotational 1. Loosen screws A and B. ... -
Page 47: Adjusting Backrest Angle
5 Setup The sling back is only available in two widths of 38-43 cm and 5.11.3 Adjusting Backrest Angle 48-53 cm and, under certain circumstances, must be replaced for a width adjustment. For a replacement description, see the CAUTION! service manual for this power wheelchair. The service manual can be ordered from Invacare. However, they contain Every change to the seat angle and the backrest instructions for specially trained service technicians and angle alters the geometry of the power wheelchair describe operations that are not intended for the end user. and affects its dynamic stability Note that if the sling back width is adjusted the backrest — For more information on stability, overcoming obstacles cushion must also be replaced. correctly, driving along inclines and slopes and the correct position of the backrest and seat angles, refer to 5 mm Allen key 6.5 Taking Obstacles, page 74 and 6.6 Driving up and down Gradients, page 76. CAUTION! 1. Loosen and remove screw A. ... -
Page 48: Adjusting Tension Adjustable Backrest Upholstery
Invacare® Storm4 Series Width-Adjustable Backrest 5.11.4 Adjusting Tension Adjustable Backrest Upholstery 6 mm Allen key 1. Remove upper backrest screw Remove backrest cushion A on both sides. ... -
Page 49: Adjusting Seat Depth
5 Setup The description of how the width is adjusted is contained in the service manual for this power wheelchair. The service manual can be ordered 6 mm Allen key from Invacare. However, they contain instructions for specially trained service technicians and describe operations that are not intended for 1. Loosen bottom backrest screws A on the end user. both sides. Adjusting Seat Depth Do not remove screws A. The seat depth has a major influence on the selection of the centre of gravity of the seat. This impacts its dynamic stability. 2. Adjust component to desired position. If you make a major change to the seat depth the centre of You can adjust seat depth steplessly. gravity of the seat must also be adjusted. See "Adjusting the Use scale B on seat as a guide. centre of gravity of the seat" in the service manual for this Ensure that same seat depth is set on power wheelchair. The service manual can be ordered from both sides. ... -
Page 50: Adjusting Lateral Trunk Support
Invacare® Storm4 Series Adjusting Height It is easier to adjust the angle of the seat when there is nobody sitting in the wheelchair. 5 mm Allen key 1. Loosen screws A. 2. Adjust component to desired position. 3. Tighten screws. Adjusting Depth 5 mm Allen key The figure shows the position of the spindle A for manual seat angle adjustment. 1. Loosen screws A. 2. Adjust component to desired 5.13 Adjusting Lateral Trunk Support position. 3. Tighten screws. Adjusting Width 1. Loosen knobs A. 2. Adjust component to desired position. 3. Tighten knobs. 1529686-AC... -
Page 51: Adjusting Hip Support With Quick Release
5 Setup Adjusting Angle 5.14 Adjusting Hip Support with Quick Release 5 mm Allen key Adjusting Position 5 mm Allen key 1. Loosen screws A. 2. ... - Page 52 Invacare® Storm4 Series Via bracket Adjusting Hip Pad Height You can adjust the hip pad height in two ways: 5 mm Allen key Via its mounting slots. Via its bracket. Via mounting slots 10 mm wrench Remove upper screw and friction cap A. 2. Remove small friction link B. ...
-
Page 53: Adjusting / Removing Tray
2. Adjust component to desired absorbance can be individually adjusted to a softer setting for more position (or remove it entirely). comfort and less shock absorbance or a harder setting for a harder 3. Tighten wing screw. suspension and more support. These adjustments should only be carried out by trained specialists. Contact your authorised Invacare provider. 1529686-AC... -
Page 54: Adjusting Suspension (Storm4 X-Plore Only)
Invacare® Storm4 Series It is easier to adjust the suspension and shock absorbance if there is no-one sitting in the chair. 5.16.1 Adjusting Suspension (Storm X-plore only) Move the lever A from "Active" ("open lock" symbol, B) to "Inactive" ("closed l ock" symbol, Softer Harder The suspension and shock absorbance are disabled. 5.16.3 Adjusting Shock Absorbance In the case of the Storm X-plore, the shock absorbance can be quickly and simply adjusted using a wheel on the springs: Adjusting Suspension Harder If you set the shock absorbance harder, you get a more direct 1. Rotate the adjustable spring plate A as shown in the illustration response to the ground for more sportive driving with a less in order to adjust the suspension harder. swinging chassis. The softer you set the shock absorbance, the softer the response Adjusting Suspension Softer to the ground is and the more comfortable the driving is. 1. Rotate the adjustable spring plate A as shown in the illustration in order to adjust the suspension softer. Fig. 5-5 Left Fig. -
Page 55: Centre-Mounted Legrests - Manually Adjustable
5 Setup The works setting for the wheel is the middle position. From here, the 5.17 Centre-mounted Legrests — Manually shock absorbance can be adjusted to be softer (-) or harder (+) in 10 levels in either direction. Adjustable 5.17.1 Adjusting Angle of Legrest Adjusting Harder Turn the wheel A to the plus sign, to 10 mm wrench set harder shock absorbance. 10 is the hardest level of shock absorbance. 1. Loosen the counternut A. 2. ... -
Page 56: Adjusting Calf Pad Width
Invacare® Storm4 Series 5.17.3 Adjusting Calf Pad Width 5.18 Central Legrests — Electrically Adjustable The calf pad of the legrest can be adapted to the user’s calf width by Consult the user manual for your remote for information about bending apart or together. electrical adjustment. The electric legrest can be lowered completely to assist getting out of the wheelchair. To do so, move your seat into the correct position by lowering the lifter or by means of a negative seat angle (tilted slightly to the front). 1. Bending the calf pad to the desired Misuse may destroy the legrest width. — Please read and carefully follow the instructions below. Getting in / out of the Wheelchair 1. Set the lifter and tilt to a comfortable position. ... -
Page 57: Vari-F Legrest
5 Setup Lifting up Footrests 1. Now you can adjust the angle of the Put your feet beside the footplates. legrest. 5.19 Vari-F Legrest Pull the lever A. 5.19.1 Swivelling Legrest Outward and / or Removing The footplates rise up automatically. The small unlocking button is located on the upper section of the legrest. When the legrest is unlocked, it can be swivelled inward or outward when getting into the wheelchair as well as being removed completely. 3. Let go the lever and put your feet on the footplates. Adjusting Angle of Legrest Risk of damage to the legrest 1. Press the unlocking button A and — Always make sure that the footplates are fully raised t o swivel the legrest outward. the uppermost position before adjusting the angle of the 2. Remove the legrest in an upward legrest. direction. —... -
Page 58: Setting Angle
Invacare® Storm4 Series 5.19.2 Setting Angle CAUTION! Risk of injury due to incorrect adjustment of the footrests and legrests Loosen the screw C. — Before and during every journey it is imperative t o ensure that the footrests contact neither the c astor wheels nor the ground. 6 mm Allen key 4. Set the desired angle. ... - Page 59 5 Setup 6. Re-tighten the counternut. The rubber stop can be screwed in or out B or pushed up or down C. Move the legrest to the desired position. Loosen the screw D and swivel the 8. Re-tighten the screw. legrest upward in order to access the rubber stop. Loosen the counternut E. Move the rubber stop to the desired position. 1529686-AC...
-
Page 60: Adjusting Length Of Legrest
Invacare® Storm4 Series 5.19.4 Adjusting Length of Legrest CAUTION! 1. Press the unlocking button A and Risk of injury due to incorrect adjustment of the swivel the legrest outward. footrests and legrests 2. Remove the legrest in an upward — Before and during every journey it is imperative t o direction. ensure that the footrests contact neither the c astor wheels nor the ground. ... -
Page 61: Setting End Stop Of Legrest
5 Setup 5.20.3 Setting End Stop of Legrest 10 mm wrench Hit the knob to release the locking mechanism. The end position of the legrest is determined by means of a rubber stop The rubber stop can be screwed in or out B or pushed up or down C. Set the desired angle. Loosen the locking knob D counter- clockwise at least one turn. Turn the knob clockwise to tighten it. 1529686-AC... - Page 62 Invacare® Storm4 Series Move the rubber stop to the desired position. Hit the knob to release the locking mechanism. 8. Re-tighten the counternut. Move the legrest to the desired position. Swivel the legrest upward in order to access the rubber stop. 10. Re-tighten the locking knob. Use the wrench to loosen the counternut E. 1529686-AC...
-
Page 63: Adjusting Length Of Legrest
5 Setup 5.20.4 Adjusting Length of Legrest 5.20.5 Adjusting Calf Pads Adjusting Height CAUTION! Risk of injury due to incorrect adjustment of the 4 mm Allen key footrests and legrests — Before and during every journey it is imperative t o ensure that the footrests contact neither the c astor wheels nor the ground. 1. Loosen the screws A. 2. Adjust to the desired position. ... -
Page 64: Adjusting Footrests
Invacare® Storm4 Series Unlocking and Swivelling Calf Pad Backward 5.20.6 Adjusting Footrests Adjusting Angle–adjustable Footrests 5 mm Allen key Press t he calf pad straight down. 1. Loosen both set screws on the footrest. 2. Adjust to the desired angle. ... -
Page 65: Adm Legrests
5 Setup CAUTION! 5.21 ADM Legrests Risk of crushing — Do not reach inside the swivelling range of the l egrest. 5.21.1 Swivelling Legrest Outward and / or Removing The small unlocking button is located on the upper section of the Raising legrest. When the legrest is unlocked, it can be swivelled inward or outward when getting into the wheelchair as well as being removed completely. 1. Pull the legrest upward until the 1. Press the unlocking button A and desired angle has been achieved. swivel the legrest outward. 2. Remove the legrest in an upward direction. Lowering 5.21.2 Setting Angle CAUTION! 1. ... -
Page 66: Adjusting Length Of Legrest
Invacare® Storm4 Series 5.21.3 Adjusting Length of Legrest 5.21.4 Adjusting Calf Pads Adjusting Height CAUTION! Risk of injury due to incorrect adjustment of the 4 mm Allen key footrests and legrests — Before and during every journey it is imperative t o ensure that the footrests contact neither the c astor wheels nor the ground. 1. Loosen the screws A. 2. Adjust to the desired position. ... -
Page 67: Adjusting Footrests
5 Setup Unlocking and Swivelling Calf Pad Backward 5.21.5 Adjusting Footrests Adjusting Angle–adjustable Footrests 5 mm Allen key Press t he calf pad straight down. 1. Loosen both set screws on the footrest. 2. Adjust to the desired angle. 3. ... -
Page 68: Powered Elevating Legrests (Ade Legrests)
Invacare® Storm4 Series ensure that the footrests contact neither the c astor 5.22 P owered Elevating Legrests (ADE Legrests) wheels nor the ground. 5.22.1 Swivelling Legrest Outward and / or Removing The electrically height-adjustable legrests are operated using the The small unlocking button is located on the upper section of the remote. Refer to the separate user manual for your remote for more legrest. When the legrest is unlocked, it can be swivelled inward or information. outward when getting into wheelchair as well as being removed 5.22.3 Adjusting Length of Legrest completely. CAUTION! Risk of injury due to incorrect adjustment of the footrests and legrests 1. Press the unlocking button A and ... -
Page 69: Adjusting Calf Pads
5 Setup Unlocking and Swivelling Calf Pad Backward 5.22.4 Adjusting Calf Pads Adjusting Height 4 mm Allen key Press t he calf pad straight down. 1. Loosen the screws A. 2. Adjust to the desired position. 3. Re-tighten the screws. Adjusting Depth The depth of the calf pad can be adjusted via the holding plate. ... -
Page 70: Adjusting Footrests
Invacare® Storm4 Series 5.22.5 Adjusting Footrests 5.23 Angle-adjustable Footboard Adjusting Angle–adjustable Footrests T25 Torx spanner 5 mm Allen key 5 mm Allen key 1. Loosen both set screws on the Release the screwsA with the Torx footrest. spanner and remove. 2. Adjust to the desired angle. ... -
Page 71: 6 Usage
6 Usage 6 Usage 6.3 Parking and Stationary 6.1 Driving When parking your power wheelchair or if your power wheelchair is stationary for a prolonged period: The maximum load capacity that is stated in the technical data only 1. Switch the power wheelchair’s power system off (ON-/OFF k ey). states that the system is designed for this mass in total. However, this does not mean that one can sit a person with this body weight in the 6.4 Getting in and out of Power Wheelchair power wheelchair without restrictions. Attention must be paid to the body proportions, such as height, weight distribution, abdominal belt, leg and calf strap and seat depth. These NOTICE! factors have a strong influence on driving features such as tilt stability — The armrest must be removed or swiveled up in order to and traction. The permissible axle loads in particular must be adhered get into or out of the power wheelchair from the side. to (refer to 11.1 Technical Specifications, page 100). It may possibly be necessary to carry out adaptations to the seat system. 6.4.1 Removing A rmrest for Side Transfer 6.2 Before Driving for First Time Depending on which side the remote is installed on, you need to ... -
Page 72: Swivelling Remote To Side
Invacare® Storm4 Series Following Armrest Maxx Resolve Swing-Away Remote Holder CAUTION! Risk of Injury or Damage Driving the power wheelchair and / or operating the power positioning functions with the remote in the swing-away 1. Pull knob A to unlock armrest support B position may cause collisions or unintended movement. from bearing plate C. ... -
Page 73: Swivelling Nucleus Midline Holder To Side
6 Usage NOTICE! 6.4.4 Swivelling Swing-Away Display Holder to Side Using the joystick to operate the swing away mechanism The swing-away display holder only locks in place when causes damage to the joystick. swivelled to its default position. — Do not use the joystick to operate the swing-away mechanism. 1. Push middle of remote A to operate swing-away mechanism. 2. ... -
Page 74: Information About Getting In And Out
Invacare® Storm4 Series 5. Depending on armrest type of your power wheelchair, detach 6.4.6 Information About Getting in and out armrest or swivel it up. 6. Now slide in or out of your power wheelchair. WARNING! Risk of serious injury or damage 6.5 Taking Obstacles Improper transfer techniques may cause serious injury or This power wheelchair is fitted with "SureStep" technology. When damage ... -
Page 75: Correct Way To Take Obstacles
6 Usage 4. Approach slowly and keep at consistent speed until rear wheels CAUTION! have also passed over obstacle. Risk of falling out of the power wheelchair and damage to the power wheelchair such as broken Ascending Ostacles with Curb Climber castors 1. Approach obstacle or curb slowly, head-on and at a right a ngle. —... -
Page 76: Driving Up And Down Gradients
Invacare® Storm4 Series CAUTION! 6.6 Driving up and down Gradients Braking distance is much longer on a downhill slope than on even terrain For information concerning the maximum safe slope, refer to 11.1 — Never drive down a slope that exceeds the rated slope Technical Specifications, page 100. (refer to 11.1 Technical Specifications, page 100). CAUTION! Risk of tipping over 6.7 Use on Public Roads — Only ever drive downhill at a maximum of 2/3 of the top speed. Avoid sudden changes of direction or abrupt If you wish to use your power wheelchair on public roads and lighting is required by national legislation, then your power wheelchair needs braking when driving on slopes. to be fitted with an appropriate lighting system. Additional — Always return the backrest of your seat or the seat tilt (if modifications may be required depending on the country. adjustable seat tilt is available) to an upright position before ascending slopes. We recommend that you Contact your Invacare provider if you have any questions. position the seat backrest or the seat tilt slightly to the 6.8 Using Foldable Antitippers rear before descending slopes. — Always lower the lifter (if fitted) to its lowest position ... -
Page 77: Pushing Power Wheelchair In Freewheel Mode
6 Usage Pushing the power wheelchair by hand may require more Fig. 6-1 Driving position Fig. 6-2 Parking position physical force than expected (more than 100 N). The necessary force nevertheless complies with the requirements of ISO 7176-14. The intended use of the freewheel mode is to maneuver the power wheelchair over short distances. The push handles or push bars support this function, but be aware that there might be some impairment between the feet of the assistant and the rear part of the power wheelchair. Folding A ntitipper down: 6.9.1 Disengaging Motors 1. Pull out the locking pin A to release the antitipper. CAUTION! 2. ... - Page 78 Invacare® Storm4 Series The motors may only be disengaged by an attendant, not by 6 or 10 km/h Motor: the user. Disengaging Right Motor (from View of User) This ensures that the motors are only disengaged if an attendant is available to secure the wheelchair and prevent 1. Switch off remote. unintended rolling. 2. Turn engaging turn knob of right motor A clockwise B. The engaging turn knobs for disengaging the motors are located on each motor. Motor is disengaged. 3. Turn engaging turn knob of right Disengaging the Motor (12 km/h Motor): motor A counterclockwise C. Motor is engaged. ...
-
Page 79: Replacing Backrest Cushion
6 Usage Installing Backrest Cushion 6.10 Replacing Backrest Cushion only for Matrx Elite backrests Removing Backrest Cushion 1. Attach hook and loop strip at 2. Fold cushion upwards. the lower backrest. 1. Loosen hook and loop strip 2. Lift cushion upwards. at the lower backrest. 3. Attach hook and loop strip at backrest handle. 3. Loosen hook and loop strip at backrest handle. 1529686-AC... -
Page 80: 7 Control System
system is switched back on. It can however take up to five minutes performance and longevity. Thus, range and running time of your until the controls system has cooled down enough for the drive to power wheelchair could initially increase with use. restore full performance again. Gel/AGM lead acid batteries do not have a memory effect as NiCd If the drive is stalled by an insurmountable obstacle, for example, a batteries. curb or similar which is too high, and the driver attempts driving for more than 20 seconds against this obstacle, the controls system 7.2.2 General Instructions on Charging automatically switches off to prevent the motors from being damaged. The status display shows a corresponding error code (refer to the user Follow the instructions listed below to ensure safe use and longevity of manual of your remote). By switching off and back on again, the error the batteries: code is cleared and the controls system is switched back on. Charge 18 hours prior to initial usage. A defective main fuse may be replaced only after checking the We recommend charging the batteries daily after every discharge entire controls system. A specialised Invacare provider must even after partly discharge, as well as each night over night. perform the replacement. You can find information on the fuse Depending on the level of discharge, it can take up to 12 hours type in 11.1 Technical Specifications, page 100. until the batteries are fully charged again. When the battery indicator reached the red LED range, charge the batteries for 16 hours minimum, neglecting the charge complete display! 1529686-AC... -
Page 81: Charging Batteries
WARNING! You cannot overcharge the batteries when using the charger Risk of explosion and destruction of batteries if the supplied with your power wheelchair, or a charger that has been wrong battery charger is used approved by Invacare. — Only ever use the battery charger supplied with your Protect your charger from sources of heat such as heaters and power wheelchair, or a charger that has been approved direct sunlight. If the battery charger overheats, charging current by Invacare. will be reduced and the charging process delayed. 7.2.3 Charging Batteries WARNING! Risk of electric shock and damage to the battery Refer to the user manuals for your remote and battery charger for the charger if it gets wet position of the charging socket and further information about charging — Protect the battery charger from water. the batteries. — Always charge in a dry environment. WARNING! Risk of injury if using the power wheelchair d uring ... -
Page 82: Disconnecting Power Wheelchair After Charging
7 Control System WARNING! 7.2.5 Storage and Maintenance Risk of electric shock and damage to the batteries Follow the instructions listed below to ensure safe use and longevity of — NEVER attempt to recharge the batteries by attaching the batteries: cables directly to the battery terminals. Always store the power wheelchair fully charged. Do not leave the batteries in a low state of charge for an WARNING! extended length of time. Charge a discharged battery as soon as Risk of fire and electric shock if a damaged extension possible. cable is used In case your power wheelchair is not used for a longer period of — Only ever use an extension cable if it is absolutely time (that is more than two weeks), the batteries must be necessary. In case you must use one, make sure it is in charged at least once a month to maintain a full charge and good condition. always be charged before use. Avoid hot and cold extremes when storing. We recommend to 1. Switch off power wheelchair. store power wheelchair at a temperature of 15 °C. 2. Connect battery charger to charger socket. Gel and AGM batteries are maintenance-free. Any performance issues should be handled by a properly trained power wheelchair ... -
Page 83: Instructions On Using Batteries
Invacare® Storm4 Series To avoid damaging the batteries, never allow them to be fully 7.2.6 Instructions on Using Batteries discharged. Do not drive on heavily discharged batteries if it is not absolutely necessary, as this will strain the batteries unduly CAUTION! and shorten their life expectancy. Risk of damaging the batteries. The earlier you recharge the batteries, the longer they live. — Avoid ultra-deep discharges and never drain your The depth of discharge affects the cycle life. The harder a battery batteries completely. has to work, the shorter is its life expectancy. Examples: One deep discharge stresses the same as 6 normal cycles Pay attention to the Battery Charge Indicator! Charge the (green / orange display off). batteries when the Battery Charge Indicator shows that battery The battery indicator or number of LED can vary charge is low. How fast the batteries discharge depends on many depending on the remote type. circumstances, such as ambient temperature, condition of the The battery life is about 500 cycles at 80 % discharge (first 4 surface of the road, tire pressure, weight of the driver, way of LED off / battery bar displays red), or about 5000 cycles at ... -
Page 84: General Instructions On Handling Batteries
7 Control System CAUTION! 7.2.8 General Instructions on Handling Batteries Corrosion and burns from acid leakage if batteries The batteries reach their end of life when the drive range is are damaged significantly smaller than usual. Contact your provider or service — Remove clothes that have been soiled by acid technician for details. immediately. Always have your batteries installed by a properly trained power After contact with skin: wheelchair technician or a person with adequate knowledge. — Immediately wash affected area with lots of water. After contact with eyes: They have the necessary training and tools to do the job safely — Immediately rinse eyes under running water for several and correctly. minutes; consult a physician. 7.2.9 Handling Damaged Batteries Correctly Disposing of Dead or Damaged Batteries Correctly If the batteries are defective or damaged, t he power wheelchair must not be used under any circumstances. Contact your provider regarding Batteries are following special disposal rules. Your provider has all a repair or exchanging the batteries. information available to safely exchange and dispose the defect batteries. Damaged batteries shall only be handles by a properly trained power wheelchair technician. WARNING! Risk of burns —... -
Page 85: 8 Transport
8 Transport 8 Transport wheelchair or removed from the power wheelchair and secured in the vehicle during travel. 8.1 Transport — General Information — If a tray is fitted, always remove it before t ransporting the power wheelchair. WARNING! Risk of death or serious injury to the power wheelchair user and potentially any other nearby occupant of the vehicle, if a power wheelchair is secured using a tie-down system available from a NOTICE! third party supplier and the unladen weight of the — The vehicle should have the floor strength to take the power wheelchair exceeds the maximum weight for combined weight of the occupant, the power wheelchair which the tie-down system is certified and accessories / options. — Make sure the weight of the power wheelchair does not exceed the weight for which the tie-down system is 8.2 Transferring Power Wheelchair to Vehicle certified. Consult the tie-down manufacturer's documentation. WARNING! — If you are unsure how much your power wheelchair Power wheelchair is at risk of tipping over if weighs, then you must have it weighed using calibrated transferred to a vehicle while user is still seated in scales. power wheelchair —... -
Page 86: Use Power Wheelchair As Vehicle Seat
Invacare® Storm4 Series WARNING! — Alternatively, a platform lift may be used. Risk of injury and damage to power wheelchair — Ensure that total weight of power wheelchair including If power wheelchair must be transferred to vehicle via a lift, user does not exceed maximum permitted total weight when remote is turned on, there is a risk that device may act for ramp or platform lift. — Power wheelchair should always be transferred to erratically and fall off lift. — Before transferring power wheelchair via lift, turn off vehicle with backrest in upright position, seat lifter product and disconnect either bus cable from remote or lowered and tilt in upright position (refer to 6.6 Driving batteries from system. up and down Gradients, page 76). ... - Page 87 o r components since this can affect the label: following label: crashworthiness of the power wheelchair, and it can also change the performance of the power wheelchair i n normal use. If it is considered necessary to make these kinds of a lterations, Invacare shall be consulted. — Only use spill-proof sealed batteries approved by In order to use a power wheelchair as a vehicle seat, it must be fitted Invacare. with tie-down points to enable anchoring in the motor vehicle. These accessories / options may be included in the standard scope of power — It is imperative that the power wheelchair is inspected ...
-
Page 88: How The Power Wheelchair Is Anchored In A Vehicle
Invacare® Storm4 Series 1. Invacare tests with tie-down systems, that meet the requirements of ISO 10542-1 and the curb weight of the power wheelchair. For information concerning the curb weight, refer to 11.1 Technical Specifications, page 100. 8.3.1 How the Power Wheelchair is Anchored in a Vehicle The power wheelchair is fitted with tie-down points. Snap hooks or belt loops can be used for fixation. CAUTION! Secure the forward-facing power wheelchair with the tie-down There is a risk of injury if the power wheelchair is not system belts at the tie-down points at the front A and tie-down properly secured during use as a vehicle seat points at the rear B. — Always use a tie-down system suitable for the combined 2. Secure the power wheelchair by tensioning the belts in weight of occupant and power wheelchair. accordance with the tie-down system manufacturer's user — If possible, the user should always leave the power manual. ... -
Page 89: Securing User In Power Wheelchair
8 Transport CAUTION! 8.3.2 Securing User in Power Wheelchair Risk of injury if the user is not properly secured within the power wheelchair CAUTION! — Safety restraint devices must only be used when the Risk of injury during use of the power wheelchair a s wheelchair user’s weight is 23 kg or more. a vehicle seat if a headrest is wrongly a djusted or — Even if the power wheelchair is fitted with a posture belt not installed or any other power wheelchair integrated belt system, This can cause the neck to be hyperextended d uring this is no substitute for a proper safety belt which collisions. complies with ISO 10542 in the transport vehicle. Always —... - Page 90 Invacare® Storm4 Series CAUTION! Risk of injury if the user is not properly secured within the power wheelchair (continued) — Any wheelchair anchored occupant restraint i.e. 3-point belt, harness or postural supports (lap straps, lap belts) should not be used or relied on for occupant restraint in a moving vehicle. Always use a vehicle anchored and certified occupant restraint system instead. — Care should be taken when applying the occupant restraint to position the seatbelt buckle so that the The pelvic belt should be positioned in the area between the user's release button will not be contacted by power pelvis and thighs so that it is unobstructed and not too loose. The ideal wheelchair components during transport and during a angle of the pelvic belt to the horizontal is between 45° and 75°. The maximum permissible angle is between 30° and 75°. The angle should crash never be less than 30°! — Safety belts must be in contact with the user's body. They must not be held at a distance from the user's body using parts of the power wheelchair such as armrests or wheels. The safety belt installed in the transporting vehicle should be applied as shown in the illustration above. 1) centre line of the body 2) centre of the sternum...
-
Page 91: Transporting Power Wheelchair Without Occupant
8 Transport 8.4 Transporting Power Wheelchair Without Occupant CAUTION! Risk of injury — If you are unable to fasten your power wheelchair securely in a transport vehicle, Invacare recommends that you do not transport it. Your power wheelchair may be transported without restrictions, whether by road, rail or by air. Individual transport companies have, however, guidelines which can possibly restrict or forbid certain transport procedures. Please ask the transport company regarding each individual case. Before transporting your power wheelchair, make sure the motors are engaged and that the remote is switched off. Invacare strongly recommends that you additionally disconnect the battery cable from the power module, refer to 9.7 Disconnect Power Module, page 97. Invacare strongly recommends securing the power wheelchair to the floor of the transporting vehicle. ... -
Page 92: 9 Maintenance
9 Maintenance 9 Maintenance 9.1 Maintenance Introduction The term “Maintenance“ means any task performed to ensure that a medical device is in good working order and ready for use as intended. Maintenance encompasses different areas, such as everyday care and cleaning, inspection checks, repair tasks and refurbishment. It is recommended, to have your power wheelchair checked once a year by an authorised Invacare provider to maintain its driving safety and roadworthiness. 9.2 Inspection Checks The following tables list inspection checks that should be performed by the user and their intervals. If the power wheelchair fails to pass one of the inspection checks, refer to the chapter indicated or contact your authorised Invacare provider. A more comprehensive list of inspection checks and instructions for maintenance work can be found in the service manual for this device, which can be obtained from Invacare. That manual, however, is intended to be used by trained and authorised service technicians, and describes tasks which are not intended to be performed by the user. 1529686-AC... -
Page 93: Before Each Use Of Power Wheelchair
Invacare® Storm4 Series 9.2.1 Before Each Use of Power Wheelchair Item Inspection Check If Not Passed Screwed connections Check all connections, such as backrests and wheels, for tight fit. Contact your provider. Signal horn Check for correct function. Contact your provider. Lighting system Check that all lights, such as turn indicators, head lamps and tail lights, are Contact your provider. functioning correctly. Batteries Charge the batteries Make sure the batteries are charged. See the user manual provided with your (refer to 7.2.3 Charging remote for a description of the battery charge indicator. Batteries, page 81). 9.2.2 Weekly Item Inspection Check If Not passed Armrests / side parts Check that armrests are firmly attached in their Tighten the screw or clamping lever that holds the holders and do not wobble. armrest. Contact your provider. Tyres (pneumatic) Check that the tyres are undamaged. Contact your provider. Check that the tyres are inflated to the correct ... -
Page 94: Monthly
9 Maintenance 9.2.3 Monthly Item Inspection Check If Not Passed All upholstered parts Check for damage and wear. Contact your provider. Removable legrests Check whether legrests can be fixed securely and whether loosening mechanism is Contact your provider. properly operable. Contact your provider. Check that all adjustment options function properly. Castors Check that castors rotate and swivel freely. Contact your provider. Drive wheels Check that drive wheels rotate without wobbling. It is easiest to have someone Contact your provider. stand behind power wheelchair and observe drive wheels as you drive away from them to do this. Electronics and Contact your provider. Check all cables for damage and all connecting plugs for snug fit. connectors 1529686-AC... -
Page 95: Wheels And Tyres
Invacare® Storm4 Series 9.3 Wheels and Tyres Dealing With Wheel Damages In case of having a damaged wheel, contact your provider. Because of safety reasons do not have the wheel repaired by yourself or by not authorised persons. Dealing With Pneumatic Tyres NOTICE! Risk of damage to tyre and rim Never drive with too low tyre pressure, this could result in damage to tyre. If tyre pressure is exceeded rim could be damaged. — Inflate tyres to recommended pressure. Use tyre gauge to check pressure. Check weekly that the tyres are inflated to the correct pressure, refer 9.4 Short-Term Storage to 9.2.1 Before Each Use of Power Wheelchair, page 93. In case a serious fault is detected, a number of safety mechanisms are For recommended tyre pressure see inscription on tyre / rim or built into your power wheelchair and will protect it. The power module contact Invacare. Compare table below for conversion. prevents your power wheelchair from driving. When the power wheelchair is in such a condition and while waiting for repair: 1. Switch off power. ... -
Page 96: Long-Term Storage
9 Maintenance Position the power wheelchair on flooring that is not discoloured 9.5 Long-Term Storage by contact with tyre rubber. In case your power wheelchair is not used for a longer period of time, Preparing Power Wheelchair for Use you need to prepare it for storage to ensure a longer life for your Re-connect the battery supply to the power module. power wheelchair and batteries. The batteries must be charged before use. Storing Power Wheelchair and Batteries Have the power wheelchair checked by an authorised Invacare We recommend to store the power wheelchair at a temperature provider. of 15 °C, avoid hot and cold extremes when storing to ensure a 9.6 Opening Rear Shroud long service life of the product and batteries. The components are tested and approved for greater Removing Rear Shroud temperature ranges as detailed below: Allowable temperature range to store the power 1. Loosen and remove two hand wheelchair is -40 °C up to 65 °C. -
Page 97: Disconnect Power Module
Invacare® Storm4 Series CAUTION! 9.7 Disconnect Power Module Risk of Electric Shock and Product Damage — Switch off the device and disconnect from mains, if applicable. — When cleaning electronic components consider their Remove the rear cover, refer to 9.6 protection class regarding water ingress. Opening Rear Shroud, page 96. — Make sure that no water splashes to the plug or the wall outlet. — Do not touch the power socket with wet hands. NOTICE! Wrong fluids or methods can harm or damage the product. Remove the battery cable A from the — All cleaning agents and disinfectants used must be power module. effective, compatible with one another and must protect the materials they are used to clean. ... -
Page 98: Cleaning Intervals
9 Maintenance 2. Wipe down the individual parts using a cloth or soft brush, 9.8.2 Cleaning Intervals ordinary household cleaning agents (pH = 6 - 8) and warm water. 3. Rinse the parts with warm water. NOTICE! Regular cleaning and disinfection enhance smooth 4. Thoroughly dry the parts with a dry cloth. operation, increases the service life and prevents Car polish and soft wax can be used on painted metal surfaces contamination. to remove abrasions and restore gloss. Clean and disinfect the product: Cleaning Upholstery — regularly while in use, — before and after any service procedure, For cleaning upholstery refer to the instructions on the labels of the — when it has been in contact with any body fluids, seat, cushion and backrest cover. — before using it for a new user. If possible, always overlap hook and loop strips (the self- gripping parts) when washing, to minimize lint and thread 9.8.3 Cleaning build-up on hook strips and prevent damage to upholstery fabric by these. NOTICE! — The product does not tolerate cleaning in automatic 9.8.4 Disinfection Instructions washing plants, with high-pressure cleaning equipment Method: Follow the application notes for the used disinfectant and or steam. wipe-disinfect all accessible surfaces. -
Page 99: 10 After Use
10 After Use 10.2 Disposal 10.1 Reconditioning WARNING! Environmental Hazard This product is suitable for reuse. To recondition the product for a new Device contains batteries. user, carry out the following actions: This product may contain substances that could be harmful Inspection according to service plan, refer to the service manual, to the environment if disposed of in places (landfills) that which is available through Invacare. are not appropriate according to legislation. Cleaning and disinfection, refer to 9.8 Cleaning and Disinfection, — DO NOT dispose of batteries in normal household waste. page 97. — DO NOT throw batteries into a fire. Adaptation to the new user, refer to 5 Setup, page 29. — Batteries MUST be taken to a proper disposal site. The Make sure that the user manual is handed over with the product. return is required by law and free of charge. ... -
Page 100: 11 Technical Data
11 Technical Data 11 Technical Data 11.1 Technical Specifications The technical information provided hereafter applies to a standard configuration or represents maximum achievable values. These can change if accessories / options are added. The precise changes to these values are detailed in the sections for the respective accessories / options. Note that in some cases the measured values may vary up to ± 10 mm. Permissible Operating and Storage Conditions Temperature Range for Operation -25 °C … +50 °C According to ISO 7176-9: 15 °C Recommended Storage Temperature: Temperature Range for Storage -25 °C … +65 °C with batteries According to ISO 7176-9: -40 °C … +65 °C without batteries Electrical System Motors 340 W (conventional motors) Batteries 2 x 12 V/73.5 Ah (C20) leakproof/gel Main Fuse 80 A IPX4 Degree of Protection Charging Device 8 A ± 8 % Output Current 10 A ... - Page 101 Invacare® Storm4 Series Drive Wheel Tyres 3.00 - 8 inch pneumatic, puncture- Trelleborg 8x3.00 pneumatic or puncture- Tyre Type protected protected or puncture-proof The recommended maximum tyre pressure in bar or kpa is marked on the side wall of the tyre or the rim. If more than one value is listed, the lower one in the corresponding units applies. Tyre Pressure (Tolerance = -0.3 bar, 1 bar = 100 kpa) Castor Tyres Tyre Type 3.00 - 6 pneumatic, puncture-protected or puncture-proof The recommended maximum tyre pressure in bar or kpa is marked on the side wall of the tyre or the rim. If more than one value is listed, the lower one in the corresponding units applies. Tyre Pressure (Tolerance = -0.3 bar, 1 bar = 100 kpa) Driving Characteristics 6 km/h 10 km/h Speed 12 km/h ...
- Page 102 11 Technical Data Driving Characteristics 12 km/h, 13 km/h: 10 km/h: 6 km/h: 100 mm (with kerb 95 mm (with kerb 110 mm (with kerb Max. Climbable Obstacle Height climber) climber) climber) 60 mm (without kerb 70 mm (without kerb 85 mm (without kerb climber) climber) climber) Turning Diameter 1770 mm Turning Width 1100 mm 1500 mm Pivot Width 34 km (Storm , 6 km/h) Drive Range in Accordance With ISO 26 km (Storm , 10 km/h) 7176-4...
- Page 103 Invacare® Storm4 Series Seat Type Dimensions in Accordance With ISO 7176–15 RECARO Modulite 960 mm 1130 mm Stowage Height 65 mm Ground Clearance 400 - 650 mm (Storm Seat-to-Floor Height (With Lifter) 440 - 690 mm (Storm X-plore) Seat-to-Floor Height (Without Lifter) 450/480 mm 380 mm (380 - 430 mm) 430 mm (430 - 480 mm) 490 - 530 mm Seat Width 480 mm (480 - 530 mm) 530 mm (530 - 580 mm) ...
- Page 104 11 Technical Data Seat Type Dimensions in Accordance With ISO 7176–15 RECARO Modulite Armrest Depth 325 mm 398 mm Horizontal Location of Axle 145 mm 150 mm 0° - 25° Powered Tilt 0° - 9° Manual Tilt Footrests and Legrests 290 – 460 290 – 460 Length [mm] Length [mm] +70° ... 0° +80°... 0° Vari F Angle Standard 80°...
- Page 105 Invacare® Storm4 Series Weight Recaro, Modulite Kerb Weight on average 173 kg Component Weights Batteries approx. 24.5 kg per battery Payload Recaro, Modulite Max. Payload 150 kg Axle Loads Max. Front Axle Load 200 kg Max. Rear Axle Load 300 kg 1 IPX4 classification means that the electrical system is protected against spray water. 2 Static stability according to ISO 7176-1 = 9° (15.8 %) Dynamic stability according to ISO 7176-2 = 6° (10.5 %) 3 Note: The drive range of a mobility device is strongly influenced by external factors, such as the speed setting of the wheelchair, the charging state of the batteries, surrounding temperature, local topography, road surface characteristics, tyre pressure, weight of user, drive style and use of batteries for lighting, servos etc. The specified values are theoretical maximum achievable values measured according to ISO 7176-4. 4 Measured without seat cushion 5 Distance between backrest reference plane and most forward part of armrest assembly 6 Horizontal distance of wheel axle from intersection of loaded seat and backrest reference planes 7 Dependent on the seat dimensions. See the manufacturer's data on www.ajstole.dk...
-
Page 106: 12 Service
12 Service 12 Service 12.1 Inspections Performed It is confirmed by stamp and signature that all jobs listed in the inspection schedule of the service and repair instructions have been properly performed. The list of the inspection jobs to be performed can be found in the service manual which is available through Invacare. Delivery Inspection 1st A nnual Inspection Stamp of authorised provider / Date / Signature Stamp of authorised provider / Date / Signature 2nd Annual Inspection 3rd Annual Inspection Stamp of authorised provider / Date / Signature Stamp of authorised provider / Date / Signature 1529686-AC... - Page 107 Invacare® Storm4 Series 4th Annual Inspection 5th Annual Inspection Stamp of authorised provider / Date / Signature Stamp of authorised provider / Date / Signature 1529686-AC...
-
