IMPORTANT INSTRUCTIONS
AND OPERATING MANUAL

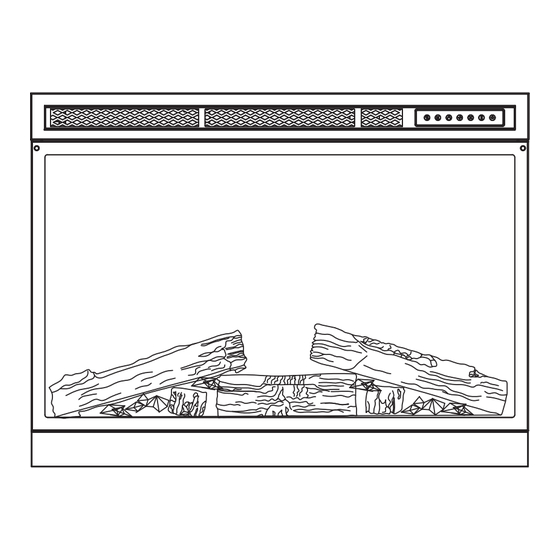

ELECTRIC FIREPLACE
Read and understand this entire owner's manual, including all safety
information before plugging in or using this appliance. Failure to do so
WARNING
could result in fire, electric shock, or serious personal injury.
8:30 a.m. - 5:30 p.m. P.S.T.
CERTIFIED UNDER CANDIAN AND AMERICAN NATIONAL STANDARDS: ETL
Model No.: RFI-36/39BH
ltem No.: 936/939BH
NO VENTING REQUIRED
Monday to Friday

Advertisement

loading
Need help?

Need help?

Do you have a question about the RFI-36BH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ROWAN ELECTRIC APPLIANCE RFI-36BH

Summary of Contents for ROWAN ELECTRIC APPLIANCE RFI-36BH

  • Page 1 IMPORTANT INSTRUCTIONS AND OPERATING MANUAL ELECTRIC FIREPLACE Model No.: RFI-36/39BH ltem No.: 936/939BH NO VENTING REQUIRED Read and understand this entire owner’s manual, including all safety information before plugging in or using this appliance. Failure to do so WARNING could result in fire, electric shock, or serious personal injury. 8:30 a.m.
  • Page 3 Table of Contents IMPORTANT SAFETY INSTRUCTIONS................................1 1.0 PRODUCT OVERVIEW ....................................3...

  • Page 6: Product Overview

    1.0 PRODUCT OVERVIEW 1.1 PACKING LIST Description Quantity Electric Fireplace 1 pc Manual 1 pc Remote Control 1 pc Decorative Stuff Varies Simulated Charcoal 5 pcs AAA Battery 2 pcs IMPORTANT INSTRUCTIONS AND OPERATING MANUAL ELECTRIC FIREPLACE Model No.: RFI-36/39BH ltem No.: 936/939BH NO VENTING REQUIRED Read and understand this entire owner’s manual, including all safety...
  • Page 7 1.2 DIMENSIONS Model No. RFI-36/39BH Recessed Appliance Description 120VAC Voltage Watts Max 1500W Amps 12.5 AMP 5100BTU BTUs LISTTING APPROVALS This appliance has been tested in accordance with the ETL Standards for fixed and location-dedicated electric room appliances in the United States and Canada. If you need assistance during installation, please contact your local dealer.
  • Page 9 3.3 INSTRUCTIONS FOR EMBEDDING...
  • Page 10 Step �. Install The Fixing Plate Unscrew The Panel Remove the 2 thumb screws (M5) by hand and take down the panel. Unscrew the screws (ST . * ) at the bottom corners of the back side of the electric fireplace (Do not discard them). Then install the fixing plate to the upper beam of the electric Note: To prevent the panel from toppling fireplace with...
  • Page 11 Step �. Secure The Fireplace Put in The Simulated Charcoals Install the fixing accessories to the bottom corners of the Place the 5 pieces of simulated charcoals in the way as shown back side of the fireplace with screws (ST . * ) which are in the figure on the bottom tray in the front of the fireplace.
  • Page 12 Step �. Put In The Simulated Charcoals Refasten The Glass Frame And The Decoration Stuff Align the glass frame with the 4 protruding sections at the bottom Place the pieces of simulated charcoals and the of the fireplace, then insert and install decorative stuff...
  • Page 13 4.0 OPERATION INSTRUCTIONS 4.0 OPERATION INSTRUCTIONS CONTROL PANEL 4.1 CONTROL PANEL Heater Flame Dimmer Color B Color A Timer Power Speed ON/OFF (Note: There is a transparent screen protector on the panel to avoid scratches. You can choose to keep or take it off according to your preferences.) (Note: There is a transparent screen protector on the panel to avoid scratches.
  • Page 14 REMOTE PANEL FUNCTION POWER Turn the appliance ON/OFF. Control the flame and flame bed brightness. 5 Settings: ( L1-L2-L3-L4-L5) Flame dims from L1 to L5. L5 is the brightest setting. DIMMER NOTE: Press the "DIMMER" button for 6 seconds, the appliance will go into sleep mode.

  • Page 15: Troubleshooting Guide

    4.3 REMOTE CONTROL Two AAA-size batteries are included in the package, please put the batteries in the remote control as shown below before using. Remote control (rare view) Batteries (AAA battery) 5.0 TROUBLE SHOOTING GUIDE PROBLEM SOLUTION 1. Make sure the Power Switch on the control panel is turned on before operation. The control panel 2.
  • Page 16 Make sure the power cord is plugged into a 3.Heater is unplugged from wall functioning and properly grounded 15 Amp 120V AC outlet. electrical outlet. 4. Power cord or power plug is Contact a qualified electrician to replace the power damaged.
  • Page 17 4. The air inlet or air outlet is Leave adequate space around the unit. Remove blocked completely. the blockage close to the air outlet. 1. The heater system is Check the air inlet and outlet. Turn off the power overheated. Temperature Limit switch and unplug it.

  • Page 18: Maintenance

    NOTE: For the most of the functional problems, you can unplug the unit,wait for 15 minutes, and plug it in again. The machine will reset to the initial status (original system state). If the problem is still not solved, feel free to contact us via call customer service number: 213-4467172 and/or 661-4358826.
  • Page 20 661-4358826 (8:30am - 5:30pm P.S.T.) SE REQUIERE PRUEBA DE COMPRA CON FECHA PARA SERVICIO BAJO GARANTÍA. Address: ROWAN ELECTRIC APPLIANCE LLC 28407 Ascent Way, Address: ROWAN ELECTRIC APPLIANCE LLC Santa Clarita, CA 91350 Phone:213-4467172 or 661-4358826 8:30 a.m. - 5:30 p.m. P.S.T.
