IMPORTANT INSTRUCTIONS
AND OPERATING MANUAL

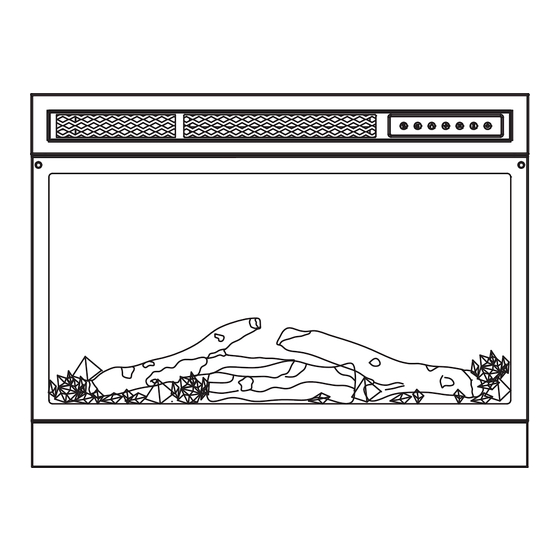

ELECTRIC FIREPLACE
WARNING
Address: ROWAN ELECTRIC APPLIANCE LLC 28407 Ascent Way, Santa Clarita, CA 91350
8:30am-5:30pm P.S.T.
CERTIFIED UNDER CANDIAN AND AMERICAN NATIONAL STANDARDS: ETL
Model No.: RFI-28BH
ltem No.: 928BH
NO VENTING REQUIRED
Read and understand this entire owner's manual, including all safety
information before plugging in or using this appliance. Failure to do so
could result in fire, electric shock, or serious personal injury.
Phone: 213-4467172 or 661-4358826
Monday to Friday
Advertisement
Table of Contents
Related Manuals for ROWAN ELECTRIC APPLIANCE RFI-28BH
Summary of Contents for ROWAN ELECTRIC APPLIANCE RFI-28BH
- Page 1 Failure to do so WARNING could result in fire, electric shock, or serious personal injury. Address: ROWAN ELECTRIC APPLIANCE LLC 28407 Ascent Way, Santa Clarita, CA 91350 Phone: 213-4467172 or 661-4358826 8:30am-5:30pm P.S.T.
-
Page 2: Table Of Contents
Table of Contents IMPORTANT SAFETY INSTRUCTIONS................................2 1.0 PACKING LIST......................................4-5 1.1 DIMENSIONS......................................5 2.0 ELECTRICAL INSTALLATION NOTES................................6 2.1 GENERAL INSTRUCTIONS.................................. 6 3.0 INSTALLATION INSTRUCTIONS................................7-10 3.1 UNPACKING AND TESTING APPLIANCE WALL..........................7 3.2 GROUNDING APPLIANCE..................................7 3.3 ASSEMBLY......................................7-10 4.0 OPERATING INSTRUCTIONS................................11-13 4.1 CONTROL PANEL....................................11 4.2 REMOTE CONTROL OPERATION...............................11-12 4.3 REMOTE CONTROL..................................... -
Page 5: Packing List
1.0 PACKING LIST Description Quantity Electric Fireplace 1 pc Manual 1 pc Remote Control (Battery included) 1 pc Decorative Stuff Varies Simulated Charcoal 3 pcs AAA Battery 2 pcs ① ② ③ ④ ⑥ ⑤... -
Page 6: Dimensions
1.1 DIMENSIONS Model No. RFI-28BH Recessed Appliance Description 120VAC Voltage Watts Max 1500W Amps 12.5 AMP 5100BTU BTUs LISTTING APPROVALS This appliance has been tested in accordance with the ETL Standards for fixed and location-dedicated electric room appliances in the United States and Canada. If you need assistance during installation, please contact your local dealer. -
Page 9: Secure The Fireplace
Step �. Install The Fixing Plate Unscrew the � screws (ST�.�*��) at the bottom corners of the back side of the electric fireplace (Do not discard them). Then install the fixing plate to the upper beam of the electric fireplace with � screws (ST�.�*��). Note: the fixing plate is attached in the package of mantel. - Page 10 Step �. Remove the Glass Frame Unscrew the � screws (M�) at the top corners of the glass frame (Do not discard them). Then take the entire glass frame out horizontally. Step �. Put In The Simulated Charcoals And The Decoration Stuff Place the �...
-
Page 11: Installation Completed
Step �. Refasten The Glass Frame Align the glass frame with the � protruding sections at the bottom of the fireplace, then insert and install the frame with � screws (M�) which are unscrewed in Step �. Check the alignment of the glass frame and securely tighten the screws. -
Page 12: Operating Instructions
4.0 OPERATION INSTRUCTIONS 4.0 OPERATION INSTRUCTIONS CONTROL PANEL 4.1 CONTROL PANEL Heater Flame Dimmer Color B Color A Timer Power Speed ON/OFF (Note: There is a transparent screen protector on the panel to avoid scratches. You can choose to keep or take it off according to your preferences.) (Note: There is a transparent screen protector on the panel to avoid scratches. - Page 13 REMOTE PANEL FUNCTION POWER Turn the appliance ON/OFF. Control the flame and flame bed brightness. 5 Settings: ( L1-L2-L3-L4-L5) Flame dims from L1 to L5. L5 is the brightest setting. DIMMER NOTE: Press the "DIMMER" button for 6 seconds, the appliance will go into sleep mode.
-
Page 14: Remote Control
4.3 REMOTE CONTROL Two AAA-size batteries are included in the package, please put the batteries in the remote control as shown below before using. Remote control (rare view) Batteries (AAA battery) 5.0 TROUBLE SHOOTING GUIDE PROBLEM SOLUTION 1. Make sure the Power Switch on the control panel is turned on before operation. The control panel 2. - Page 15 Make sure the power cord is plugged into a 3.Heater is unplugged from wall functioning and properly grounded 15 Amp 120V AC outlet. electrical outlet. 4. Power cord or power plug is Contact a qualified electrician to replace the power damaged.
- Page 16 4. The air inlet or air outlet is Leave adequate space around the unit. Remove blocked completely. the blockage close to the air outlet. 1. The heater system is Check the air inlet and outlet. Turn off the power overheated. Temperature Limit switch and unplug it.
-
Page 17: Maintenance
NOTE: For the most of the functional problems, you can unplug the unit,wait for 15 minutes, and plug it in again. The machine will reset to the initial status (original system state). If the problem is still not solved, feel free to contact us via call customer service number: 213-4467172 and/or 661-4358826. - Page 19 213-4467172 661-4358826 (8:30am - 5:30pm P.S.T.) SE REQUIERE PRUEBA DE COMPRA CON FECHA PARA SERVICIO BAJO GARANTÍA. Address: ROWAN ELECTRIC APPLIANCE LLC 28407 Ascent Way, Santa Clarita, CA 91350 8:30am-5:30pm P.S.T. Monday to Friday...
