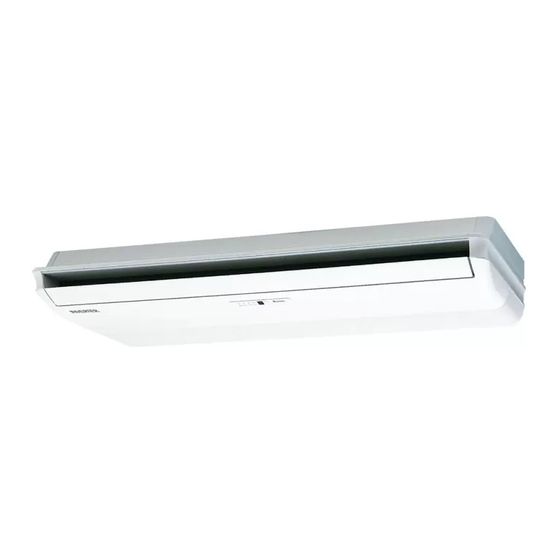

Indoor U nit
R Y-30E
S E R IE S
R Y-36E
S E R IE S
R Y-45E
S E R IE S
R Y-54E
S E R IE S
Outdoor U nit
R O-30E
S E R IE S
R O-36E
S E R IE S
R O-45E
S E R IE S
R O-54E
S E R IE S
K E E P T HIS OPE R AT ION M A N U A L
FOR FU T U R E R E FE R E N CE
OP E R AT ING MA NUA L
P/N 9366992004
Advertisement
Table of Contents
Related Manuals for Fuji Electric RY-30E Series
Summary of Contents for Fuji Electric RY-30E Series
- Page 1 OP E R AT ING MA NUA L A IR CON DIT ION E R CE ILIN G S U S PE N S ION T Y PE Indoor U nit R Y-30E S E R IE S R Y-36E S E R IE S R Y-45E S E R IE S...
-
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ........1 SWING OPERATION ..........11 FEATURES AND FUNCTIONS ......2 ENERGY SAVE OPERATION ....... 12 NAME OF PARTS ........... 3 MANUAL AUTO OPERATION ......12 PREPARATION ............5 CLEANING AND CARE ........13 OPERATION ............6 TROUBLESHOOTING .......... -
Page 3: Features And Functions
FEATURES AND FUNCTIONS AUTOMATIC OPERATION G COOLING MODEL Merely press the START/STOP button, and the unit will begin automatic operation in the Cooling or Dry mode as appropriate, in accordance with the thermostat setting and the actual temperature of the room. G HEAT &... -
Page 4: Name Of Parts
NAME OF PARTS Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). Fig. 1 MANUAL AUTO SWING SWING TIMER OPERATION Fig. 2 Fig. 4 Electrical Breaker This breaker is installed during Fig. 3 the electrical installation. Fig. - Page 5 Fig. 1 Indoor Unit Fig. 5 Remote Control Unit 1 Operating Control Panel (Fig. 2) C SLEEP Button 2 MANUAL AUTO button D MASTER CONTROL Button 3 Remote Control Signal Receiver E SET TEMP./SET TIME Buttons ( 4 OPERATION Indicator Lamp (red) F Signal Transmitter 5 TIMER Indicator Lamp (green) G TIMER Button...
-
Page 6: Preparation
PREPARATION Load Batteries (R03/LR03 × × × × × 4) CAUTION! G Take care to prevent infants from accidentally swallowing batteries. Open the battery compartment lid. G When not using the remote control unit 1 Slide the battery compartment lid until it stops. for an extended period, remove the 2 While strongly gripping the portion on each side of the battery com- batteries to avoid possible leakage and... -
Page 7: Operation
OPERATION Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). To Select Mode Operation Press the START/STOP button. SLEEP TIMER The indoor unit’s OPERATION indicator lamp (red) will light. The air conditioner will start operating. Press the MASTER CONTROL button to select the de- COOL sired mode. - Page 8 OPERATION Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). About Mode Operation AUTO: COOLING MODEL G When the room temperature is 2 °C higher than the set temperature, the Cooling Operation mode will switch between Cooling and Drying.
-
Page 9: Timer Operation
TIMER OPERATION Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). Before using the timer function, be sure that the remote control unit is set to the correct current time (See page 5). To Use the ON timer or OFF timer SLEEP TIMER Press the START/STOP button... -
Page 10: Sleep Timer Operation
TIMER OPERATION About the PROGRAM timer About the ON timer G The PROGRAM timer allows you to integrate OFF timer G The timer function is designed to bring your room to a and ON timer operations in a single sequence. The se- comfortable temperature by the set time;... -
Page 11: Adjusting The Direction Of Air Circulation
ADJUSTING THE DIRECTION OF AIR CIRCULATION Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). Vertical (up-down) direction of airflow is adjusted by pressing the remote control unit’s AIR FLOW DIRECTION VERTICAL SET button. Horizontal (right-left) direction of airflow is adjusted by pressing the remote control unit’s AIR FLOW DIRECTION HORIZONTAL SET button. -
Page 12: Swing Operation
SWING OPERATION Begin air conditioner operation before performing this procedure. To select Vertical airflow SWING Operation Press the AIR FLOW DIRECTION VERTICAL SWING button . SWING SWING The SWING indicator lamp (VERTICAL SWING) (orange) will light. In this mode, the UP/DOWN air direction flap will swing automatically to direct the TIME TEST ENERGY... -
Page 13: Energy Save Operation
ENERGY SAVE OPERATION Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). The air conditioner can be operated while keeping energy consumption costs down. How To Use the ENERGY SAVE OPERATION SWING SWING Press the START/STOP button (if the unit is already operating, proceed to step 2). -
Page 14: Cleaning And Care
CLEANING AND CARE G Before cleaning the air conditioner, be sure to turn it off and disconnect the power supply. CAUTION! G Turn off the electrical breaker. Cleaning the Air Filter 3. Re-attach the air filters to the intake grille. 1. -
Page 15: Troubleshooting
TROUBLESHOOTING Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). In the event of a malfunction (burning smell, etc.), immediately stop operation, turn off the elec- WARNING! trical breaker, and consult authorized service personnel. Merely turning off the unit’s power switch will not completely disconnect the unit from the power source. -
Page 16: Operating Tips
TROUBLESHOOTING Instructions relating to heating (*) are applicable only to “HEAT & COOL MODEL” (Reverse Cycle). Symptom Items to check See Page G Is the power supply plug disconnected from its outlet? CHECK ONCE Doesn’t operate at all: MORE G Has there been a power failure? —... - Page 17 OPERATING TIPS AUTO Restart In Event of Power Interruption G Should the power supply to the air conditioner be inter- G Use of other electrical appliances (electric shaver, etc.) or rupted by a power failure, the air conditioner will restart nearby use of a wireless radio transmitter may cause the automatically in the previously selected mode once the air conditioner to malfunction.
-
Page 18: Specifications
SPECIFICATIONS MODEL INDOOR UNIT RY-30E SERIES RY-36E SERIES RY-45E SERIES RY-54E SERIES OUTDOOR UNIT RO-30E SERIES RO-36E SERIES RO-45E SERIES RO-54E SERIES TYPE COOLING MODEL POWER 1~ 220-240 V 50 Hz 3N~ 380-415 V 50 Hz COOLING CAPACITY [kW] 8.4-8.5 10.3-10.5...
