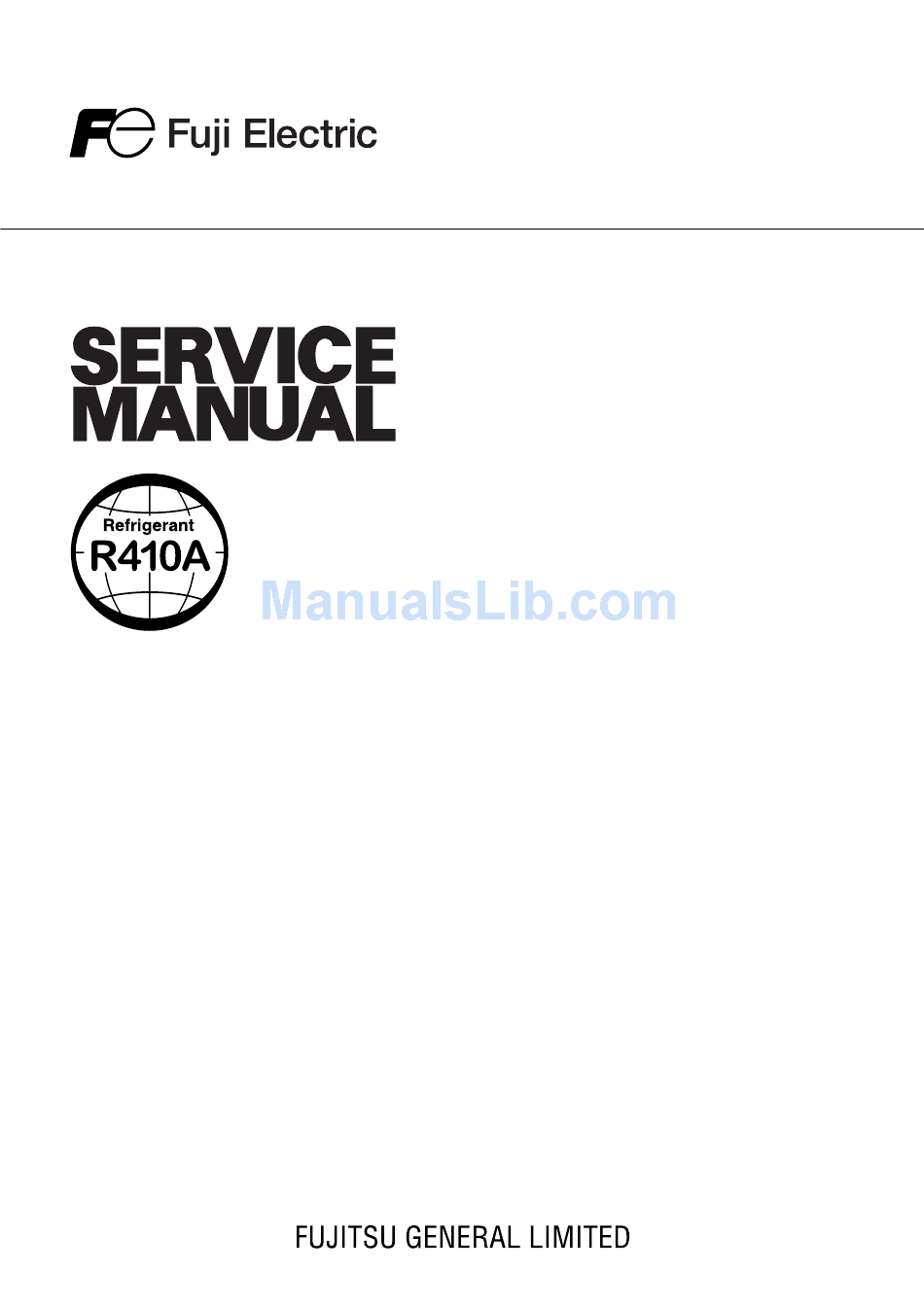

SPLIT TYPE
ROOM AIR CONDITIONER
CEILING
Models
Indoor unit
RY-36FA
RY-36UA
CONTENTS
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
REFRIGERANT SYSTEM DIAGRAM . . . . . . . . . . . . . 4
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
INDOOR PCB CIRCUIT DIAGRAM . . . . . . . . . . . . . .
ERROR CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . .
DISASSEMBLY ILLUSTRATION . . . . . . . . . . . . . . . . . 11
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
STANDARD ACCESSORIES . . . . . . . . . . . . . . . . . . . 25
type (50Hz)
Outdoor unit
RO-36FA
RO-36UA
7
. . . . . . . . . . . . 9
10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fuji Electric RO-36FA
Summary of Contents for Fuji Electric RO-36FA
-
Page 1: Table Of Contents
Models Indoor unit Outdoor unit RY-36FA RO-36FA RY-36UA RO-36UA CONTENTS SPECIFICATIONS ......1 DIMENSIONS . -
Page 2: Specifications
OUTDOOR UNIT WEIGHT INDOOR UNIT OUTDOOR UNIT ADDITIONAL REFRIGERANT CHARGE (R410A) FULL CHARGE AMOUNT MAX PIPE LENGTH MAX PIPE HEIGHT ADDITIONAL CHARGE 2005.07.29 COOLING RY-36FA RO-36FA (kW) (kW) COOLING HEATING COOLING (kW) HEATING COOLING (kW/kW) HEATING ( /hr) /hr) DISCRIMINATION HI-SPEED (r.p.m.) -
Page 3: Dimensions
DIMENSIONS (Unit : mm) INDOOR UNIT Models : RY-36FA RY-36UA 1,660 1,600 2005.07.29... - Page 4 OUTDOOR UNIT Models : RO-36FA RO-36UA (Unit : mm) Air Flow 2005.07.29...
-
Page 5: Refrigerant System Diagram
REFRIGERANT SYSTEM DIAGRAM Models : RY-36FA / RO-36FA OUTDOOR UNIT Condenser Models : RY-36UA / RO-36UA OUTDOOR UNIT Condenser : COOL : HEAT 2005.07.29 Pressure Check Valve High Pressure Switch Accumulator Compressor Capillary Tube Strainer Charging Valve Pressure Check Valve... -
Page 6: Circuit Diagram
CIRCUIT DIAGRAM Model : RY-36FA Model : RO-36FA 2005.07.29... - Page 7 Model : RY-36UA Model : RO-36UA 2005.07.29...
-
Page 8: Indoor Pcb Circuit Diagram
INDOOR PCB CIRCUIT DIAGRAM Model : RY-36FA 4700P 600V <2W> R4 330K 1SR139-600 <2W> R1 3.3 1SR139-600 <5W> 0.047 R6 100 2SC4236 <1/2W> D1FL20U D3SB60 R3 100 <1/10W> MTZJ5.1B D1FL20U 2SC1815 R2 1.5 100/450V <2W> <1/4W> /6.3V POWER SOURCE 230V 50Hz FH101 FH102... - Page 9 Model : RY-36UA 4700P 600V <2W> 330K 1SR139-600 <2W> R1 3.3 1SR139-600 <5W> SWITCHING TRANSFORMER C7 0.047 R6 100 2SC4236 <1/2W> D1FL20U D3SB60 R3 100 <1/10W> MTZJ5.1B D1FL20U 2SC1815 PRIMARY SECONDARY 100/ 100/ 450V <2W> <1/4W> 6.3V POWER SOURCE 230V 50Hz FH101 FH102...
-
Page 10: Outdoor Pcb Circuit Diagram
OUTDOOR PCB CIRCUIT DIAGRAM Model : RO-36UA D3SB60 R3 62K 4700P <RS - 2W> R2 330K <ECQM> <2W> 2SC4236 1SR139-600 R4 100 D1FL20U <1/2W> 1000 /450V C14 0.047 R5 10K <ECQB> <1/10W> D1FL20U MTZJ5.1B 2SC1815 R6 1.5 R7 330 <RS - 2W> <1/4W>... -
Page 11: Error Contents
SWING TIMER OPERATION TEST RUNNING When the air conditioner is run by pressing the remote control unit test run button, the OPERATION, TIMER, and VERTICAL SWING lamps flash slowly at the same time. ERROR The OPERATION, TIMER, and VERTICAL SWING lamps operate as follows according to the error contents. -
Page 12: Disassembly Illustration
DISASSEMBLY ILLUSTRATION Models : RY-36FA RY-36UA 2005.07.29... - Page 13 2005.07.06...
- Page 14 2005.07.06...
- Page 15 2005.07.06...
- Page 16 Model : RY-36FA 253-3 253-9 253-2 253-1 815-1 982-1 2005.07.29 381-4 982-2 253-5 253-4 253-6 253-7 185-1...
- Page 17 Model : RY-36UA 253-5 253-3 253-4 253-6 253-7 253-2 253-1 185-1 982-1 381-4 815-1 982-2 2005.07.29...
- Page 18 Models : RO-36FA RO-36UA 2005.07.29...
- Page 19 2005.07.06...
- Page 20 Model : RO-36FA 2005.07.29...
- Page 21 Model : RO-36UA 2005.07.29...
- Page 22 Model : RO-36FA 2005.07.29...
- Page 23 Model : RO-36UA 2005.07.29...
-
Page 24: Parts List
PARTS LIST INDOOR UNIT Ref. Description Air Filter Base Assy Capacitor (Fan Motor) Sirocco Fan Assy Panel (Front) Louver Intake Grille Hinge Casing Shaft Holder-B Motor Fixing Table Kit (Separate Wall Sub Assy) ---- Evaporator Sub Assy Evaporator Assy Drain Pan Fan Motor Assy-IN Hanger Bracket Hole Cover... - Page 25 ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- 2005.07.29 Description RO-36FA Top Panel Sub Assy 9374417018 Front Panel-L, Painted 9374094042 Fan Guard 9374330010 Side Grip 9374173013 Service Panel Assy 9374093045 Right Panel Assy 9374095049 Propeller Fan Assy...
-
Page 26: Standard Accessories
9371190020 9371190013 (AR-JW1) (AR-JW2) 0600185534 0600185534 9305642014 9305642014 301980000201 301980000201 9360464002 9360464002 313806350303 313806350303 9350716029 9350716029 9352766015 9352766015 9301501001 9301501001 312300787605 312300787605 313005446653 313005446653 313005446759 313005446759 9360022004 9360022004 9374714025 9374714025 Part No. RO-36FA RO-36UA ----- 9303029015 ----- 313166024302 9374756018 9374756018... - Page 27 0504G2810...
