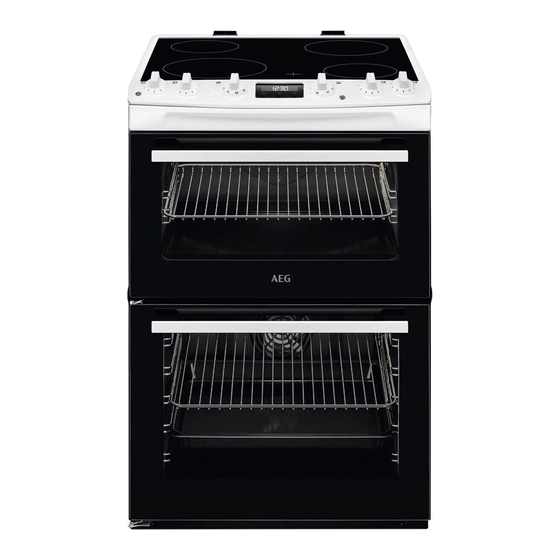

EN User Manual | Cooker
CCX6540ACW
CCX6540ACB
CCX6540ACM
aeg.com\register

Advertisement

loading
Need help?

Need help?

Do you have a question about the CCX6540ACW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AEG CCX6540ACW

  • Page 1 EN User Manual | Cooker CCX6540ACW CCX6540ACB CCX6540ACM aeg.com\register...
  • Page 2: Table Of Contents

    Welcome to AEG! Thank you for choosing our appliance. Get usage advice, brochures, troubleshooting, service and repair information: www.aeg.com/support Subject to change without notice. CONTENTS 1. SAFETY INFORMATION................2 2. SAFETY INSTRUCTIONS................5 3. INSTALLATION....................7 4. PRODUCT DESCRIPTION................9 5. BEFORE FIRST USE..................10 6.
  • Page 3: General Safety

    be kept away from the appliance unless continuously supervised. • Children should be supervised to ensure that they do not play with the appliance. • Keep all packaging away from children and dispose of it appropriately. • WARNING: The appliance and its accessible parts become hot during use.
  • Page 4 • Never use water to extinguish the cooking fire. Switch off the appliance and cover flames with e.g. a fire blanket or lid. • CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
  • Page 5: Safety Instructions

    • The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. • WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance.
  • Page 6: Care And Cleaning

    The isolation device must have a contact • Do not let sparks or open flames to come opening width of minimum 3 mm. in contact with the appliance when you • Fully close the appliance door before you open the door. connect the mains plug to the mains •...
  • Page 7: Internal Lighting

    • Make sure the appliance is cold. There is These lamps are intended to withstand the risk that the glass panels can break. extreme physical conditions in household • Replace immediately the door glass appliances, such as temperature, panels when they are damaged. Contact vibration, humidity, or are intended to the Authorised Service Centre.
  • Page 8: Levelling Of The Appliance

    WARNING! The power cable must not touch the part of the appliance shaded in the illustration. Minimum distances Dimension 3.5 Covering terminal board 3.3 Levelling of the appliance • The recommended cross-section area is six square millimetres (6 mm²). • When you refit the mains terminal cover, make sure that the lower tabs are located Use small feet on the bottom of appliance to inside the bottom edge of the aperture,...
  • Page 9: Product Description

    4. PRODUCT DESCRIPTION 4.1 General overview Control panel and hob Air vents for the cooling fan Heating element Lamp Shelf support, removable Cavity embossment Shelf positions 4.2 Hob overview Knobs for the hob Knob for the top oven functions Display 145 mm 180 mm Knob for the main oven functions...
  • Page 10: Before First Use

    5. BEFORE FIRST USE 5.2 Setting the time WARNING! You must set the time before you operate the Refer to Safety chapters. oven. 5.1 Initial preheating and cleaning Preheat both empty appliances before the Only the top oven works without the set first use and contact with food.
  • Page 11: Hob - Hints And Tips

    The indicator appears when a cooking zone • when the hob is deactivated but the is hot, but it does not function if mains power cooking zone is still hot. is disconnected. The indicator disappears when the cooking The indicator may also appear: zone has cooled down.
  • Page 12: Hob - Care And Cleaning

    Heat setting Use to: Time Hints (min) 1 - 2 Hollandaise sauce; melt: butter, choco‐ 5 - 25 Mix from time to time. late, gelatine. Solidify: fluffy omelettes, baked eggs. 10 - 40 Cook with a lid on. 2 - 3 Simmer rice and milk-based dishes, 25 - 50 Add at least twice as much liquid as...
  • Page 13: Oven - Daily Use

    9. OVEN - DAILY USE 9.3 Activating and deactivating the WARNING! top / main oven Refer to Safety chapters. 9.1 Top oven functions It depends on the model if your appliance has knob symbols, indicators or lamps: Off position • The indicator comes on when the The oven is off.
  • Page 14: Trivet And Grill- / Roasting Pan

    Push the shelf between the guide bars of the shelf support. 2. Put the deep pan into the oven on the recommended shelf position. You can use the trivet to grill and toast thin pieces of food in large quantities. 1.
  • Page 15: Clock Functions

    10.2 Buttons Button Function Description MINUS To set the time. CLOCK To set a clock function. PLUS To set the time. 10.3 Clock functions Clock function Application TIME OF DAY To set, change or check the time of day. Only the top oven works without the set time. DURATION To set how long the oven works.
  • Page 16: Oven - Hints And Tips

    11. OVEN - HINTS AND TIPS WARNING! Refer to Safety chapters. The temperature and baking times in the tables are guidelines only. They depend on the recipes and the quality and quantity of the ingredients used. 11.1 Information for test institutes Main oven Food Function...
  • Page 17: Oven - Care And Cleaning

    Food Function Tempera‐ Time (min) Accesso‐ Shelf po‐ ture (°C) ries sition Apple pie, 2 tins (ø 20 cm) Conventional cooking 60 - 80 Grid on the grid, diagonally shif‐ Fatless sponge cake, 1 tin Conventional cooking 20 - 30 Grid (ø...
  • Page 18: Cleaning The Top Oven

    The walls with catalytic coating are self- cleaning. They absorb fat which collects on the walls while the appliance operates. To support the self-cleaning procedure, heat the empty oven on a regular basis. The oven cavities must be cleaned separately. 12.3 Cleaning the top oven 1.
  • Page 19: Removing And Cleaning The Door Glasses - Main Oven

    12.7 Removing and cleaning the 12.8 Replacing the lamp door glasses - main oven WARNING! Risk of electric shock. The lamp can be hot. The door glass in your product can be different in type and shape from the 1. Turn off the oven. Wait until the oven is example you see in the image.
  • Page 20: Service Data

    14. ENERGY EFFICIENCY 14.1 Product Information according to EU and UK Ecodesign Regulations for Hob Model identification CCX6540ACW CCX6540ACB CCX6540ACM Type of hob Hob inside Freestanding Cooker Number of cooking zones Heating technology...
  • Page 21: Hob - Energy Saving

    • Before you activate the cooking zone put the cookware on it. 14.3 Product Information Sheet and Product Information according to EU and UK Energy Labelling and Ecodesign Regulations for Oven Supplier's name CCX6540ACW 948904367 Model identification CCX6540ACB 948904368 CCX6540ACM 948904369 Top oven: 105.6 Energy Efficiency Index Main oven: 95.4...
  • Page 22: Oven - Energy Saving

    CCX6540ACW 58.35 kg Mass CCX6540ACB 59.0 kg CCX6540ACM 56.8 kg IEC/EN 60350-1 - Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills - Meth‐ ods for measuring performance. 14.4 Oven - Energy saving Cooking with fan...
  • Page 24 867364016-A-282024...
