Acme Furniture BD01177 Assembly Instruction

ASSEMBLY INSTRUCTION FOR ACME FURNITURE
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small
parts which may have come loose inside the carton during shipment. Separate, identify and count all
parts and hardware.Compare with the part list to be sure all parts are present. If any part(s) are
missing or damaged, please contact your local furniture dealer. For efficient and speedy service,
please indicate the model number and code letter of part(s) needed"
"DO NOT TIGHTEN SCREWS UNTIL COMPLETELY ASSEMBLED"
PLEASE READ INSTRUCTION BEFORE STARTING THE ASSEMBLY
HARDWARE LIST
ITEM DESCRIPTION
JCBC SCREW
A
FLAT WASHER
B
METAL SUPPORT
C
LEG
D L - KEY
Attention
*** Some number parts listed on the instruction sheet may not be in parts bag as they may already be assembled. Carefully
check parts and packing materials prior to ordering replacements.
MODEL# BD01177
DRAWING
SIZE
M6 x 16MM
M6 x 19MM
-
M4 x 65MM
IMPORTANT:
QTY
ITEM DESCRIPTION
16 PCS

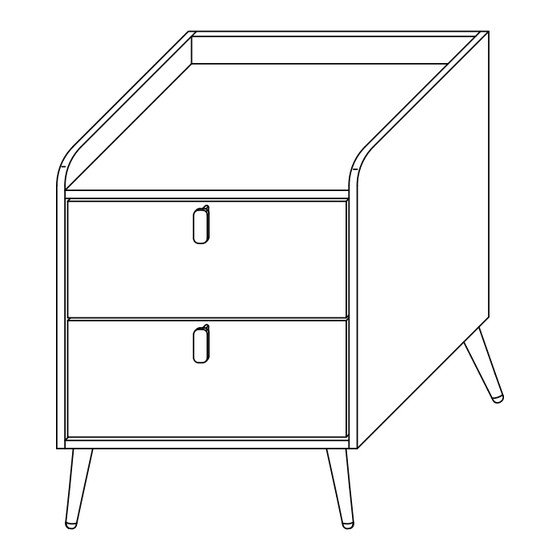

NIGHTSTAND
1
16 PCS
4 PCS
1 PC
PART LIST
DRAWING QTY
1 PC
Page 1 of 2
