ASSEMBLY INSTRUCTIONS
BD02052
Item no :
*** Thank you for purchasing this quality product. Be sure to check all packing materials
carefully for small parts which may have come loose inside the carton during shipment. Identify
and count all parts and compare with parts list below.
*** Assemble product on a flat, soft surface such as a carpet or cloth to prevent scratching the
finish. Read all instruction and study the drawings carefully before starting the assembly
process.
IMPORTANT: Do not tighten bolts completely until all
bolts are completely lined up and inserted into holes
PAGE 1 OF 11
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Acme Furniture BD02052
Summary of Contents for Acme Furniture BD02052
- Page 1 ASSEMBLY INSTRUCTIONS BD02052 Item no : *** Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts which may have come loose inside the carton during shipment. Identify and count all parts and compare with parts list below.
- Page 2 PARTS LIST HARDWARE LIST Q'Ty Q'Ty DIAGRAM PART NAME PART NAME DIAGRAM Upper Rear Panel 1 pc Bolt: 6.3 x 30 (mm) 27 pcs Upper Right Post 1 pc Bolt: 6.3 x 50 (mm) 7 pcs Metal Shelf Support Upper Left Post 1 pc 8 pcs With Pin...
- Page 3 Bookcase & Chest (3 Drawers) Assembly STEP 1: BOOKCASE ASSEMBLY 3 pcs PAGE 3 OF 11...
- Page 4 STEP 2: BOOKCASE ASSEMBLY 8 pcs 8 pcs STEP 3: BOOKCASE ASSEMBLY 24 pcs PAGE 4 OF 11...
- Page 5 BOOKCASE & CHEST ASSEMBLY STEP 4: 3 pcs STEP 5: COMPLETED 2 pcs PAGE 5 OF 11...

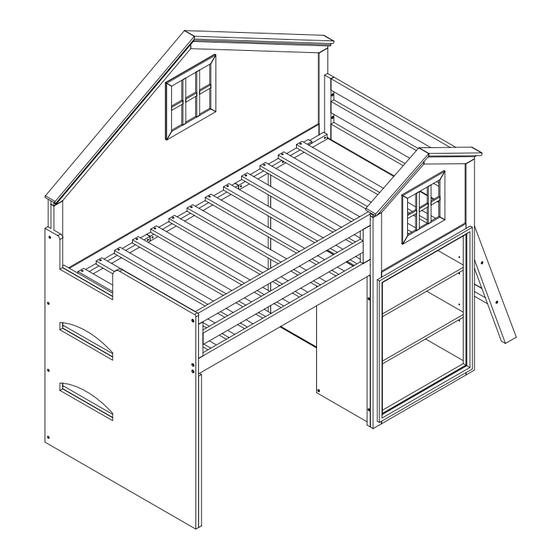

- Page 6 The Loft House Bed Assembly Hutch & Chest (3 Drawers) STEP 6: UPPER REAR PANEL & POST ASSEMBLY 6 pcs PAGE 6 OF 11...
- Page 7 STEP 7: Hutch & Chest (3 Drawers) IMPORTANT: Bookcase & Chest (3 Drawers) must be fully assemble before you begin assemble back panel / Left Headboard 3 pcs / Rail / Guardrail / Ladder / Slats (14 pcs) STEP 8: FRONT HOUSE PANEL &...
- Page 8 LEFT FOOTBOARD & RIGHT GUARDRAIL ASSEMBLY STEP 9: 4 pcs 4 pcs STEP 10: FRONT RAIL ASSEMBLY 4 pcs PAGE 8 OF 11...
- Page 9 STEP 11: RAIL & BED ASSEMBLY 2 pcs 4 pcs 4 pcs 1 pc STEP 12: LADDER ASSEMBLY 6 pcs PAGE 9 OF 11...
- Page 10 STEP 13: SLATS ASSEMBLY 28 pcs STEP 14: LADDER & BED ASSEMBLY 2 pcs PAGE 10 OF 11...
- Page 11 WARNING !!! To help prevent serious or fatal injuries from entrapment or falls: 1. Follow the information on the warning label appearing on the upper bunk end structure and on the carton. Do not remove warning label from bed. 2. Use only mattress which is 39" WIDE AND 75" LONG ON UPPER BUNK.3. Ensure thickness of upper mattress does not exceed 6”...
