CQR DEEDLOCK AKT4252 Startup Manual

Programming the keypad
The APX-16 can be programmed with user codes & proximity fobs/cards into 1200 individual User ID numbers .
When adding codes and fobs you should programme codes into an ID number and the following number should be used for a Fob i.e.
if a code is entered into ID number 3, then the Fob should be programmed into ID number 4
The factory default settings are as follows:
Programme code = 888888
User code or fobs = None programmed
Door open timer = 5 seconds
Either User Code or proximity fob/card can be used to unlock
To Enter programming mode
*
The LED indicator should be a flashing red, press following the programming code, followed by # the LED should flash green then
go to a solid red.
To leave programming mode
*
Press the LED indicator should go back to a flashing red.
To Program a code to unlock the door using relay 1
Enter programming mode
Press 1 followed by the required User ID number (1-1100) followed by #, then enter the code (must be a 4 digit code - 1234
cannot be used) then press #, adds the code into the selected User ID number, Repeat for each User
*
Press to leave programming mode
To enrol a fob/card to unlock the door
Enter programming mode
Press 1 followed by the required User ID number (1-1100) followed by # present fob/card to reader and take away pressing # adds a
fob/card into the selected User ID number.
*
Press to leave programming mode
To change the lock open time
Enter programming mode
Press 41 then the required time in seconds (1- 99 seconds - 5 is the default)
Press the # to enter the time
*
Press to leave programming mode
To delete a User code or Fob
Enter programming mode
Press 2 followed by the User ID number followed by the #
The code will be deleted
*
Press to leave programming mode
To delete all codes and fobs/cards
Enter programming mode
Press 2 followed by 0000 # (deletes all fobs and code)
*
Press to leave programming mode
To change the programming code
Enter programming mode
Press 0 followed by the new code(must be 6 to 8 digits followed by the #, enter new code again followed by the #
*
Press to leave programming mode
To reset the programming code
Power down the keypad
*
Power up the keypad whilst press the Key after 2 short bleeps release it a 3 bleep should be heard
Programming code is now 888888 again
For all other functions please refer to the full manual.
LED colour indicates the following
Slow flashing RED
Solid RED
Solid GREEN
Environmental Advice.
This product is covered by current WEEE regulations.
Please consider the effect on the environment when disposing of it.
Do not put in a domestic waste bin. Only dispose of at an appointed recycling centre.
AKT4252 issue 2.1 115122023
Normal operating mode
Programming mode
Valid code entered
Valid fob/card presented
'Press to Exit' operated
4
Start-up guide
T
his kit contains all the equipment required to install a single door access control system.

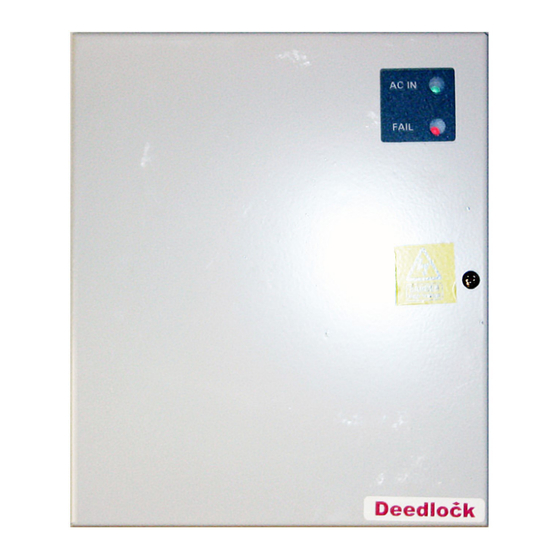

1 x ADP121A: 12V 1A power supply
1 x AEMGATE/F/S: External Unmonitored electro magnetic lock
1 x AEMBR046: Z bracket for use with the magnetic lock
1 x APX-16: IP 65 External keypad, 2 x relays
1 x AKA-WCP3AG-SG: External MCP
1 x AEB44: IP67 Green dome Exit button
20m x 6 core multi-stranded cable
The keypad, magnetic lock, request to exit button and green call point are designed to be installed
externally to meet with your requirements, the power supply MUST be fitted internally.
The electro-magnetic lock can be fitted direct to the frame for outward opening doors or with the Z
bracket for inward opening doors/gates.
The green call point and 'PRESS TO EXIT' button should ideally be fitted at a height of 1.2m from the floor
level to allow for ease of access.
The keypad is programmed manually, with up to 1200 individual users (1100-relay 1+100-relay 2) which
can be programmed with either codes or fobs/cards
To use the keypad either enter a valid code followed by the # or present an enrolled fob/card, the LED will
change to green for the pre-programmed lock open time, then change back to a slow flashing red when
the lock open time has expired, while the LED is green the electro magnetic lock will be released allowing
you to open the restricted door.
Momentarily press and release the 'Request to Exit button' , the LED on the keypad will change to green
for the pre-programmed lock time, allowing you to open the restricted door, after the lock time has
expired the electro magnetic lock will be re-engaged, the door must be in the correctly closed position,
therefore holding the door secure.
In the event of a emergency the green manual call point must be pressed, this will ensure that the electro
magnetic lock is not active and therefore will not restrict access.
125 Pasture Road, Moreton, Merseyside, CH46 4TH UK
+44 (0)151 606 1000 ¦
AKT4252
External Gate kit
