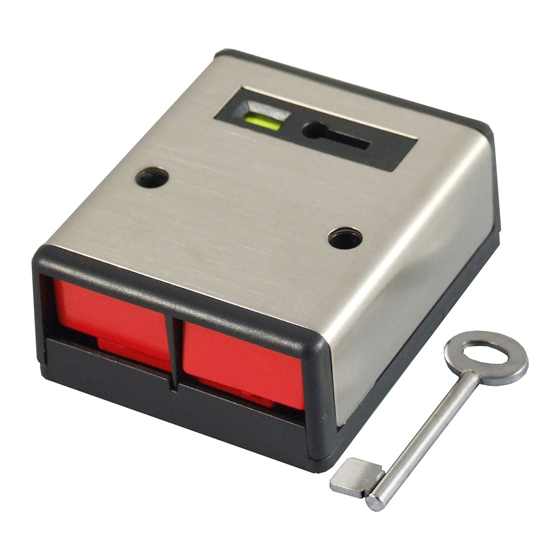

CQR PADP2 / SS /G1
Rev.1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PADP2/SS/G1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CQR PADP2/SS/G1

Summary of Contents for CQR PADP2/SS/G1

  • Page 1 CQR PADP2 / SS /G1 Rev.1...
  • Page 2 Index Page PA Overview Installation Instructions - Mounting - Wiring - Backplate Diagram Operation - Operating - Resetting Specification PA Overview Push Buttons Front Cover Indicator Key Reset Hole Backplate...
  • Page 3 Installation Instructions Mounting Undo the two cover screws to remove the front cover from the Backplate. Fix Backplate to mounting surface using suitable fixings. Wiring Route the cable through the access holes in the rear of the Backplate. Connect control panel PA zone/circuit to the two reed switch terminals inside the PA Button (not polarity conscious) as shown below.
  • Page 4 Operation To Operate Press both red buttons simultaneously. Indicator will show RED. To Reset Insert supplied key into front cover and turn clockwise through 90°. Indicator will show Yellow. Remove key. Note: Remove key from PA button whilst not in use and store carefully.
