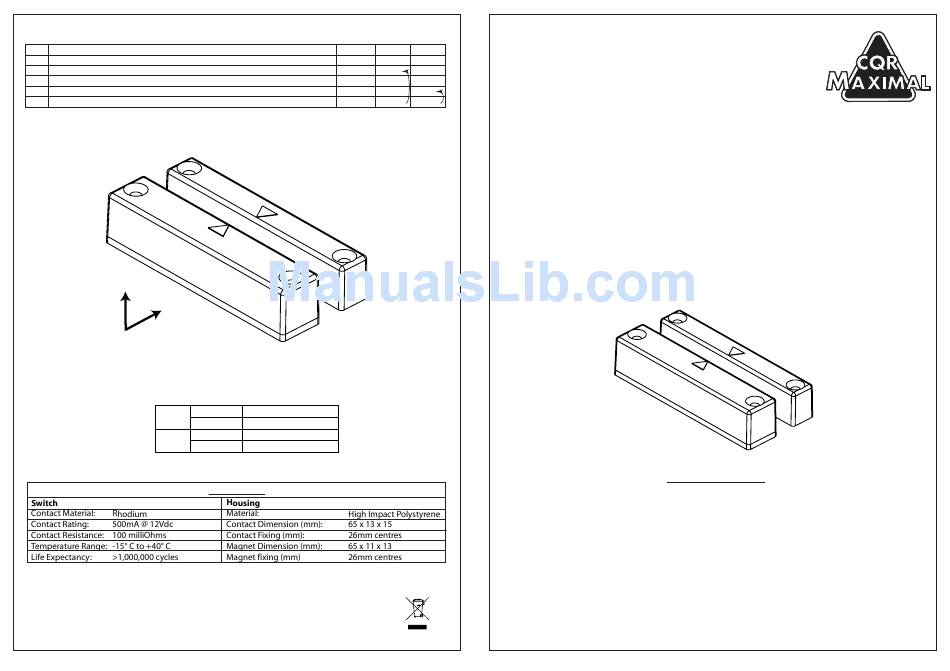

CQR SC517 Series Operating And Installation Instructions

Control panel types available on this model.
Type Control Panel
A Honeywell, Ademco Microtech
B Scantronic, Menvier, Pyronix PCX (12, 22, 44, 128 VID), Texecom, Castle CareTech G3 Plus.
DSC
D
Guardtec
E
Pyronix Matrix, PCX SMS, 134, 256.
I*
* Please note that type I (4K7 : 4K7) is achieved by selecting the alarm link of type B and the tamper link of type E
X
Y
Approximate Operating Distances (mm) with reed
closest to the arrow and using Non Ferrous Surfaces
Min Close
X
Max Open
Min Close
Y
Max Open
Mounting on a ferrous surface will reduce these
figures, dependant on the material and thickness.
Environmental Advice.
This product is covered by current WEEE regulations. Please consider the effect on the
environment when disposing of it. Do not put in a domestic waste bin. Only dispose of
at an appointed recycling centre.
Colour Alarm Tamper
Green 1K
Red 4K7
Orange 5K6
Purple 6K8
Varies 4K7
25mm
40mm
15mm
25mm
Specifications
RoHS compliant.
4
This product is designed to meet the requirements of EN50131-2-6:2008
Security grade 2 , environmental class II
1K
2K2
SC517/*/MULTI/G2/EN Magnetic Surface Contact.
5K6
* colour varies
4K7
4K7
Surface mounted magnetic contact.
Compact design
Four terminals.
Double pole or EOL configuration.
Suitable for domestic and commercial alarm circuits.
Suitable for double door applications.
Can be used in installations up to and including grade 2.
High impact polymer construction.
Operating and Installation
This compact surface mounted magnetic contact can be used in most security systems up to
and including grade 2 as specified in EN50131-1: 2006 and is certified to EN50131-2-6:2008
and environmental class II (for use indoors) by Telefication. It operates as a normally closed
circuit going open when the magnet housing is moved away from the contact housing.This
contact can be used on windows and doors to detect the unauthorised entry of an intruder.
A number of applications are shown over. The contact is also tamper protected against
removal from its mounting surface.
CQR Security. 125, Pasture Road, Moreton, Wirral. CH46 4TH, United Kingdom
Tel: +44 (0) 151 606 9595 Support: +44 (0) 151 606 6311 email: info@cqr.co.uk Web http://www.cqr.co.uk
Instructions
Description
1
SC517/*/MULTI/G2/EN Issue 03
