Kamar L1828 User Manual

User manual
L1828

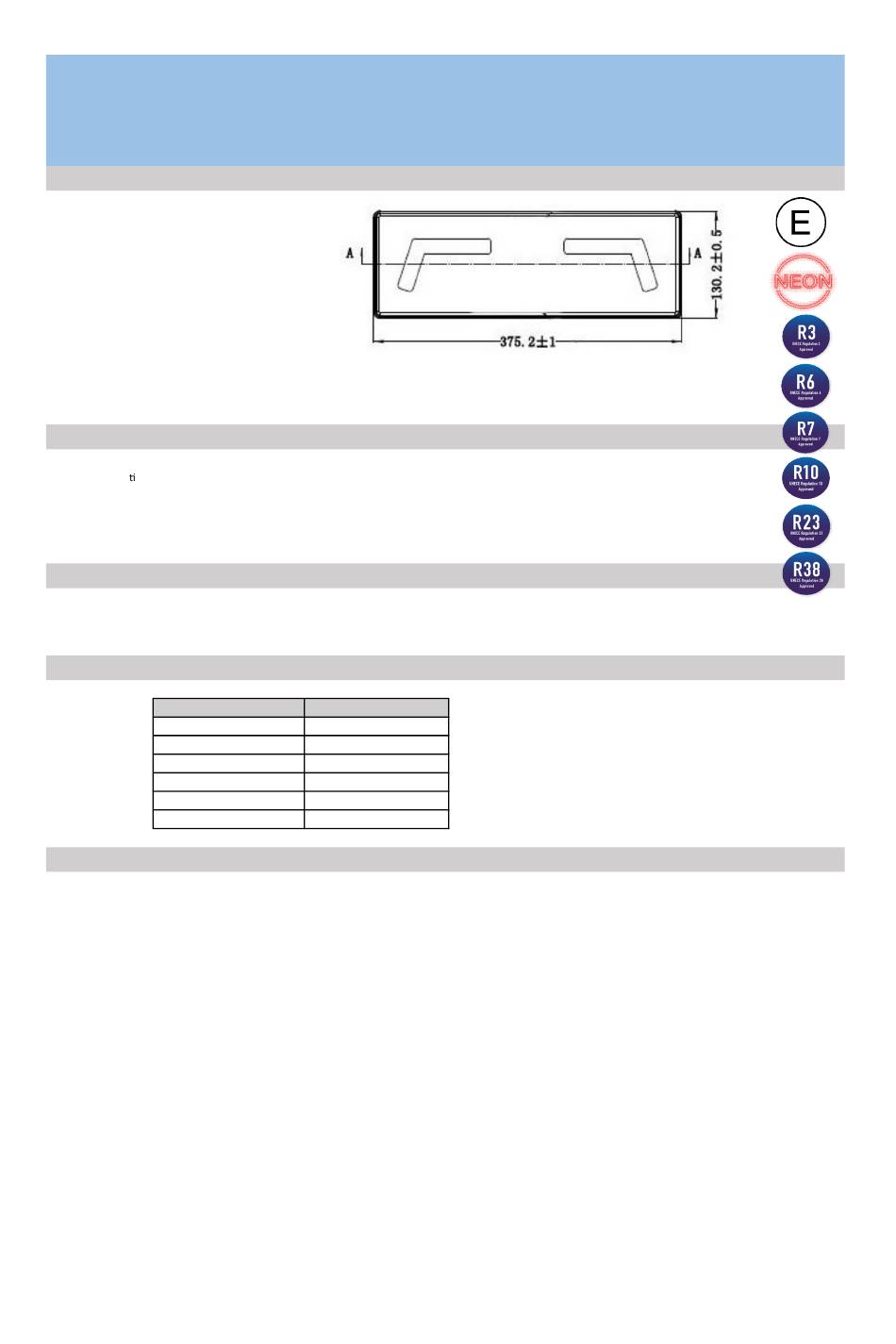

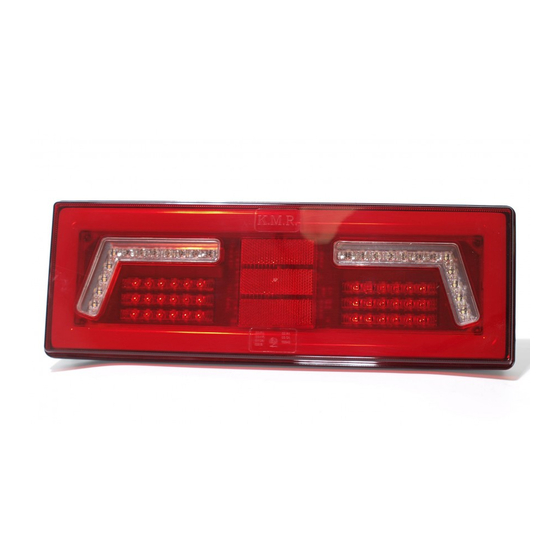

Rear combination lamp KMR1 102 LED 12/24 V with cable left
Technical data
• Product dimensions: 375x130mm
• Cable: 300mm
• Working voltage: 12/24V
• Approvals, certificates:
ECE R3, R6, R7, R10, R23, R38
• Power consumption: 2W + 2W + 22W + 3W + 3W
• LED quantity: 102pcs
• Material of execution:
Housing: ABS+PC
Lens: PMMA+PC
• Working temperature: from -40°C to + 60°C
Functions
• Rear lamp LED
• For automo ve use only
• The lamp has road approval ECE R3, R6, R7, R10, R23, R38 authorizing it to be used on public roads
• The lamp is intended for vehicles with 12/24V installation
• Reverse polarity protection
Mounting method
• Installation only in specialized workshops or professional service
• Lamps must be installed only in accordance with the UNECE regulations
Wire connection
FUNCTION
Ground
Position
Indicator
STOP
Revers
Warnings
• Use as intended
• Use in airy places
• Do not touch the lamp during operation and immediately after it is turned off, the lamp may get warm
Any unauthorized interference with the lamp (associated with its depressurization, interference with the electronic system, etc.) is associated with the loss
•
of warranty
• The device must be installed and kept out of reach of children
We reserve the right to change technical data and possible errors. Photos/drawing and
technical data are only illustrative, and given product may slightly differ from them. Coping the
part or the entire package without the written authorization is forbidden. All rights reserved.
WIRES COLOR
White
Grey
Yellow-green
Blue
Brown
Fog
Black
Important! Do not look directly at the light. It can cause the eye damage
Importer: KAMAR Knapkiewicz S.K.A.
Terms of warranty:
- we provide a guarantee for a period of 24 months from the date of sale,
- any unauthorized interference with the item entails the loss of the guarantee.
al. Armii Krajowej 254
85-689 Bydgoszcz, Poland
Country of origin: PRC
www.myKAMAR.com
