Kamar LW0032-ALR-1 User Manual

User manual
LW0032-ALR-1

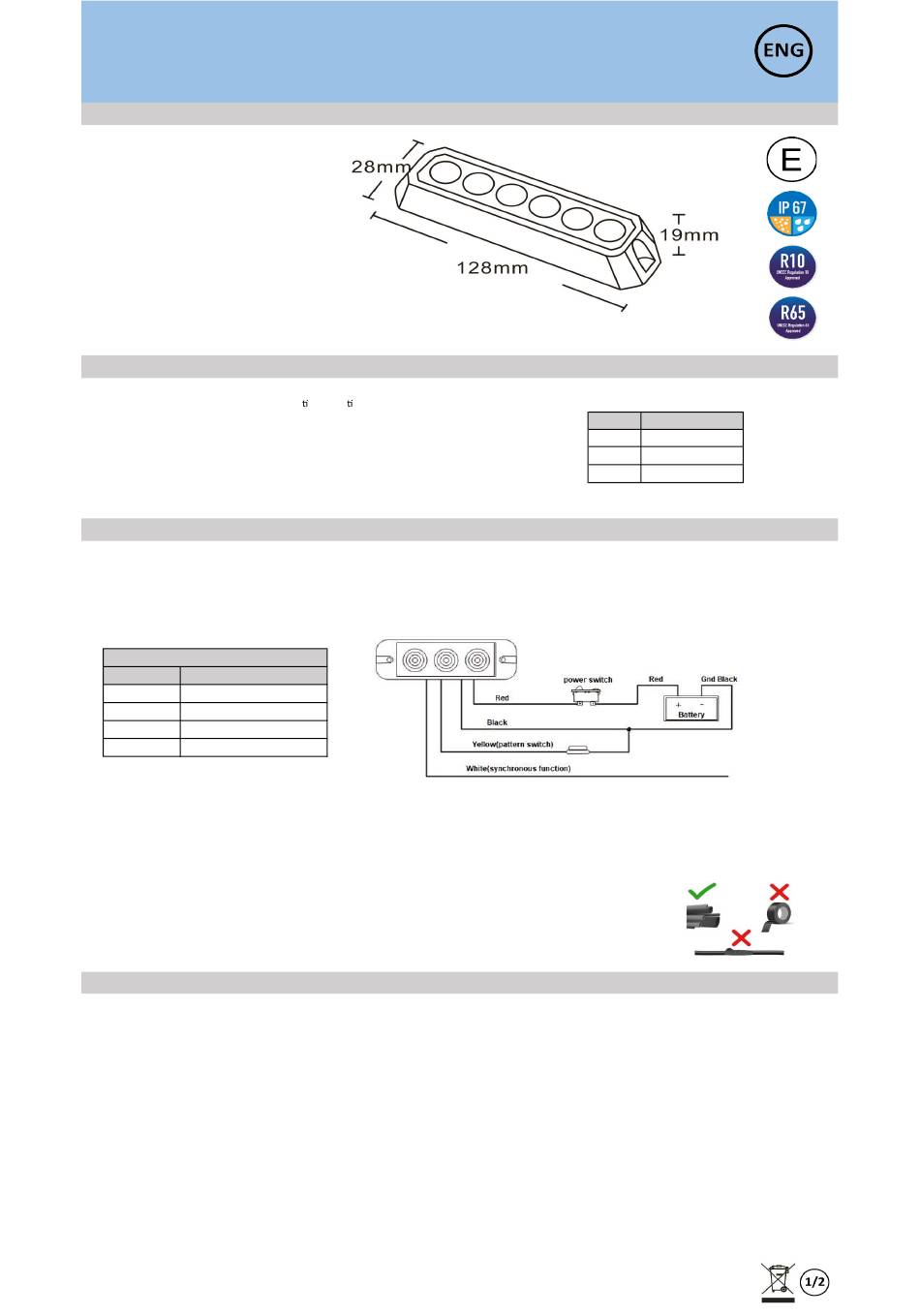

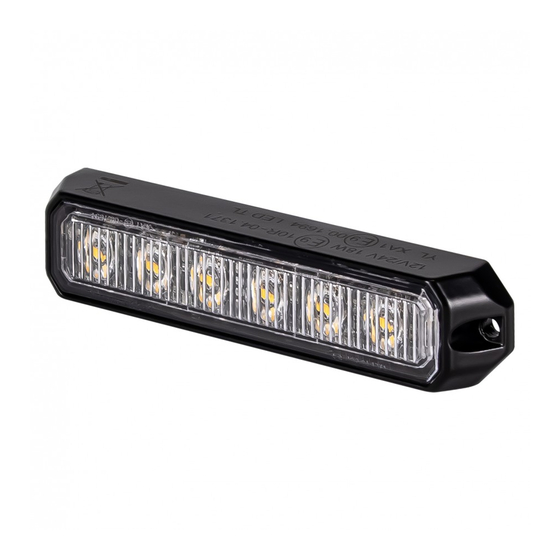

LED strobo light 6xLED orange R65 R10
Technical data
• Product dimensions: 128x28x19mm
• Power cable: 200mm
• Power consumption: 18W
• LED quantity: 6pcs
• Working voltage: 12/24V
• Approvals, certificates:
ECE R10, ECE R65 XA1, IP67
• Material of execution:
Housing: AL.
Lens: PC
• Working temperature: from -30°C to + 60°C
Functions
• Warning beacon, for automotive use only
• The lamp has R10 approval - electromagne c compa bility and
R65 approval - authorizing it to be used on public roads
• The lamp is intended for vehicles with 12/24V installation
• Quantity of flashes: 3 modes
• Light color: amber
• Reverse polarity protection
Mounting method, connection lamp
• Mounting the lamp with screws to the structure of the vehicle
• Installation only in specialized workshops or professional service
• Lamps must be installed only in accordance with the UNECE regulations
• Connection of the lamp with the instalation of the vehicle, the connection must be isolated with the heat shrink tube, it is neccessary
to avoid ingress of water to the core of the wires, which can cause the damage to the electrican and electronical components of the lamp
WIRE MARKING
COLOR FUNCTION
Red power
ground
Black
Yellow
change pattern
White
synchronize
1. Connect all red wires together
2. Connect all czarne wires together
3. To synchronize the lamps, connect all white wires together
4. Connect the red and black wires to power and ground
5. The yellow cable from the first lamp connected to the power supply from the vehicle is responsible for changing the type of flashes
6. Changing the type of flashes takes place after a short connection of the yellow and black wires through the mode switch
The connection between the lamp and vehicle's installation should be isolated with heat-shrink
tube, to avoid getting water and moisture to the copper wire of the lamp, which can damage
electronic components and flood the lamp with water.
Warnings
• Use as intended
• Use in airly places
• Do not touch the lamp during operation and immediately after it is turned off, the lamp may get warm
• Any unauthorized interference with the lamp (associated with its depressurization, interference with the electronic system, etc.)
is associated with the loss of warranty
• The device must be installed and keeped out of reach of children
• Do not cut off tinned ends.
Marking on the product or in the related texts indicates that it should not be disposed of with other household waste at the end of its useful life. To avoid damaging the environment and human health by uncontrolled
disposal, please separate the product from another type of waste and recycle it responsibly to promote the reuse of material resources as a permanent practice. For information on where and how to safely recycle this
product, household users should contact the retailer where they purchased the product. Users in companies should contact their supplier and check the terms of the purchase agreement.The product should NOT be
We reserve the right to change technical data and possible errors. Photos/drawing and
technical data are only illustrative, and given product may slightly differ from them. Coping the
part or the entire package without the written authorization is forbidden. All rights reserved.
+
-
Important! Do not look directly in the light. It can cause the the eye damage
Correct disposal of the product (used electrical and electronic equipment)
disposed of with other commercial waste.
Importer: KAMAR Knapkiewicz S.K.A.
al. Armii Krajowej 254
85-689 Bydgoszcz, Poland
Country of origin: PRC
www.myKAMAR.com
MODES
1
2
3
Terms of warranty:
- we provide a guarantee for a period of 24 months from the date of sale,
- any unauthorized interference with the item entails the loss of the guarantee.
DESCRIPTION
Single flash
Double flash
Quad flash
