Kamar LA0405 User Manual

User manual
LA0405

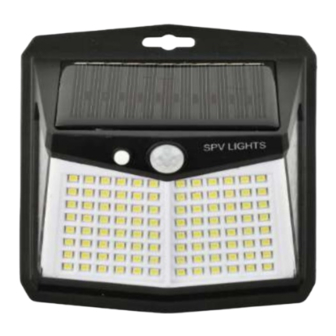

LED solar lamp KMR5
Technical data
• Material: ABS + PC
• Solar panel material: polycrystalline 5.5 V 70mA
• LED Quantity: 128*2835smd
• Color temperature: 6500-7000K
• Product dimensions: 115*112*48mm
• Product net weight: 112g
• Light flux: 300 lm
• Motion sensor operating range: up to 5m
• Sensor detection angle: 120º
• Lighting time after motion detection: 20 seconds
• Battery: 1*1200mah18650 3.7V
• Working time: 6-8 hours
• Charging time: 12-14 hours
• Manufacturer's CE declaration of conformity
Functions
The LED solar lamp illuminates the working field in a predetermined place. The lamp has a built-in solar panel thanks to which the
battery used in it is charged with energy from daylight and the sun. The lamp has 3 functions:
After pressing the ON/OFF button once, the sensor turns on the light with 100% light power when motion is detected, and
•
after 20 seconds without motion detection, the light turns off.
After pressing the ON/OFF button twice, when motion is detected, the sensor turns on the light at 100% light power, after 20
•
seconds without movement, the light dims to 30% light power in continuous mode.
•
When pressed three times, the lamp is turned on at 50% light power in continuous mode.
The lighting mode is changed after pressing the button located on the lamp housing.
Wire connection
• The lamp is charged via a built-in salt panel exposed to daylight and sunlight.
• After dusk, the solar panel acts as a twilight sensor and activates selected lamp lighting modes.
Warnings
• Use as intended
The solar lamp may become warm during long use
•
•
Product not for use by children
• The solar lamp is not waterproof
We reserve the right to change technical data and possible errors. Photos/drawing and technical data
are only illustrative, and given product may slightly differ from them. Coping the part or the entire
package without the written authorization is forbidden. All rights reserved.
The marking on the product or in the related texts indicates that it should not be disposed of with other household waste at the end of its useful life. To avoid damaging the environment and human health by
uncontrolled disposal, please separate the product from another type of waste and recycle it responsibly to promote the reuse of material resources as a permanent practice.For information on where and how to
safely recycle this product, household users should contact the retailer where they purchased the product. Users in companies should contact their supplier and check the terms of the purchase agreement.The
product should NOT be disposed of with other commercial waste.
Important! Do not look directly at the light. It can cause the eye damage
Correct disposal of the product(used electrical and electronic equipment)
Manufacturer: KAMAR Knapkiewicz S.K.A.
• ATTENTION! The ba ery is not replaceable
It is forbidden to interfere with the device.
Terms of warranty:
- we provide a guarantee for a period of 24 months from the date of sale,
- any unauthorized interference with the item entails the loss of the guarantee.
al. Armii Krajowej 254
85-689 Bydgoszcz, Poland
Country of origin: PRC
www.myKAMAR.com
