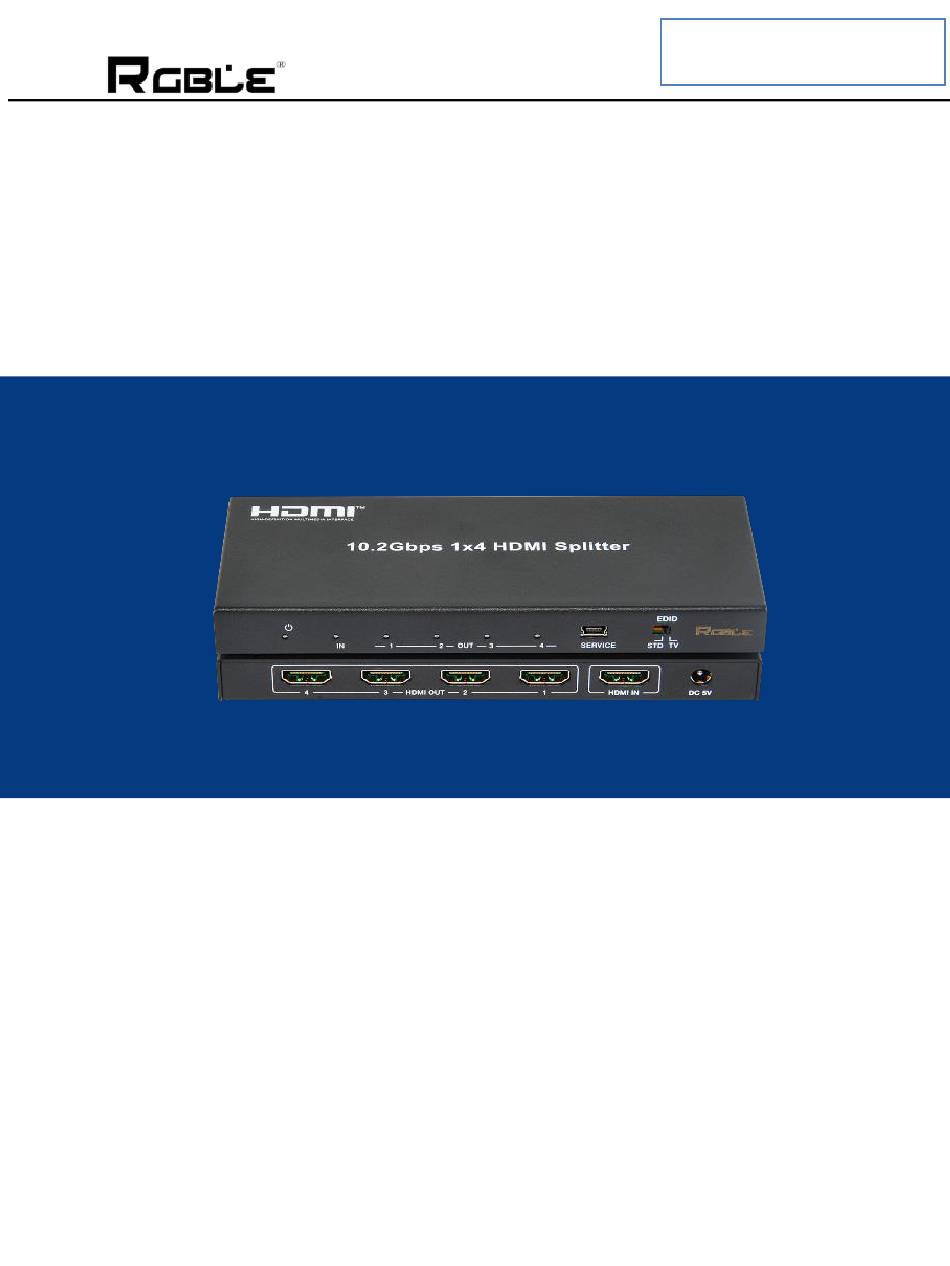

- Page 1 P/N: S00206 10.2Gbps -HDMI- 1x4 Splitter With EDID Management User Manual VER 1.1...
-
Page 2: Table Of Contents
P/N: S00206 Thank you for purchasing RGBLE product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. -
Page 3: Introduction
P/N: S00206 1. Introduction This high performance 10.2Gbps 1×4 -HDMI- Splitter can split one - HDMI- input to four -HDMI- outputs simultaneously. Supported input/output video resolution is up to 4K×2K@50/60Hz YCbCr 4:2:0. HDR and Dolby Vision function are available. In addition, this splitter supports STD and TV modes EDID setting. -
Page 4: Specifications
P/N: S00206 4. Specifications Technical HDCP Compliance HDCP 1.4 Video Bandwidth 10.2Gbps Video Resolution 4K2K 50/60Hz 4:2:0,4K2K 30Hz 4:4:4, 1080p, 1080i, 720p, 720i, 480p, 480i All -HDMI- 3D TV formats All PC resolutions including 1920 x 1200 3D Support Color Space... -
Page 5: Operation Controls And Functions
P/N: S00206 5. Operation Controls and Functions 5.1 Front Panel Name Function Description Red LED indicates that the device is powered on POWER LED Green LED indicates that -HDMI- IN port is connected IN LED to an active source device. -
Page 6: Application Example
P/N: S00206 Application Example...
