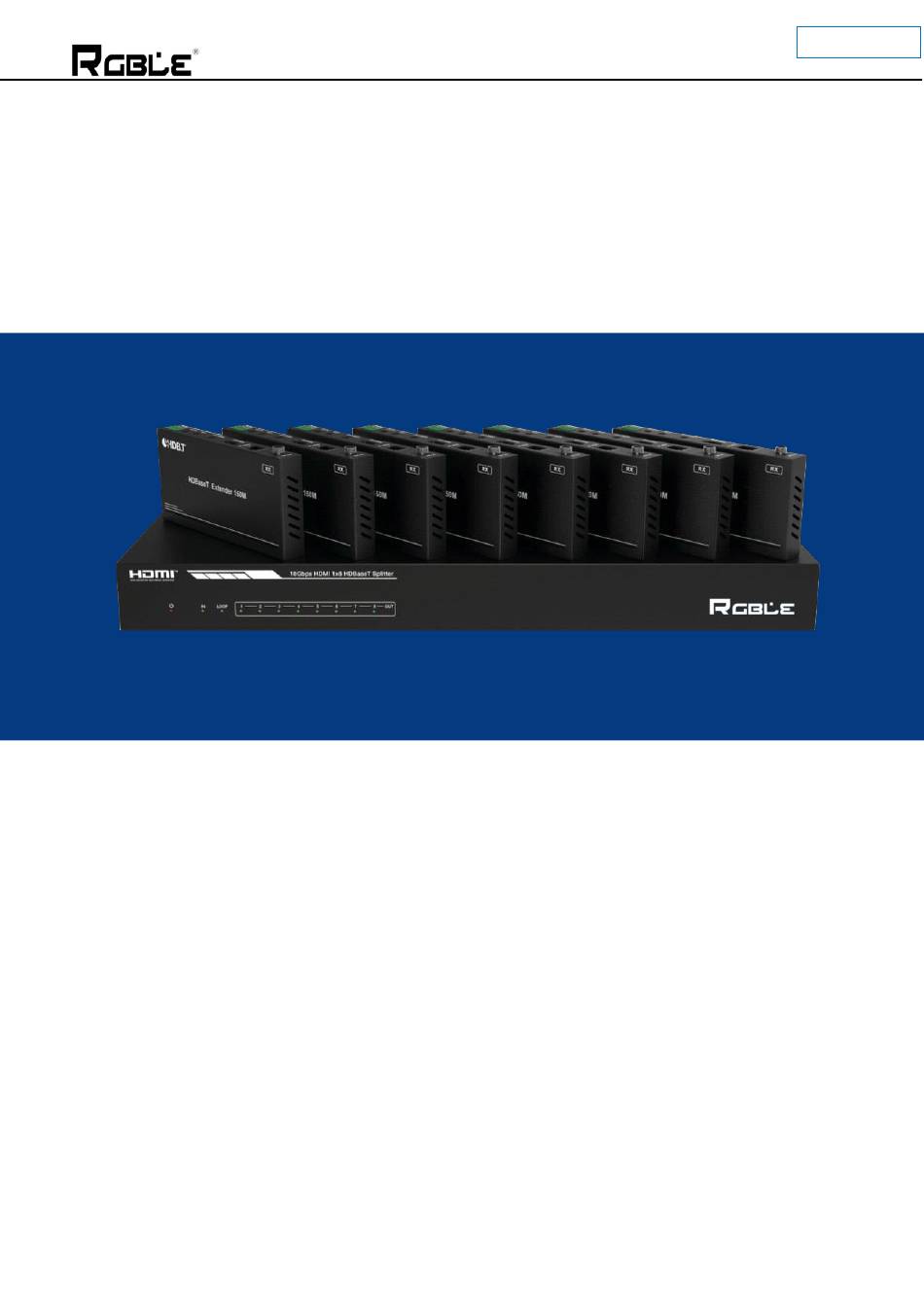

- Page 1 P/N: D00302 18Gbps -HDMI- 1X8 HDBT Splitter DH-8HT-U User Manual VER 1.0 Stock Code 873117 en.rgble.com 400-1661-021...
- Page 2 P/N: D00302 Thank you for purchasing RGBLE product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
- Page 3 P/N: D00302 1. Introduction The RGBLE 18Gbps -HDMI- 1x8 HDBT Splitter can distribute 1 source signal to any 8 display devices. The -HDMI- signal transmission distance can be extended up to 120 meters at the resolution of 4K2K@60Hz, 150 meters at 1080P@60Hz via a single CAT6/6a/7 cable.
- Page 4 (US/EU standards, CE/FCC/UL certified) Power Consumption Operation 0° C ~ 40° C / 32° F ~ 104° F Temperature Storage Temperature -20° C ~ 60° C / -4° F ~ 140° F Relative Humidity 20~90% RH (non-condensing) Stock Code 873117 en.rgble.com 400-1661-021...
- Page 5 When the -HDMI- LOOP OUT port connects an active display device, the green LED will be on. OUT (1~8) LED When the HDBT OUTPUT port connects an HDBT Receiver, the corresponding green OUT LED will be on. Stock Code 873117 en.rgble.com 400-1661-021...
- Page 6 Dark: No signal transmission. ▪ Plug the DC 24V power supply into the unit and connect ➓ the adaptor to an AC outlet. (Note: The transmitter can DC 24V power the receiver via a CAT cable.) Stock Code 873117 en.rgble.com 400-1661-021...
- Page 7 Connect to the IR Receiver cable. The IR signal will send to IR IN the IR OUT port of the transmitter. Connect to the IR blaster cable, the IR signal is from IR ➑ IR OUT IN port of the transmitter. Stock Code 873117 en.rgble.com 400-1661-021...
- Page 8 P/N: D00302 5.3 IR Pin Definition Stock Code 873117 en.rgble.com 400-1661-021...
- Page 9 COPY_FROM_LOOP OUT 01001 COPY_FROM_HDBT OUT1 01000 COPY_FROM_HDBT OUT2 00111 COPY_FROM_HDBT OUT3 00110 COPY_FROM_HDBT OUT4 00101 COPY_FROM_HDBT OUT5 00100 COPY_FROM_HDBT OUT6 00011 COPY_FROM_HDBT OUT7 00010 COPY_FROM_HDBT OUT8 00001 1080P, Stereo Audio 2.0 00000 PC control mode Stock Code 873117 en.rgble.com 400-1661-021...
- Page 10 1! hdbt output 1: connect port, y=0~9(0=all, 1~8=HDBT 1~8, 9=loop out) Reset to factory defaults Reset to factory defaults s reset! s reset! System Initializing... Initialization Finished! FW version x.xx.xx Stock Code 873117 en.rgble.com 400-1661-021...
- Page 11 Get hdbt output y hdcp r hdbt 1 Enable hdbt output 1 status, hdcp! hdcp y=0~8(0=all) r hdbt stream! Get hdbt output y r hdbt 1 Enable hdbt output 1 stream status, stream! stream y=0~8(0=all) Stock Code 873117 en.rgble.com 400-1661-021...
- Page 12 26, copy from hdbt output 4 27, copy from hdmi output 5 28, copy from hdbt output 6 29, copy from hdbt output 7 30, copy from hdbt output 8 31, 1080p, Stereo Audio 2.0 32, use user1 EDID Stock Code 873117 en.rgble.com 400-1661-021...
- Page 13 :8, stop 1 parity parity z! stop:1 parity: y=1,2, z=none, even, odd none! none set send RS232 command s rs232 time send RS-232 wait time 200! command wait s rs232 time 200ms x=200~5000ms time 200ms Stock Code 873117 en.rgble.com 400-1661-021...
- Page 14 P/N: D00302 8. Application Example Stock Code 873117 en.rgble.com 400-1661-021...
