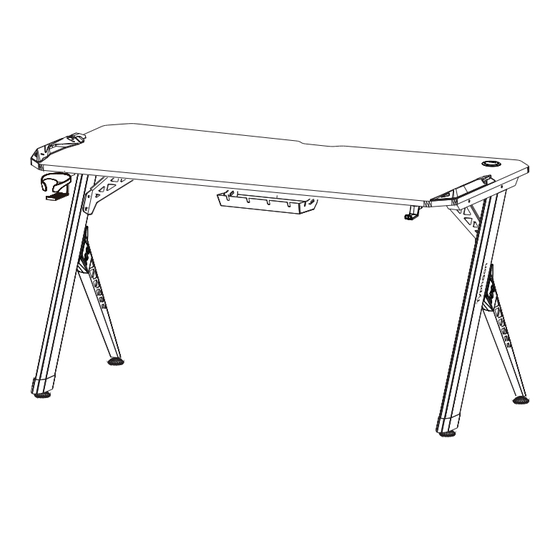

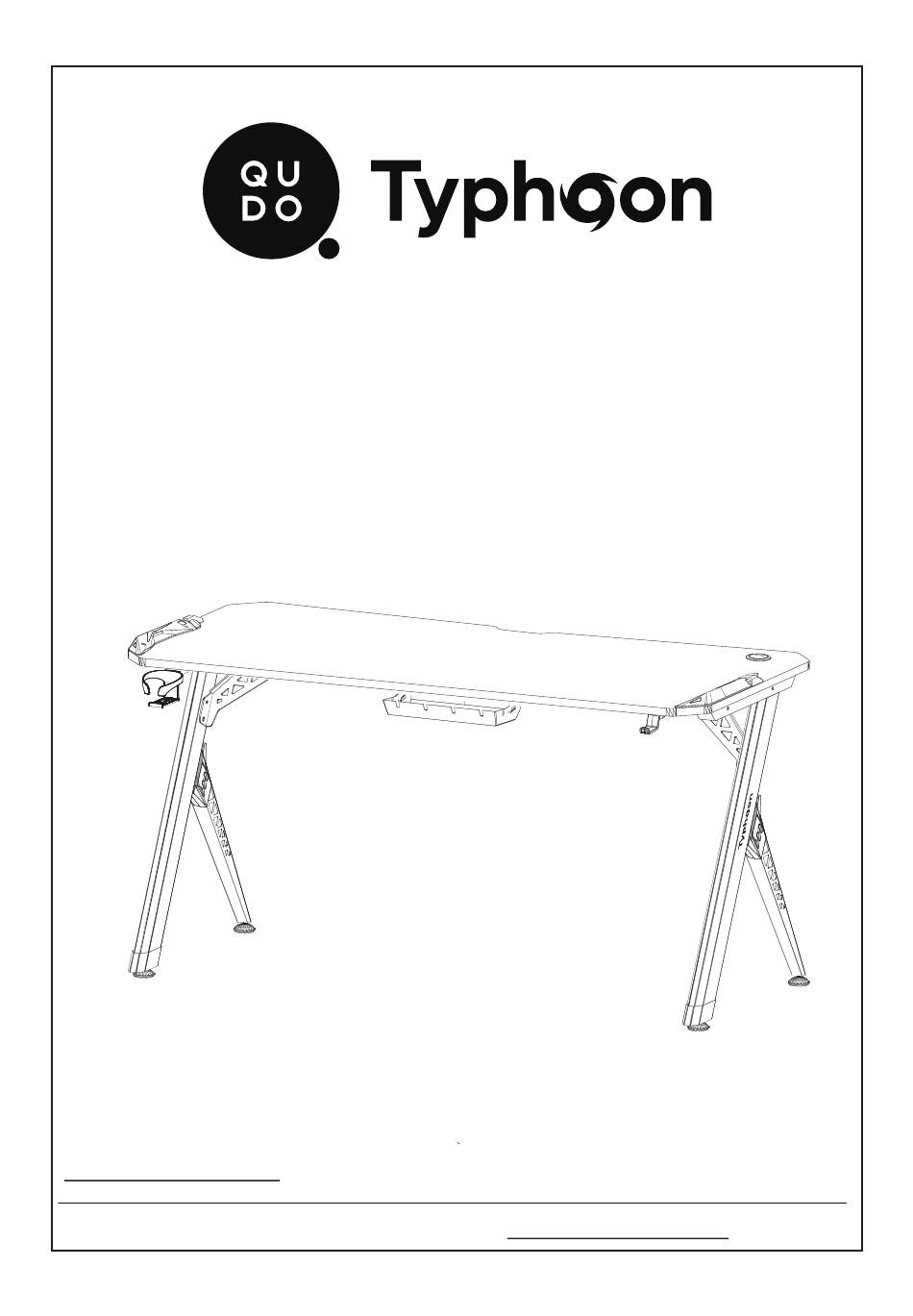

- Page 1 ASSEMBLY INSTRUCTIONS TYPHOON VIPER GAME DESK 1500 BLACK ITEM CODE: TYPVIPBK15 This design and instruction booklet is subject to copyright 1 Carton www.officeworks.com.au For missing hardware call (03) 9310 3011 or email hardware@kyvas.com.au 1/18...
-
Page 2: Tools Required
Estimated Assemble Time: 50min To view an assembly video, go to https://www.officeworks.com.au/ Search the product by item code or name: Click on the icon to watch the video. Tools Required CAUTION Do not use tools other than those required, as this can damage your new item. - Page 3 Part Overview 3/18...
-
Page 4: Part List
Part List Parts located in Carton - TYPVIPBK15 X 1 pc X 1 pc X 1 pc X 2pcs X 1 pc X 1 pc X 1 pc X 1 pc X 1 pc X 1 pc X 1 pc X 1 pc X 2 pcs X 2 pcs... -
Page 5: Hardware List
Hardware List Hardware Pack located in Carton - TYPVIPBK15 ( 6 x 50 mm) ( 6 x 16 mm) X 4pcs X 16pcs X 8pcs ( 6 x 12 mm) ( 3.5 x 16 mm) ( 4 x 14 mm) X 20pcs X 6pcs X 4pcs... - Page 6 Assembly Step 1 4 pcs Step 2 8 pcs 2 pcs 1 pc 6/18...
- Page 7 Step 3 D D D 12 pcs 1 pc Step 4 *Note: Do not tighten the screw A fully until you have completed Step 11. 2 pcs 2 pcs 1 pc 7/18...
- Page 8 Step 5 *Note: Do not tighten the screw A fully until you have completed Step 11. 2 pcs 2 pcs 1 pc Step 6 *Note: Do not tighten the screw D fully until you have completed Step 11. 4 pcs 1 pc 8/18...
- Page 9 Step 7 *Note: Do not tighten the screw B fully until you have completed Step 11. 1 pc 2 pcs Step 8 2 pcs 2 pcs 2 pcs 9/18...
- Page 10 Step 9 *Note: Do not tighten the screw B fully until you have completed Step 11. 1 pc 2 pcs Step 10 2 pcs 2 pcs 2 pcs 10/18...
- Page 11 Step 11 *Note: Now fully tighten all screws A , B and D from Step 4 to 9. 2 pcs Step 12 Fasten *Note: Push firmly to fasten! Fasten 11/18...
- Page 12 Step 13 4 pcs 1 pc Step 14 1 pc 1 pc 6 pcs 12/18...
- Page 13 Step 15 Step 16 3 pcs 13/18...
- Page 14 Step 17 Step 18 14/18...
- Page 15 Step 19 2 sets Step 20 1 set 15/18...
-
Page 16: Remote Control
Maximum Load Capacity: Desk Top - 40 kg Headset Holder - 2 kg Cup Holder - 2 kg Cable Tray - 2 kg Your TYPHOON VIPER GAMING DESK 1500 BLACK is now complete and ready for use! Remote Control CAUTION: This is a tactile switch, not a physical button. -
Page 17: Care Advice
Care Advice Care Instructions - Melamine Finish Gaming Desk with LED light Keep away and protect from direct sunlight and heat. Do not place sharp materials(knife, fork, etc) directly onto your furniture as sharp material may scrape and damage the finish. Clean up spills quickly. - Page 18 Warranty 3 years Product Warranty – valid for Australian customers only Officeworks Ltd warrants that this product will be free from defects and work as intended for 3 years from the date of purchase by the original customer. If the product has any defects or does not work as intended during the Warranty Period, Officeworks will, at its election and at its expense, repair or replace the product.
