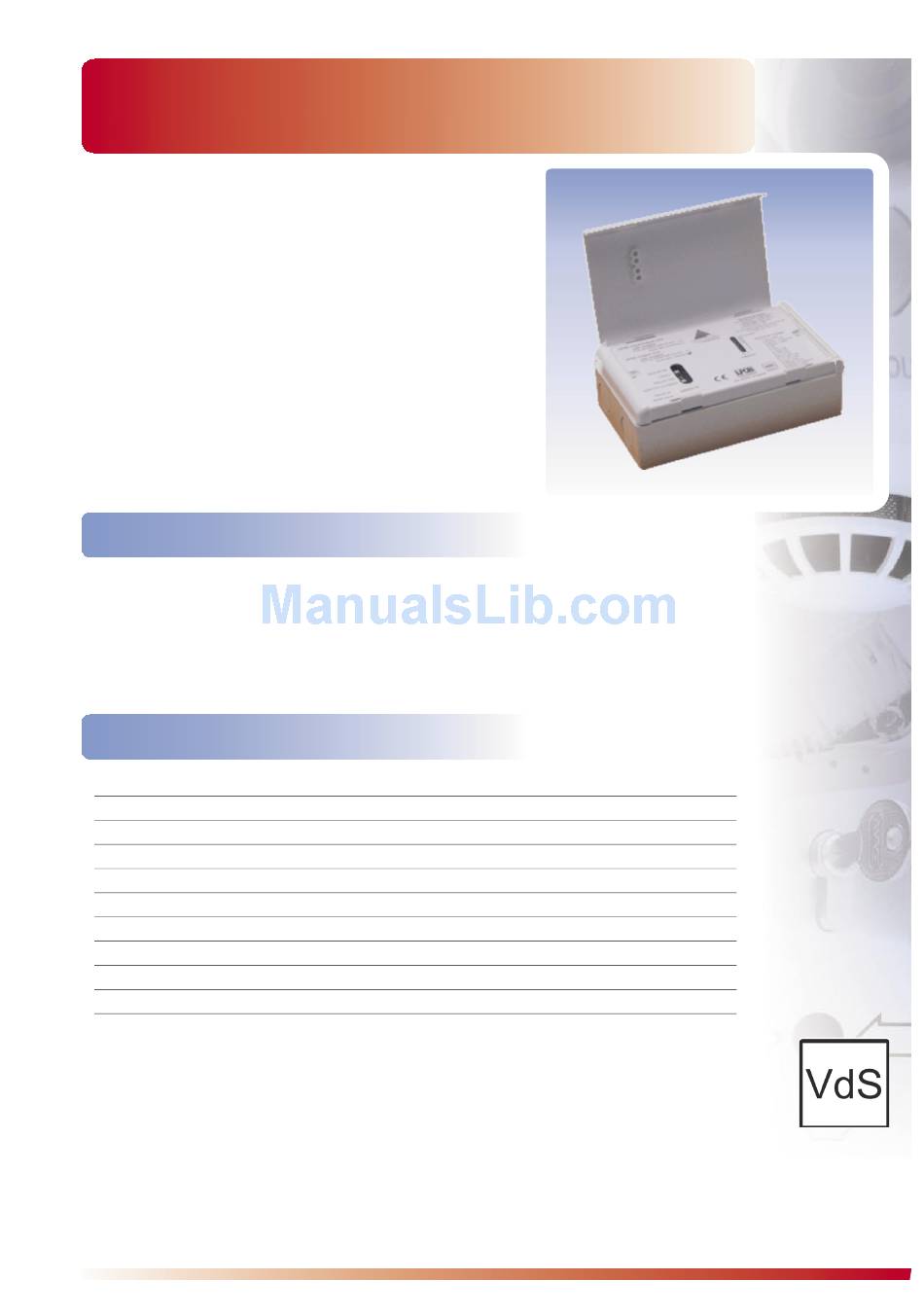

LST Vds 249074 Specifications

Control Module, voltage-free
SMK-55000-849
• ADM loop technology with
Apollo/Discovery protocol
• One relay output with two dry
change-over contacts
• Setting of module address by means
of address switch
• Integrated dual-isolator
Description
The addressable Control Module SMK-55000-849 ser-
ves for the actuation of external devices, such as fi re
controls and acoustical or optical signalling devices,
via the bidirectional communication on the ADM loop
with Apollo/Discovery protocol. The external devices
are actuated by means of a relay output with two dry
Specifi cations
Operating voltage
Current consumption
Contact rating
Ambient temperature
Dimensions L × W × H
Colour
Weight
Approval
Order number
Order name
Building Safety. Building Security.
© LABOR STRAUSS SICHERUNGSANLAGENBAU GMBH • A-1231 WIEN • WIEGELESTRASSE 36 • TEL +43 1 52114-0 • FAX +43 1 52114-27
OFFICE@LST.AT • WWW.LST.AT • ALL RIGHTS RESERVED
change-over contacts.
The address is easily selected by means of a built-in DIL
switch. The module has an integrated dual-isolator and
is fi tted into a plastic case. Status LEDs indicate the
condition of the relay and the dual-isolator.
Supply through loop voltage
720µA (quiescent)
1A/30VDC (resistive or inductive load)
-20°C to +70°C
150 × 90 × 48 (mm)
white
240g
VdS G201032
249074
Control Module/Anal./XP95/Apo SMK-55000-849
A
