LST FI750/RF/M1REL/BATT Manual

GENERAL DESCRIPTION
The FI750/RF/M1REL/BATT is a device that acts an interface between the wireless security system and any external device that works on a
"switch on / switch off" criteria.
As an example, it can provide activation power supply for conventional sounders or voltage-free relay contact switching capability for self-
powered devices.
FI750/RF/M1REL/BATT is battery powered and doesn't need any external power supply.
4 2
1
2
3
2
1
1) Screw hole for wall fixing (IP safe)
2) Knock out screw hole for wall fixing (not IP safe)
3) Printed circuit board stop
4) Printed circuit board fixing screw's housing
5) Printed circuit board fixing screw
6) Link program switch
DEPLOYMENT PROCEDURE
1) Select a location for the module.
See LOCATION SELECTION.
2) Unbox the module from its packaging.
3) Detach the top cover.
See HANDLING THE TOP COVER.
4) Uninstall the printed circuit board from the box.
See HANDLING THE PRINTED CIRCUIT BOARD.
5) Knock-out the required M16/20 input cabling entries.
See CABLE ENTRY.
6) Fix the module's box to the wall.
See WALL INSTALLATION.
WARNINGS AND LIMITATIONS
Our devices use high quality electronic components and plastic materials that are highly resistant to environmental
deterioration. However, after 10 years of continuous operation, it is advisable to replace the devices in order to
minimize the risk of reduced performance caused by external factors. Ensure that this device is only used with
compatible control panels. Detection systems must be checked, serviced and maintained on a regular basis to
confirm correct operation. Smoke sensors may respond differently to various kinds of smoke particles, thus applica-
tion advice should be sought for special risks. Sensors cannot respond correctly if barriers exist between them and
the fire location and may be affected by special environmental conditions. Refer to and follow national codes of
practice and other internationally recognized fire engineering standards. Appropriate risk assessment should be
carried out initially to determine correct design criteria and updated periodically.
Use only with compatible fire detection and alarm systems.
WARRANTY
All devices are supplied with the benefit of a limited 2 years warranty relating to faulty materials or manufacturing
defects, effective from the production date indicated on each product. This warranty is invalidated by mechanical or
electrical damage caused in the field by incorrect handling or usage. Product must be returned via your authorized
supplier for repair or replacement together with full information on any problem identified. Full details on our war-
ranty and product's returns policy can be obtained upon request.
Labor Strauss Sicherungsanlagenbau Gmbh - Wiegelestrasse 36 A-1230 Wien Austria
FI750/RF/M1REL/BATT
Wireless Battery Powered Output Module
5
4
1
9
2
6
3
3
1
7) Relay output's supervision port
8) Supervised output port
9) Relay output port
10) Battery A
11) Battery B
12) Tamper detection switch
5
13 13
8 7
10
11
12
3
7) Power up the module.
See POWERING UP - FIRST TIME USE.
See POWERING UP - RECOVERY.
8) Link the module to the system.
See LINKING - WAKE-UP.
See LINKING - ONE-BY-ONE.
9) Reinstall the printed circuit board.
See HANDLING THE PRINTED CIRCUIT BOARD.
10) Wire up the required output cabling to the module.
See WIRING.
11) Seal the module with its top cover.
See HANDLING THE TOP COVER.
12) Test the module.
See TESTING.
14
14
13) Knock-out M16/20 input cabling entry
14) Module box's sealing screws
Labor Strauss
Sicherungsanlagenbau
Wiegelestrasse 36 A-1230
Wien Austria
FI750/RF/M1REL/BATT
EN 54-25:2008
EN 54-18:2005
1
www.laborstrauss.com
14
14

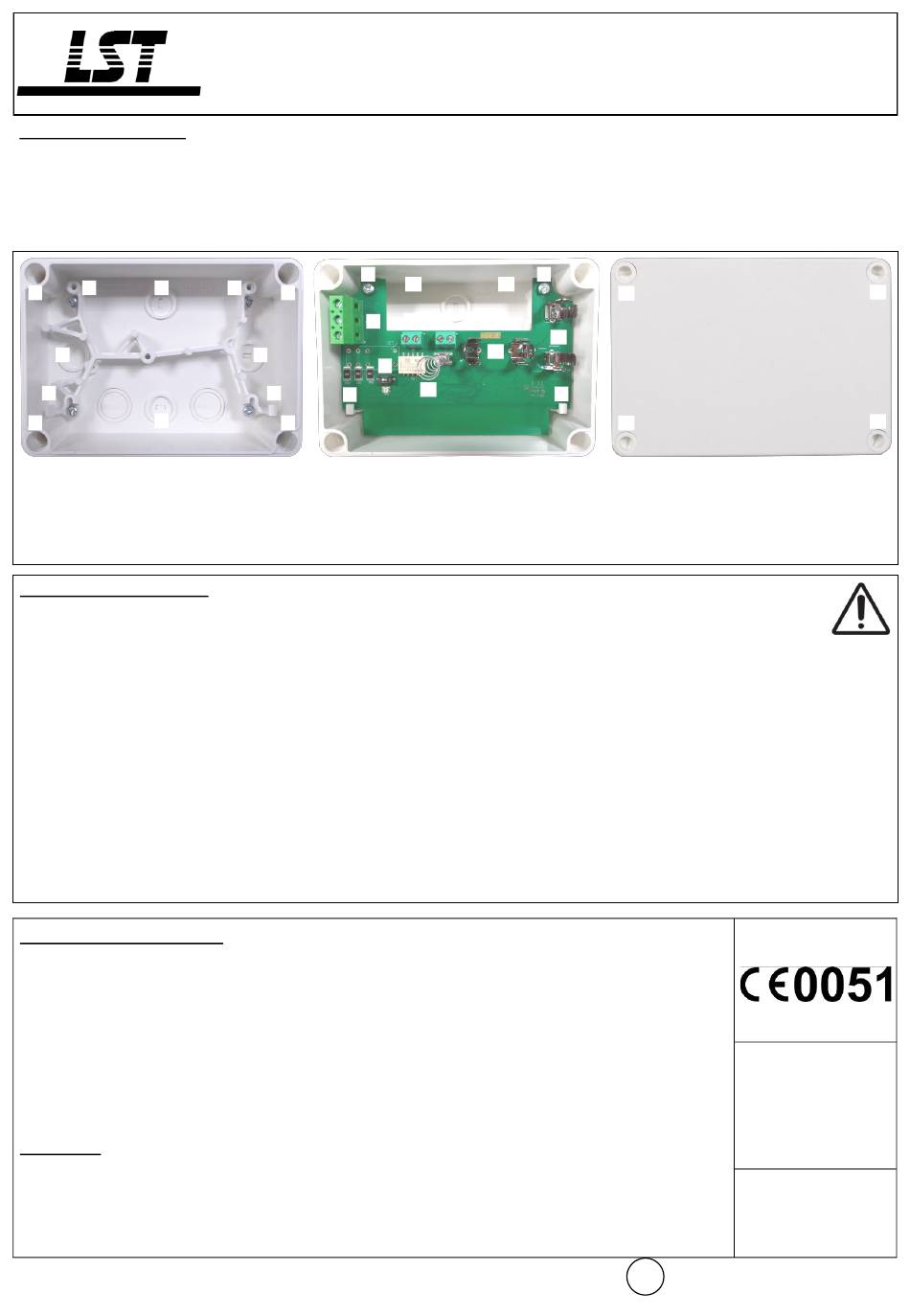

Picture 1
Gmbh
21
DOP109
