Resolution Products RE309 Manual

RE309 DSC-Compatible Glassbreak
Features
Sensor detects the sound of breaking glass.
•
360 o Omni-directional coverage.
•
Optional external contact connection.
•
Enrollment Button: Only used for enrolling.
•
Strong, reliable RF signal.
•
4-6 year battery life on CR123A battery.
•
Low Battery indication.
•
Key Instructions
Mount sensor at least 3.3 ft from desired protected window (Max 25 ft)
•
Needs to be in line of sight of window being protected (avoid corners and
•
doors blocking the sensor)
st
Glassbreak is 1 (outer) hardwire zone (ESN ends in 0)
•
External Contact connection uses 2
•
With Common Center Terminal
Activate by shorting inner and common, and insert battery
Enrolling:
•
Main Zone - 1 st ESN enrollment:
1. Put control panel in learn sensor mode
2. Push Enrollment Button to enroll glassbreak portion
nd
External Contact - 2 ESN Zone enrollment:
1. Put control panel in learn sensor mode
2. Open external contact
Testing:
•
Put sensor in Test Mode by: (use a DSC AFT-100 glassbreak simulator)
1) Put Tester on Tempered setting
2) Hold Glass Tester next to the Microphone and activate tester
3) The red LED will light for 4 seconds
4) Sensor sends alarm to control panel
Red LED will blink 1 time per second for 1 minute (Test Mode)
Every time the sensor hears the Glass Tester in Test Mode, the red LED
will light for 4 seconds and sensor sends alarm
In Test Mode
1. Test sensor distance – Holding tester near surface of the window
protected, activate tester with speaker pointed towards sensor
2. If the red LED does not light for 4 seconds, relocate sensor and
retest
3. When location is verified and a good test is confirmed, the red LED
will stop blinking 1 minute after last tester sound it hears
NOTE: The pattern recognition technology of this sensor ignores most false
alarm sounds, including glassbreak testers. (except in test mode)
Page 1 of 3
RE309_DSC-Compatible_Glassbreak
24- Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com
nd (inner) hardwire zone (ESN ends in 1)
12-Jun-15
Operation
Sensor detects glass breaking from framed windows, and sends alarm to
•
control panel
External Contact - 2 nd ESN
(if activated)
•
Enrollment Button (will send tamper signal) – Pushing it sends 1
•
holding enrollment button down, plunge battery sends 2
Supervisories, every hour (including Ext Contact, if activated)
•
Specifications
Sensing parameters: Maximum 25 feet
Mounting Spec: At least 3.3 feet from windows being
protected, and 4 feet from sources of noise
Mounting hardware: # 4 or #6 screws
Replacement Battery: CR123A 1550mAH
Temperature Range: 14 to 120
Housing dimensions: 4.25 x 3.13 x 1.70 inches
Specifications subject to change without notice.

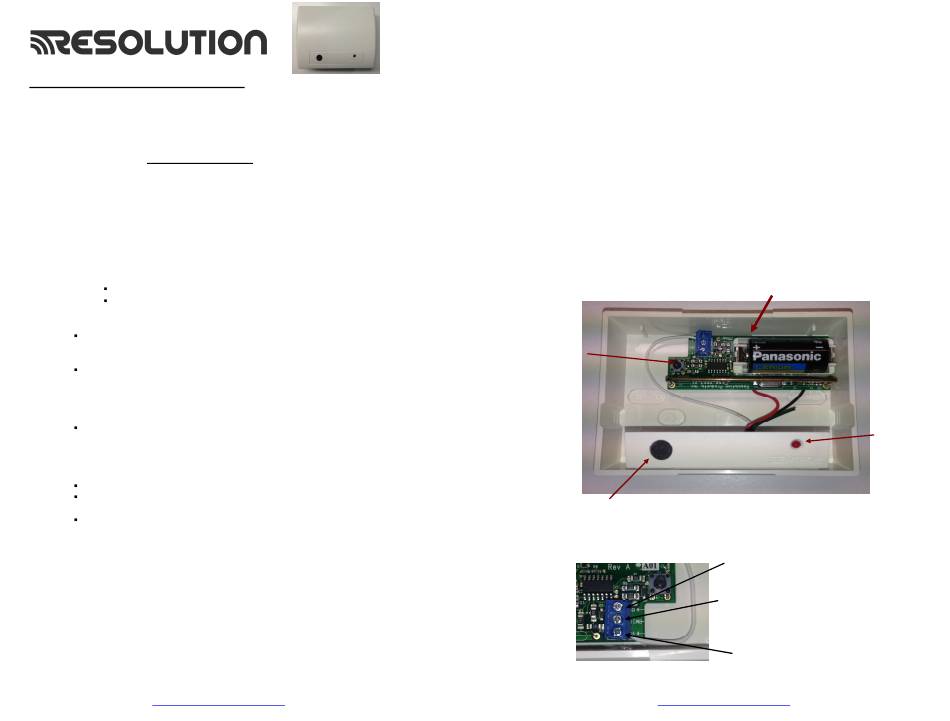

Internal Picture
Enrollment
Button
Microphone
Page 2 of 3
RE309_DSC-Compatible_Glassbreak
24- Hour Tech Support Line: (715)808-0164
www.ResolutionProducts.com
alarms on separate zone
st
ID and
nd
ESN
o
F
Battery
+
LED
nd
2 ESN
Optional
External
Contact
Center Common Terminal
1 st ESN
Glassbreak
12-Jun-15
