Step 6 - Rig And Place Unit; Positioning On Curb - Carrier WeatherMaker 48FCD16 Installation Instructions Manual

"B"
MAX WEIGHT
UNIT
lb
48FC**16 2150
NOTE(S):
1. Dimensions in () are in millimeters.
2. SPREADER BARS REQUIRED — Top damage will occur if spreader bars are not used.
3. Hook rigging shackles through holes in base rail, as shown in detail "A." Holes in base rails are centered around the unit center of gravity. 
Use wooden top to prevent rigging straps from damaging unit.
Step 6 — Rig and Place Unit
Keep unit upright and do not drop. Spreader bars are not required .
Rollers may be used to move unit across a roof. Level by using
unit frame as a reference. See Table 2 and Fig. 6 for additional in-
formation.
Lifting holes are provided in base rails as shown in Fig. 6. Refer to
rigging instructions on unit.
Rigging materials under unit (cardboard or wood to prevent base
pan damage) must be removed PRIOR to placing the unit on the
roof curb.
When using the standard side drain connection, ensure the red
plug in the alternate bottom connection is tight. Do this before set-
ting the unit in place. The red drain pan can be tightened with a
1/2-in. square socket drive extension. For further details see Install
External Condensate Trap and Line on page 15.
Before setting the unit onto the curb, recheck gasketing on curb.
CAUTION
UNIT DAMAGE HAZARD
Failure to follow this caution may result in equipment damage.
All panels must be in place when rigging. Unit is not designed
for handling by fork truck when packaging is removed.
If using top crate as spreader bar, once unit is set, carefully
lower wooden crate off building roof top to ground. Ensure
that no people or obstructions are below prior to lowering the
crate.

POSITIONING ON CURB

For full perimeter curbs CRRFCURB074A00 and 075A00, the
clearance between the roof curb and the front and rear base
rails should be 1/4-in. (6.4 mm). The clearance between the
curb and the end base rails should be 1/2-in. (13 mm). For ret-
rofit applications with curbs CRRFCURB003A01 and 4A01,
the unit should be positioned as shown in Fig. 7. Maintain the
15 1/2-in. (394 mm) and 8 5/8-in. (220 mm) clearances and al-
low the 22 5/16-in. (567 mm) dimension to float if necessary.
Place All Gasket in Place Before Placing
Unit on Roof Curb.
(914-1371)
36"-54"
"C"
"A" "A"
See Detail "A"
A
kg in.
975 116.0

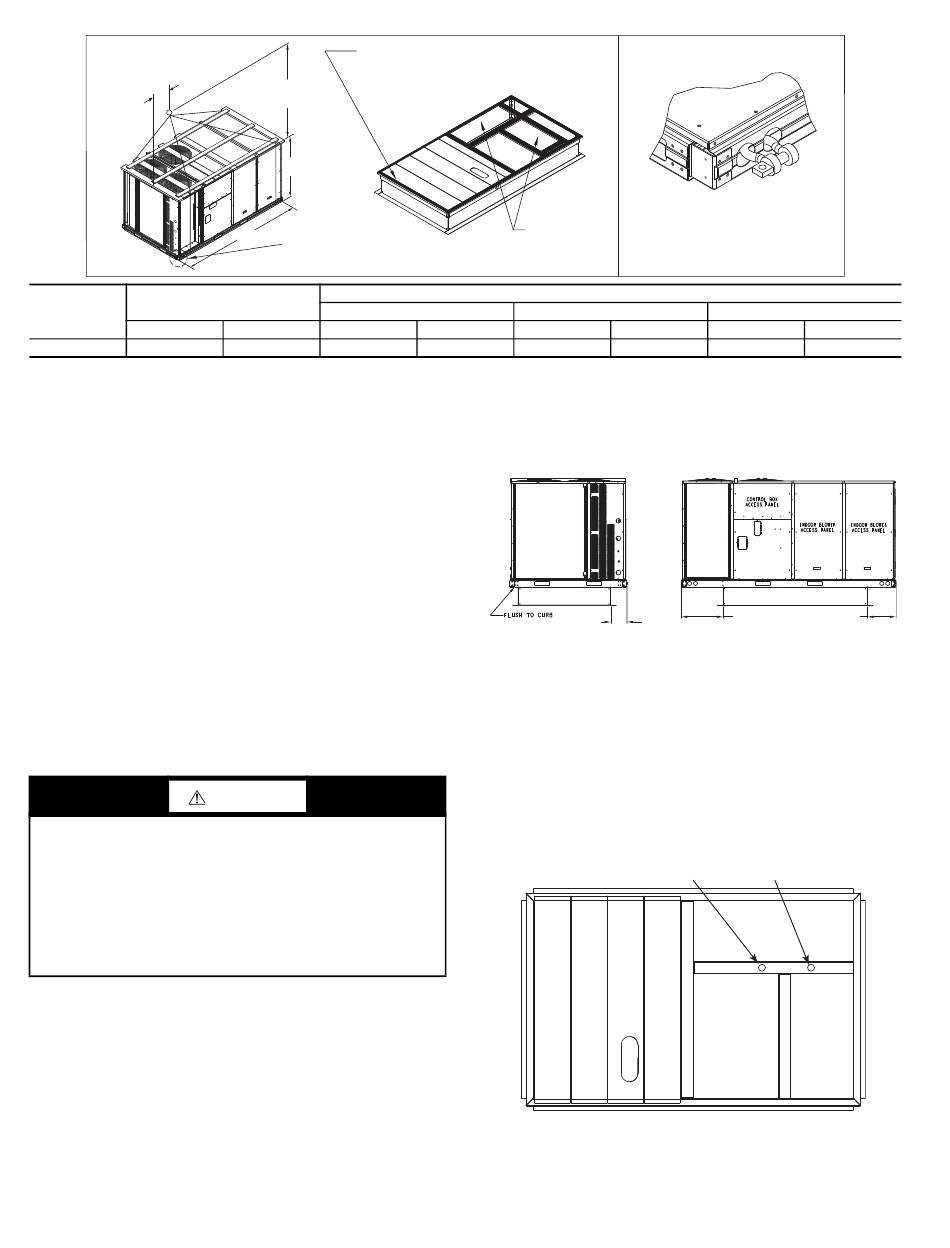

Fig. 6 — Rigging Details
Duct End
DIMENSIONS
B
mm in.
2945 55.5
8-5/8
Fig. 7 — Retrofit Installation Dimensions
If the alternative condensate drain location through the bottom of
the unit is used in conjunction with a retrofit curb, the hole in the
curb must be moved 12.5 in. (320 mm) towards the duct end of the
unit. See Fig. 8.
Although unit is weatherproof, guard against water from higher
level runoff and overhangs.
Remove all shipping materials and top skid. Remove extra center
post from the condenser end of the unit so that the condenser end
of the unit matches Fig. 28 and 29. Recycle or dispose of all ship-
ping materials.
Fig. 8 — Alternative Condensate Drain Hole
10
Detail "A"
C
mm in.
1410 59.5
22-5/16
Original New Position
Position (Moved 12.5 in.)
Positions
mm
1510
15-1/2
