Bryant 615AHA Owner's Manual

High wall ductless system sizes 06 to 36

Hide thumbs

Quick Links

Download this manual

615AHA

High Wall Ductless System

Sizes 06 to 36

A NOTE ABOUT SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

FCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

WIRELESS REMOTE CONTROLLER . . . . . . . . . . . . . . . . . . . . . . 6

INDOOR UNIT DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

ADDITIONAL FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

CARE AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

ERROR CODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Please read this Owner's Information Manual carefully before installing and using this appliance and keep this manual for future

reference.

For your convenience, please record the model and serial numbers of your new equipment in the spaces provided. This information, along

with the installation data and dealer contact information, will be helpful should your system require maintenance or service.

UNIT INFORMATION

Model # _______________________________

Serial # ________________________________

INSTALLATION INFORMATION

Date Installed ___________________________

Specifications subject to change without notice.

Owner's Manual

PAGE

NOTE TO EQUIPMENT OWNER:

DEALERSHIP CONTACT INFORMATION

Company Name: ______________________

Address:_____________________________

Phone Number:________________________

Technician Name:______________________

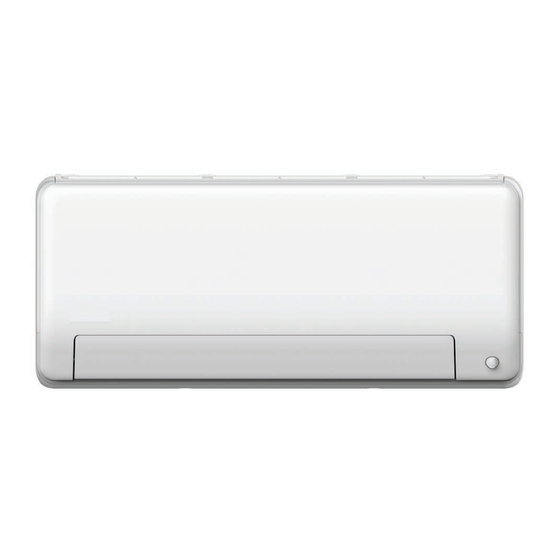

Fig. 1 - Sizes 06K - 36K

Troubleshooting

Need help?

Do you have a question about the 615AHA and is the answer not in the manual?

Questions and answers

Summary of Contents for Bryant 615AHA

Page 1: Table Of Contents
615AHA High Wall Ductless System Sizes 06 to 36 Owner’s Manual TABLE OF CONTENTS PAGE A NOTE ABOUT SAFETY ....... 2 GENERAL .
Page 2: A Note About Safety
615AHAQ: Owner’s Manual A NOTE ABOUT SAFETY WARNING Any time you see this symbol in manuals, instructions and on the unit, be aware of the potential for personal injury. There are 3 levels of precaution: 1. DANGER identifies the most serious hazards which will result in PERSONAL INJURY, DEATH AND / OR PROPERTY severe personal injury or death.
Page 3: Wireless Remote Control
615AHAQ: Owner’s Manual FAN Only COOLING In the FAN Only mode, the system filters and circulates the room air In the COOLING mode, the system cools, dries and filters the room air. without changing room air temperature. DEHUMIDIFICATION (DRY) AUTO In the DEHUMIDIFICATION mode, the system dries, filters and In the AUTO mode, the system automatically cools or heats the room slightly cools the room air temperature.
Page 4 615AHAQ: Owner’s Manual 3. Qualification of Workers The refrigerant charge shall be recovered into the correct recovery cylinders. Charging must be performed by the liquid charging Any maintenance, service and repair operations must be performed method. For appliances containing flammable refrigerants, the by skilled and authorized personnel.
Page 5: Fcc
615AHAQ: Owner’s Manual This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For Class B Digital Device NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the...
Page 6: Wireless Remote Controller
615AHAQ: Owner’s Manual WIRELESS REMOTE CONTROLLER Before you begin using your new air conditioner, familiarize yourself with the remote control. ON/OFF MODE Turns the unit on or off. Scroll through operation modes as follows: AUTO COOL TEMP Increases temperate in DR Y HE AT 1°F(0.5°C) increments.
Page 7 615AHAQ: Owner’s Manual WIRELESS REMOTE CONTROL LCD SCREEN INDICATORS Information appears when the remote controller is on. Active clean feature display Not applicable for this unit Fresh feature display Breeze Away display Sleep mode display Not applicable for this unit Follow me feature display Not applicable for this unit Wireless control feature display...
Page 8: Battery Installation
615AHAQ: Owner’s Manual REMOTE CONTROLLER BASIC REMOTE CONTROL OPERATION CAUTION Before operation, ensure the unit is plugged in and power is available. COOL Mode EQUIPMENT DAMAGE HAZARD Failure to follow this caution may result in equipment damage. Handle the control with care and avoid getting the control wet. IMPORTANT: The remote control can operate the unit from a distance of up to 26 ft.
Page 9 615AHAQ: Owner’s Manual HEAT Mode DRY Mode Boost Humidity Boost Humidity Fig. 7 — DRY Mode Fig. 5 — HEAT Mode 1. Press MODE to select the DRY mode. 1. Press MODE to select the HEAT mode. 2. Set your desired temperature using the UP or DOWN arrows 2.
Page 10: Remote Control Operation - Quick Start
615AHAQ: Owner’s Manual Remote Control Operation - Quick Start NOTE: NOTE: When transmitting a command from the remote control to If the unit is operating in DRY or AUTO mode, the fan speed the unit, be sure to point the control toward the right side of the unit. will be automatically set and cannot be adjusted.
Page 11: Indoor Unit Display
615AHAQ: Owner’s Manual INDOOR UNIT DISPLAY NOTE: Different models have different front panel and display window. Not all the indicators described below are available for the air conditioner you purchased. Please check the indoor display window of the unit you purchased. Illustrations in this manual are for explanatory purposes.
Page 12: Additional Features
615AHAQ: Owner’s Manual ADDITIONAL FEATURES Sleep NOTE: Every time the air conditioner is powered on, the unit emits a buzzing sound to indicate that the product has been Use SLEEP to decrease energy use while you sleep. Press SLEEP on the powered on normally.
Page 13: Care And Maintenance
615AHAQ: Owner’s Manual Manual control button Fig. 13 — Manual Control CARE AND MAINTENANCE CAUTION The cooling efficiency of your unit and your health would be damaged for the clogged AC. Make sure to clean the filter every Heating two weeks. Capacity Test Always turn off your AC system and disconnect its power supply...
Page 14 615AHAQ: Owner’s Manual 2. If your filter has a small air freshening filter, unclip it from the larger Maintenance - Long Periods of Non-Use filter. Clean this air freshening filter with a hand-held vacuum. If you plan not to use your air conditioner for an (Front) (Back) extended period of time, do the following:...
Page 15: Troubleshooting
615AHAQ: Owner’s Manual TROUBLESHOOTING WARNING SAFETY PRECAUTIONS If any of the following conditions occur, turn off the unit immediately: The power cord is damaged or abnormally warm. You smell a burning odor. The unit emits loud or abnormal sounds. A power fuse blows or the circuit breaker frequently trips. Water or other objects fall into or out of the unit.
Page 16: Troubleshooting (Cont)
615AHAQ: Owner’s Manual TROUBLESHOOTING (CONT) When issues occur, please review the following common issues in Table 2 prior to contacting a service company. Table 2 — Troubleshooting Tips Problem Possible Causes Solution Temperature setting may be higher than the ambient Lower the temperature setting room temperature The heat exchanger on the indoor or outdoor unit is...
Page 17: Error Codes
615AHAQ: Owner’s Manual ERROR CODES Table 3 — Error Codes Display Malfunction and Protection Indication EC07 ODU Fan Speed Out of Control ODU EEPROM Parameter Error EC51 ODU Coil Temperature Sensor(T3) error EC52 ODU Ambient Temperature Sensor (T4) Error EC53 COMP.
Page 18 615AHAQ: Owner’s Manual © 2024 Carrier. All rights reserved. Edition Date: 07/24 Catalog No: 615AHA-01OM A Carrier Company Replaces: NEW Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
