This manual is intended to meet the manufacturer's instructions as
required by ANSI Z359.14 and should be used as part
of an employee training program as required by OSHA.
Copyright Safewaze 2022
Cable
FS-FSP1250-G
FS-EX10-100-G
FS-FSWP1265-G
FS-EX1080-G
SRL Instruction Manual
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SafeWaze NORTHSTAR classic FS-FSWP1265-G
Summary of Contents for SafeWaze NORTHSTAR classic FS-FSWP1265-G

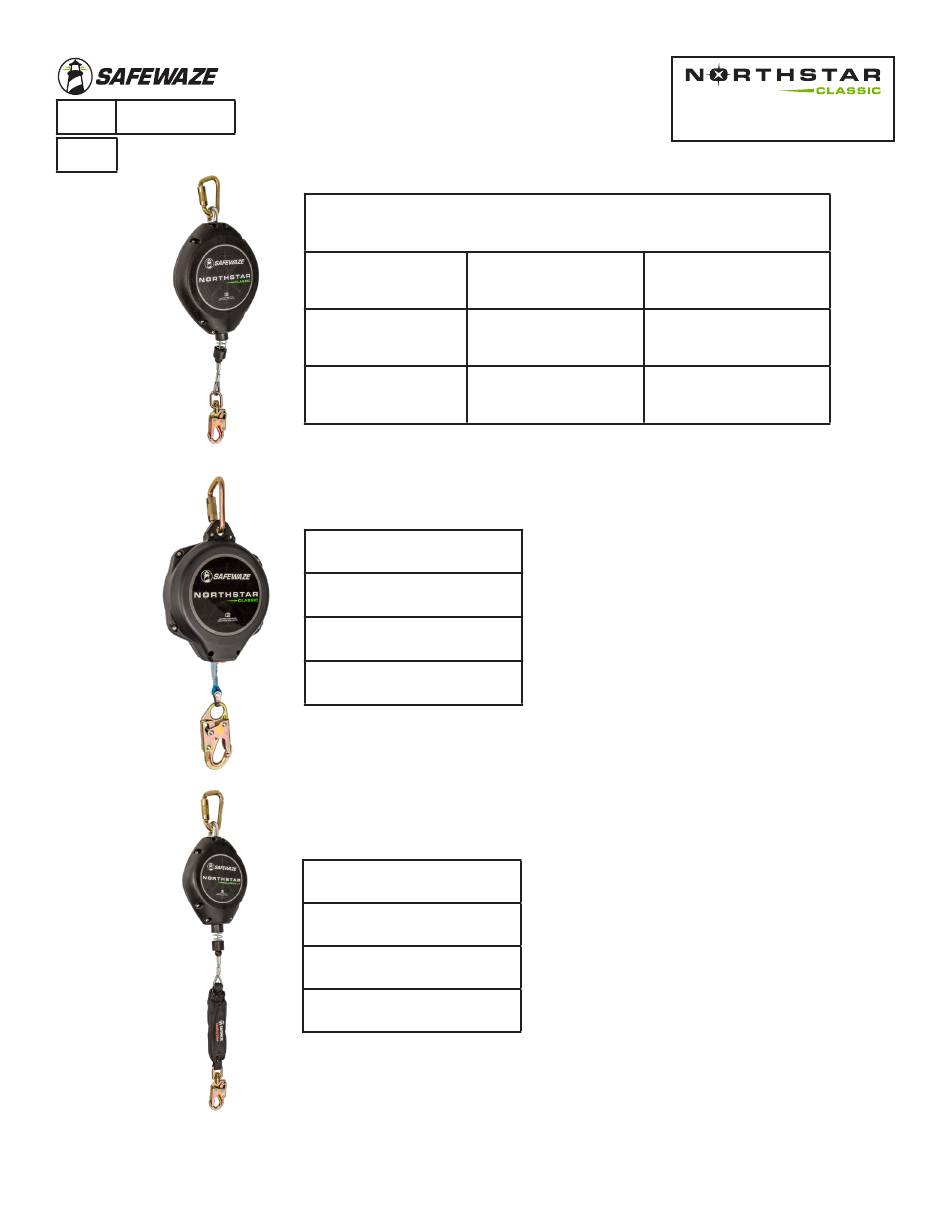

- Page 1 Leading Edge (LE) FS9020 FS9030 FS9050 This manual is intended to meet the manufacturer’s instructions as required by ANSI Z359.14 and should be used as part of an employee training program as required by OSHA. Page 1 Copyright Safewaze 2022 220-00067...
-
Page 2: Safety Information And Precautions
Use of this equipment for any other purpose, such as material handling, sports activities, or other action not described in these User Instructions is not approved by Safewaze. Use of this equipment in a manner outside the scope of those covered within this Manual can result in serious injury or death. - Page 3 SRL units extend and retract freely with normal movement. If a fall occurs the system locks automatically, arresting the fall, and keeps the worker from falling further. Tension should always be maintained on the lifeline during retraction of cable or web back into the housing. Never allow the lifeline to “freewheel” back into the housing in an uncontrolled manner. Page 3 Copyright Safewaze 2022...
- Page 4 1.1 PURPOSE Safewaze Northstar Classic SRLs are designed for use as a component of a complete Personal Fall Arrest System (PFAS). The purpose is to prevent the fall or limit the potential fall arrest forces as much as possible. A variety of connection and configuration options are available to suit any users preference or jobsite requirements.
-
Page 5: Inspection Frequency
During normal operations, the lifeline constituent of the SRL will extend and retract freely with no slack or hesitation as the worker moves at normal speeds. In the event of a fall, Safewaze SRLs are equipped with a speed sensing braking system. The braking system will activate, stopping the fall, and absorbing much of the energy created by the fall. -
Page 6: Making Connections
Do not use equipment that is not compatible. Ensure all connectors are fully closed and locked. Safewaze connectors (snap hooks and carabiners) are designed to be used only as specified in each product’s user’s instructions. (See Figure 2) for examples of inappropriate connections. -
Page 7: Body Support
Only a Full Body Harness (FBH) may be used with this equipment. The Full Body Harness must connect to the SRL via the dorsal D-ring. Safewaze SRLs are not rated for use with a body belt. Use of Safewaze SRLs with a body belt may result in injury. Figure 3 illustrates typical connection of Safewaze SRLs to the Dorsal D-ring of the Full Body Harness. - Page 8 < 90˚ LE SRL COMPONENT SPECIFICATIONS HOUSING High-strength polymer housing DRUM Aluminum LIFELINE 3/16” Galvanized Steel Cable SWIVEL Aluminum FASTENERS Aluminum / Steel / Stainless Steel LOCKING PAWLS Steel MAIN SHAFT Steel SPRINGS Carbon Steel Page 8 Copyright Safewaze 2022...
- Page 9 Average Arresting Force 900 lbf (4.0 kN) Claimed Maximum Arresting Distance 47 in (1.2 m) Minimum Fall Clearance Required 14.5 ft. (4.41 m) Maximum Free Fall 5 ft. (1.5 m) Minimum Setback Distance 3 ft. (0 m) Page 9 Copyright Safewaze 2022...
- Page 10 Maximum Arresting Force 1,800 lbf (8.0 kN) Average Arresting Force 900 lbf (4.0 kN) Claimed Maximum Arresting Distance 54 in. (1.5 m) Minimum Fall Clearance Required 8.5 ft (2.05 m) Maximum Free Fall 0 ft. (0 m) Page 10 Copyright Safewaze 2022...
- Page 11 0’ 2’ 8’ 12’ 14’ 16’ 0’ 20’ 22’ 30’ 32’ 34’ 36’ Dorsal D-ring 0’ 2’ 4’ 6’ 8’ 10’ 12’ 14’ 16’ 18’ 20’ 22’ 24’ 26’ 28’ 30’ 32’ 34’ 36’ X-AXIS Page 11 Copyright Safewaze 2022...
-
Page 12: Operation
Select an anchorage location with minimal free fall and swing fall hazards (See Section 2.0). Select a rigid anchorage point capable of sustaining static loads as defined in Section 2.0. Where anchoring overhead is not feasible, Safewaze SRLs may be secured to anchorage points below the level of the user’s dorsal D-ring, but never below the user’s feet. - Page 13 Do not allow the lifelines to pass under arms or between legs. 6.0 SPECIFICATIONS 6.1 PERFORMANCE Safewaze SRLs have been tested and certified to the performance requirements of the standard(s) identified on their ID labels. See Tables 10 and 11 for performance specifications. 6.2 MAXIMUM ARREST FORCE AND MAXIMUM ARREST DISTANCE SRLs documented in this instruction manual meet the following Arrest Force and Arrest Distance maximums when tested in accordance with Section 4.2.1 of ANSI Z359.14.
-
Page 14: Product Life
8.5 DISPOSAL Dispose of the Safewaze SRL if it has been damaged by fall arrest forces or inspection reveals an unsafe or defective condition that cannot be repaired by an authorized Safewaze Service Center. Before disposing of the SRL, cut the lifeline in half so that it is not mistakenly reused. - Page 15 Swivel Top Lifeline Label Housing (Cable) ANSI Z359.14, ANSI A10.32 OSHA 1910.66, OSHA 1926.502 Lifeline Swivel Fall (Cable) Indicating Snap Protective Hook Label Cover Additional LE Labeling Integral Energy Absorber Swivel Fall Indicating Snap Hook Page 15 Copyright Safewaze 2022...
-
Page 16: Inspection Form
Test Braking / Locking Function PASS FAIL NOTE CONNECTORS Connector (Self-Closing & Locking) NOTES Impact Indicator Hook Body / Rivets Corrosion Pitting / Nicks 225 Wilshire Avenue SW, Concord NC 28025 • 800-230-0319 • www.safewaze.com Page 16 Copyright Safewaze 2022... -
Page 17: Inspection Log
INSPECTION LOG Date Inspection Items Corrective Initials Noted Action Page 17 Copyright Safewaze 2022... - Page 18 Safewaze 225 Wilshire Ave SW Concord, NC 28025 PHONE: 1-800-230-0319 FAX: 1-704-262-9051 WEB: safewaze.com EMAIL: info@safewaze.com Page 18 Copyright Safewaze 2022...
