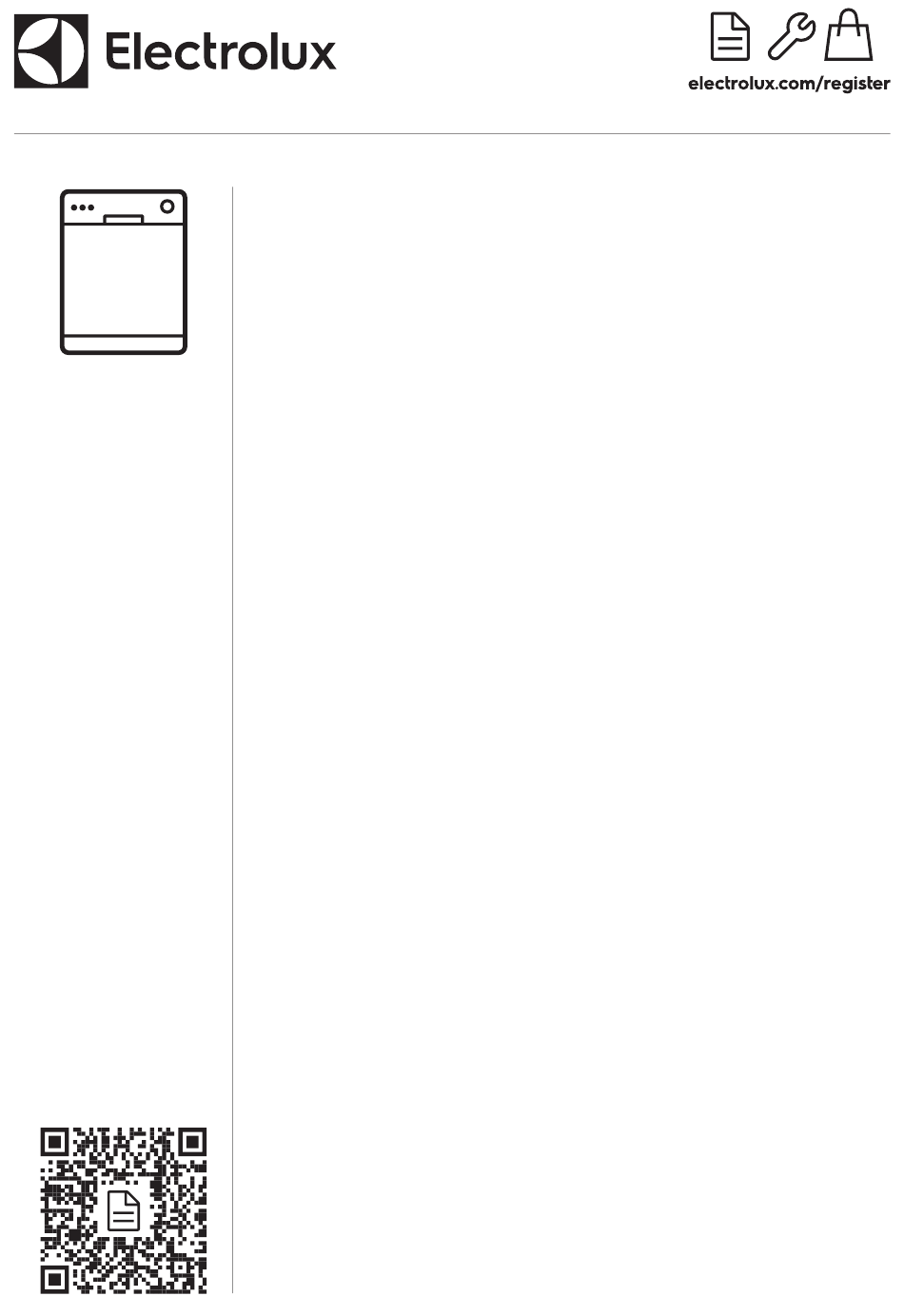

- Page 1 EN User Manual | Dishwasher ESM63300SX...
-
Page 2: Table Of Contents
Welcome to Electrolux! Thank you for choosing our appliance. Get usage advice, brochures, trouble shooter, service and repair information: www.electrolux.com/support Subject to change without notice. CONTENTS 1. SAFETY INFORMATION................2 2. SAFETY INSTRUCTIONS................4 3. PRODUCT DESCRIPTION................6 4. CONTROL PANEL..................7 5. -
Page 3: General Safety
• Children of less than 3 years of age should be kept away from the appliance unless continuously supervised. • Children should be supervised to ensure that they do not play with the appliance. • Keep detergents away from children. •... -
Page 4: Safety Instructions
• If the appliance has ventilation openings in the base, they must not be covered e.g. by a carpet. • The appliance is to be connected to the water mains using the new supplied hose-sets. Old hose sets must not be reused. - Page 5 2.4 Use sensors, software and firmware including reset software. The following spare parts • Do not put flammable products or items are available for at least 10 years after the that are wet with flammable products in, model has been discontinued: door hinge near or on the appliance.
-
Page 6: Product Description
3. PRODUCT DESCRIPTION Upper spray arms Lower basket Lower spray arm Upper basket Filters Cutlery drawer Rating plate Salt container The graphic is a general overview. For Air vent more details, refer to other chapters or documents provided with the appliance. Rinse aid dispenser Detergent dispenser ENGLISH... -
Page 7: Control Panel
4. CONTROL PANEL On/off button Option button Program button Indicators Programme indicators Start button Display Delay button 4.1 Indicators Indicator Description Salt indicator. It is on when the salt container needs refilling. It is always off while the pro‐ gramme operates. Rinse aid indicator. -
Page 8: Programmes
Indicator Description ExtraHygiene indicator. 5. PROGRAMMES The order of the programmes in the table may not reflect their sequence on the control panel. Programme Dishwasher Degree of Programme phases Options load soil Crockery, cut‐ Normal, lightly • Prewash • ExtraPower lery, pots, pans dried-on •... -
Page 9: Consumption Values
Programme Dishwasher Degree of Programme phases Options load soil None Cleaning the • Cleaning 70 °C appliance inte‐ • Intermediate rinse rior • Final rinse • AirDry • Prewash This programme offers the most efficient use of water and energy consumption for crockery and cutlery with normal soil. -
Page 10: Options
For any other questions regarding your dishwasher, refer to the service book provided with your appliance. 6. OPTIONS prevents rapid changes in the dishwashing temperature of the selected programme and reduces it to 45 °C. Desired options must be activated every time before you start a programme. -
Page 11: How To Set The Programme Selection Mode
The saved settings remain valid until you To enter user mode, press and hold change them again. simultaneously until the indicators flash and the How to set the programme selection display is blank. mode 7.2 The water softener The appliance is in programme selection The water softener removes minerals from mode when the programme indicator the water supply, which would have a... -
Page 12: The Rinse Aid Level
Regeneration process when it occurs at any point at the beginning For the correct water softener operation, the or in the middle of a programme. resin of the softener device needs to be regenerated regularly. This process is automatic and is the part of the normal All the consumption values mentioned in dishwasher operation. -
Page 13: Before First Use
When AirDry opens the door, the display • The indicator still flashes. shows the remaining time of the running • The remaining indicators are off. programme. • The display shows the current setting: e.g. = level 4. CAUTION! 2. Press repeatedly to change the Do not try to close the appliance door setting. -
Page 14: Daily Use
8.2 How to fill the rinse aid The salt is used to recharge the resin in the dispenser water softener and to assure good washing results in daily use. How to fill the salt container 1. Turn the cap of the salt container counterclockwise and remove it. -
Page 15: Using The Detergent
9.2 Setting and starting a • If the rinse aid indicator is on, fill the programme rinse aid dispenser. 3. Load the baskets. 4. Add the detergent. The Auto Off function 5. Set and start a programme suitable for the type of load and the degree of soil. This function decreases energy consumption 9.1 Using the detergent by deactivating automatically the appliance... -
Page 16: Cancelling The Delay Start While The Countdown Operates
energy consumption and the programme Press and hold simultaneously duration. After closing the door, the appliance until the appliance is in programme selection continues from the point of interruption. mode. Cancelling the programme If the door is opened for more than 30 seconds during the drying phase, the Press and hold simultaneously running programme ends. -
Page 17: Using Salt, Rinse Aid And Detergent
– Make sure that the current level of the 3. Start the shortest programme with a water softener agrees with the rinsing phase. Do not add detergent and hardness of the water supply. do put dishes in the baskets. – Follow the instructions in the chapter 4. -
Page 18: Care And Cleaning
10.6 Unloading the baskets 1. Let the tableware cool down before you After the programme is completed, water remove it from the appliance. Hot items can still remain on the inside surfaces of can be easily damaged. the appliance. 2. First remove items from the lower basket, then from the upper basket. -
Page 19: Cleaning The Lower Spray Arm
7. Reassemble the filters (B) and (C). 8. Put back the filter (B) in the flat filter (A). Turn it clockwise until it locks. 2. Remove the filter (C) out of filter (B). 3. Remove the flat filter (A). 4. Wash the filters. CAUTION! An incorrect position of the filters can cause bad washing results and damage... - Page 20 The upper spray arms are placed under the upper basket. The spray arms (B) are installed in the duct (A) with the mounting elements (C). 2. Wash the spray arm under running water. Use a thin pointed tool, e.g. a toothpick, to remove particles of soil from the holes.
-
Page 21: Troubleshooting
counterclockwise. Make sure that the mounting element locks into place. 12. TROUBLESHOOTING Refer to the below table for information on WARNING! possible problems. Improper repair of the appliance may With some problems, the display shows an pose a danger to the safety of the user. alarm code. - Page 22 Problem and alarm code Possible cause and solution Malfunction of the water level detec‐ • Make sure that the filters are clean. tion sensor. • Switch the appliance off and on. The display shows i41 - i44. Malfunction of the wash pump or the •...
- Page 23 Problem and alarm code Possible cause and solution The appliance trips the circuit-beak‐ • The amperage is insufficient to supply simultaneously all the applian‐ ces in use. Check the socket amperage and the capacity of the meter or turn off one of the appliances in use. •...
- Page 24 Problem Possible cause and solution The interior of the appliance is wet. • This is not a defect of the appliance. Humidity condensates on the appliance walls. Unusual foam during washing. • Use the detergent designed specifically for dishwashers. • Use a detergent from a different manufacturer.
-
Page 25: Technical Information
13. TECHNICAL INFORMATION Dimensions Width / height / depth (mm) 446 / 818 - 878 / 575 Voltage (V) 220 - 240 Electrical connection Frequency (Hz) Water supply pressure Min. / max. MPa (bar) 0.05 (0.5) / 1 (10) Water supply min. - Page 28 156825130-A-422023...
