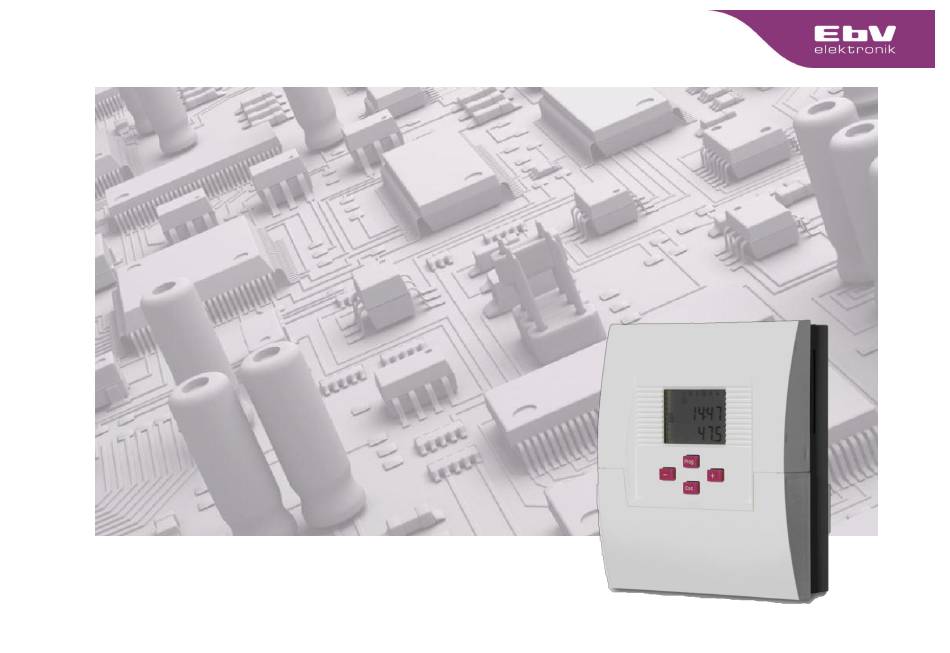

- Page 1 CETA Temperature difference control Menu Operating...
- Page 2 Control System CETA Operating...
- Page 3 Control System CETA Operating - Entry (Menu, parameter) - safe...
- Page 4 Control System CETA Operating - Return (Menu, Parameter without safing)
- Page 5 Control System CETA Operating - Navigation Selection of menu items - Parameter adjustment...
- Page 6 Control System CETA Operating - Navigation Selection of menu items - Parameter adjustment...
- Page 7 Control System CETA Operating Basic Display From the basic display, shortly press the "Prog" button to go to the menu selection. Menu level selection Menu 01 … 28 (Device-specific)
- Page 8 Control System CETA Operating Basic Display Menu: Menu level selection 01 = Info 03 = System 08 = Delta T1 27 = Sensor calibration Menu 01 … 28 28 = Relay test (Device-specific)
- Page 9 Control System CETA Operating Basic Display Menu level selection Parameter selection Parameter 01 Parameter 02 Menu Last parameter of the selected of the selected of the selected 01 … 28 menu menu menu (Device-specific) Adjustment of The setting Adjustment the selected range see op.
- Page 10 Control System CETA Operating The availability of the individual menu levels, the parameters as well as the settings of the individual parameters can be found in the enclosed operating instructions. Also to be found on www.ebv-gmbh.com...
- Page 11 Control System CETA Operating - manual mode Basic Display Each CETA control has the possibility to activate a manual mode. The manual mode is individually adapted to the control function. Manual mode...
- Page 12 Control System CETA Operating – manual mode Basic Display From the basic display, press the "Prog" key for 3 seconds to activate manual mode. Manual mode...
- Page 13 Control System CETA Operating – manual mode CETA 100 Basic Display Use the key to switch the pump ON / OFF. 0 = Pump OFF 1 = Pump ON (continuous operation) Manual mode The key is used to end manual operation.
- Page 14 Control System CETA Error codes „Error“flashes in the display The error code is displayed alternately with the basic display. Error codes 11-0 F1 Interruption 13-0 F3 Interruption 11-1 F1 Short circuit 13-1 F3 Short circuit 12-0 F2 Interruption 14-0 F4 Interruption 12-1 F2 Short circuit 14-1...
- Page 15 Control System CETA Menu 01 (INFO)
