  • Page 1 THETA Controller system Operating...
  • Page 2 Controller THETA Installation and settings AUTO-SET funktion for registration of sense Press button during test of display Switch on AC...

  • Page 3: Operating Philosophy

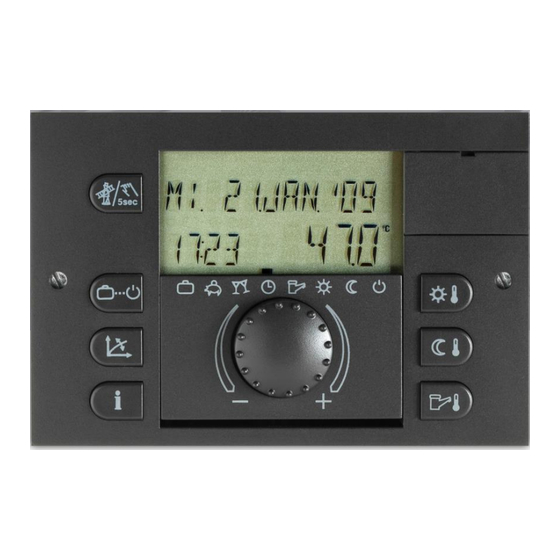

    Controller THETA Installation and settings Operating philosophy central button for most settings is the central turn-push button „flashing“ display can be changed by turning the central button By pressing the central button 3 sec display will jump in menu selection Then pressing the central button short display will jump into specific menu and parameters Save settings by pressing the central button short.
  • Page 4 Controller THETA Installation and settings One touch buttons Button chimney sweeper/manual mode This button has two functions: 1. Press short→ start chimney sweeper function, exhaust measurement for 20 minutes (all heating demand set to MAX. ). If central button is pressed during exhaust measurement, then STB is tested. 2.
  • Page 5 Controller THETA Installation and settings One touch buttons Button chimney sweeper manual mode Measurement of exhaust and manual operation can be stopped by pressing the button for a short time...
  • Page 6 Controller THETA Installation and settings One touch buttons button mode Button MODE is used for setting the operation mode of the heating circuits (HC/hot water) There are following permanent mode available: AUTOMATIK / SUMMER hot water*/ HEATING / REDUCED / STANDBY and temporary mode: VACATION UNTIL / ABSENSE UNTIL / PARTY UNTIL not used if connected to THETA-RFF...
  • Page 7 Controller THETA Installation and settings One touch buttons button mode Pressing button mode for 3 sec. will reset to AUTOMATIK mode Pressing button mode for short time will bring you back from all menu and parameter layers to the start display. If parameters have been changed before, they will not be saved.
  • Page 8 Controller THETA Installation and settings One touch buttons button Heating curve Button heating curve is used for setting of the heating curve for the defined heat circuits...
  • Page 9 Controller THETA Installation and settings One touch buttons button INFO Press INFO button for short time will open the Info-Menü. Here are all information like temperature and status of the outputs available for analysis of the current operation situation. In the display are real values (left hand of the display) as well as set values .
  • Page 10 Controller THETA Installation and settings One touch buttons button INFO Pressing button INFO for short time works like return function and will bring you back in the upper display layer. Parameters which have been changed before will not be saved!. They must be saved before returning with the INFO button.
  • Page 11 Controller THETA Installation and settings One touch buttons button INFO Press button INFO for 3 sec. in the start display and „INFO-time“ appears. In this layer setting of the time will be done.
  • Page 12 Controller THETA Installation and settings One touch buttons button SUN (room-temperature day) Press button SUN short will guide you to „room temperature day“. This value is not an absolute value, but an offset in relation to the „room temperature day“ which is used in the cycle time...
  • Page 13 Controller THETA Installation and settings One touch buttons button SUN (room-temperature day) Press button SUN 3 sec. and temporary mode „PARTY UNTIL“ appears. By pressing the button SUN for a short time the PARTY MODE will be activated.
  • Page 14 Controller THETA Installation and settings One touch buttons button Moon (room-temperature night) Press button Moon shortly will show setting of the room temperature night. Note: this value is an absolute value which is considered for room temperature...
  • Page 15 Controller THETA Installation and settings One touch buttons button Moon (room-temperature night) Press button MOON 3 sec. and temporary mode „ABSENSE UNTIL“ will appear. By pressing the button MOON for a short time the ABSENSE MODE will be activated.
  • Page 16 Controller THETA Installation and settings One touch buttons button Hot water Press button hot water for short time, display will show hot water temperature day (specified value).
  • Page 17 Controller THETA Installation and settings One touch buttons button Hot water Press button HOT WATER for 3 sec. and temporary mode HOT WATER CHARGING will appear. Activation of this mode by pressing the button HOT WATER for short time.
