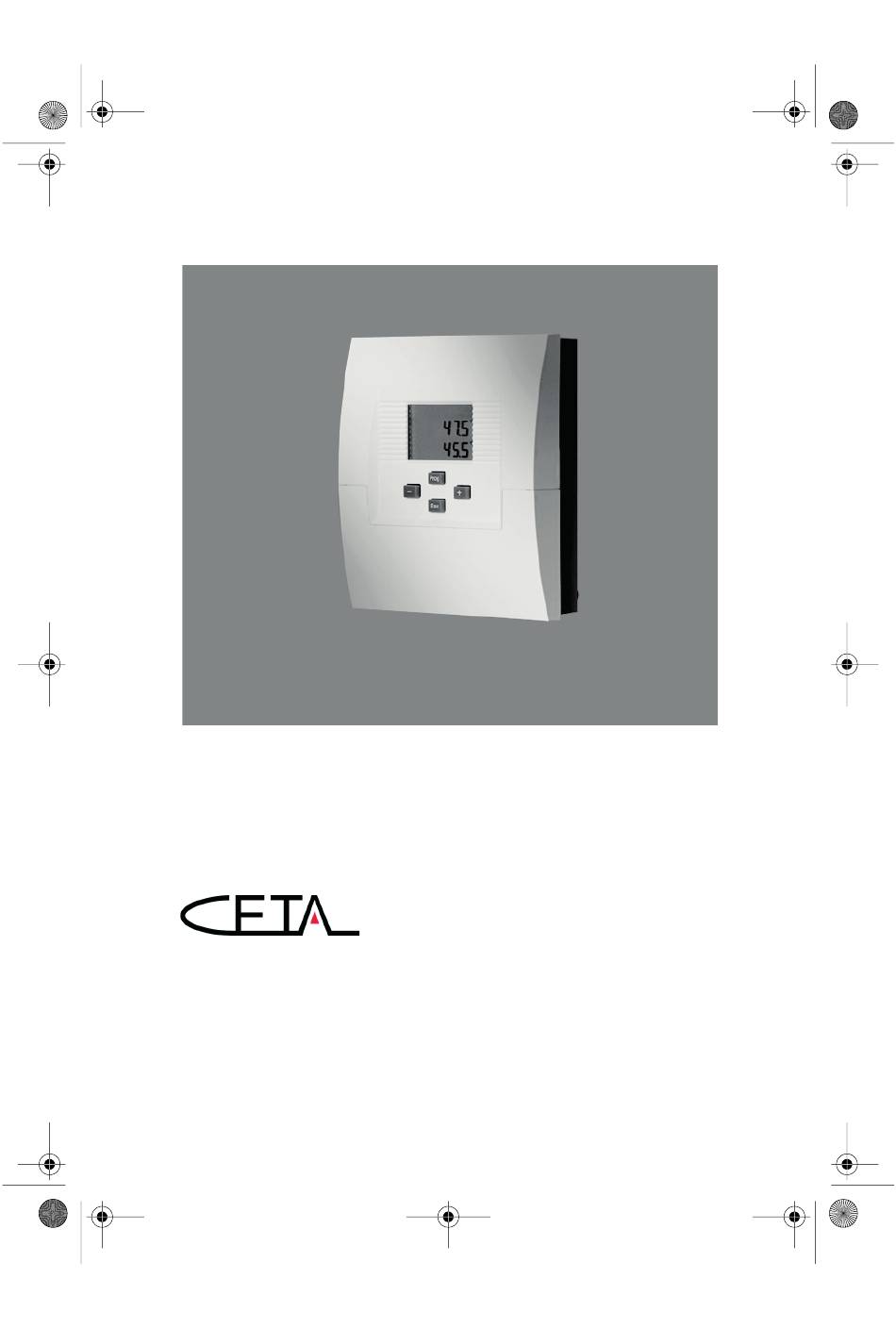

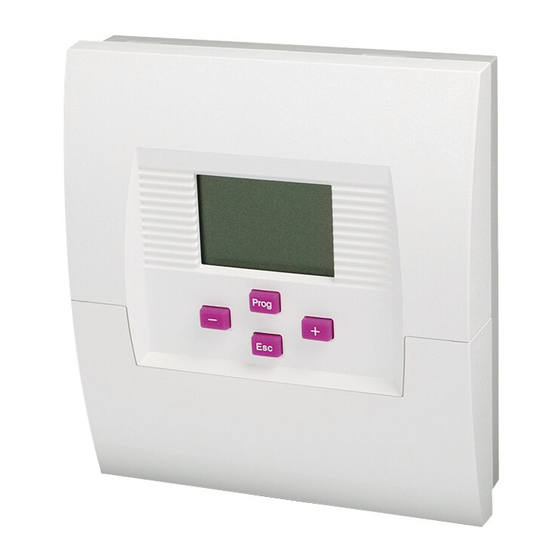

- Page 1 0450021014_1308-22_BA_CETA100_EbV_EN.book Seite 1 Donnerstag, 21. Februar 2013 11:46 11 Operating manual Differential temperature control Version 1308-22 Art. 0450021014...
-
Page 2: Table Of Contents
0450021014_1308-22_BA_CETA100_EbV_EN.book Seite 2 Donnerstag, 21. Februar 2013 11:46 11 Contents Scope of delivery .......................1 General ..........................1 Intended use ........................1 Safety ..........................1 General key functions ...................... 2 Version display (when starting) ..................2 Basic display ........................2 Function with direct access .................... 3 Sensor resistance values ....................4 Menu level ......................... -
Page 3: Scope Of Delivery
0450021014_1308-22_BA_CETA100_EbV_EN.book Seite 1 Donnerstag, 21. Februar 2013 11:46 11 Scope of delivery 1. 1x Central unit CETA 100 2. 1x Tank immersion sensor KVT 20/2/6 3. 1x Collector sensor PT1000/6 4. 8x Screw, plate 2,9x19 mm 5. 3x Screw assembly 4x35 mm 6. -
Page 4: General Key Functions
0450021014_1308-22_BA_CETA100_EbV_EN.book Seite 2 Donnerstag, 21. Februar 2013 11:46 11 General key functions General key functions Prog •Change selected submenus •Change (parameter) setting •Save value + (Plus) or - (Minus) •Change parameter •Change menu item •Exit setting •Keep old value •Select next higher menu level Esc-Lang •Return to basic display 2. -
Page 5: Function With Direct Access
0450021014_1308-22_BA_CETA100_EbV_EN.book Seite 3 Donnerstag, 21. Februar 2013 11:46 11 Function with direct access 4. Function with direct access Manual operation Controller is in manual mode 0...1 Pump function — Activate by pressing and holding button — Change pump function via buttons —... -
Page 6: Sensor Resistance Values
0450021014_1308-22_BA_CETA100_EbV_EN.book Seite 4 Donnerstag, 21. Februar 2013 11:46 11 Sensor resistance values 5. Sensor resistance values Depending on temperature: PT1000 KVT 20 T (°C) R (kOhm) T (°C) R (kOhm) 1,155 1,783 1,194 1,812 1,232 1,840 1,271 1,869 1,309 1,898 1,347 1,928 1,385... -
Page 7: Menu Level
0450021014_1308-22_BA_CETA100_EbV_EN.book Seite 5 Donnerstag, 21. Februar 2013 11:46 11 Menu level 6. Menu level General menu structure Ceta series Basic display Prog Select parameters Menu 01 Prog 02:01 02:02 02:nn Menu 02 Parameter 01 Parameter 02 Last parameter Prog Prog Value 1 Calibration Set parameter value... - Page 8 0450021014_1308-22_BA_CETA100_EbV_EN.book Seite 6 Donnerstag, 21. Februar 2013 11:46 11 Menu level Overview of menu level Basic display Prog 08:01 08:02 08:03 Info Heat capacity Heat balance Pump on/off Prog 03:06 03:01 03:03 Automatic Code entry System Bus address exit time Prog 08:01 08:02...
- Page 9 0450021014_1308-22_BA_CETA100_EbV_EN.book Seite 7 Donnerstag, 21. Februar 2013 11:46 11 Menu level 08:04 08:05 08:07 08:06 08:08 Pump Temperature Temperature heat Return temperature Pump starts heat supplier storage tank operating hours 03:07 03:09 03:10 Code heating Anti-blocking Reset parameter specialist prot.pump 08:04 08:05 08:06...
-
Page 10: Parameter Description
Setting range: 21…25 Factory setting: 21 Function: If more than one CETA 100 or 101 has to be connected via data bus within a system, each unit must be set to a unique address. 03:06 Automatic exit time Setting range: 0.5 …... - Page 11 0450021014_1308-22_BA_CETA100_EbV_EN.book Seite 9 Donnerstag, 21. Februar 2013 11:46 11 Parameter description Display Designation Description 03:09 Code heating Setting range: 0 … 999 specialist Factory setting: 0 Function: Hide parameters marked with X3. 03:10 Total reset Reset to factory settings 08 Parameter Delta-T Display Designation Description...
- Page 12 0450021014_1308-22_BA_CETA100_EbV_EN.book Seite 10 Donnerstag, 21. Februar 2013 11:46 11 Parameter description Display Designation Description 08:06 Maximum Setting range: OFF (----), 30 … 110 °C temperature heat Factory setting: 90°C supplier Function: Irrespective of switching differentials, the pump performs a forced switch on after the sensor of heat supplier F3 has exceeded the set value.
- Page 13 0450021014_1308-22_BA_CETA100_EbV_EN.book Seite 11 Donnerstag, 21. Februar 2013 11:46 11 Parameter description Display Designation Description 08:13 Density HT-medium Setting range: 0.8 … 1.2 kg/l Factory setting: 1.05 kg/l Function: Using this parameter, the density of the heat transfer medium is entered in kilogramme per litre, according to manufacturer's data. 08:14 Heat capacity HT- Setting range:...
- Page 14 0450021014_1308-22_BA_CETA100_EbV_EN.book Seite 12 Donnerstag, 21. Februar 2013 11:46 11 Parameter description Display Designation Description 08:23 Frost protection Setting range: OFF, -15 °C ... 10 °C temperature of solar Factory setting: OFF panel flow sensor Function: When the solar panel temperature is below the set value, the solar loading pump will be switched on, and it will be switched off when the solar panel temperature exceeds the set value by +2.5K.
-
Page 15: Mounting
0450021014_1308-22_BA_CETA100_EbV_EN.book Seite 13 Donnerstag, 21. Februar 2013 11:46 11 Mounting 28 Relay test Display Designation Description 28:01 Test pump output Setting range: -0 = OFF 1 = ON Factory setting: Function: By changing the value, the output switches on and off (test function), independent of function. -
Page 16: Terminal Diagram
0450021014_1308-22_BA_CETA100_EbV_EN.book Seite 14 Donnerstag, 21. Februar 2013 11:46 11 Terminal diagram 9. Terminal diagram Hazard! Connection must be performed only by an authorised professional electrician! Ensure that unit is de-energised before opening it! 230V connections Low voltage connections... -
Page 17: Fault Clearance
0450021014_1308-22_BA_CETA100_EbV_EN.book Seite 15 Donnerstag, 21. Februar 2013 11:46 11 Fault clearance 10. Fault clearance To allow an accurate diagnosis in case of malfunction, the unit is equipped with a fault display system. The faults are shown on the basic display of the unit in form of an error code: 0---°C = Sensor heat supplier (e.g. -
Page 18: Declaration Of Conformity
Elektronikbau- und Vertriebs- GmbH Heisternerweg 8-12, 57299 Burbach EC Declaration of Conformity Product identification: Heating controller Type designation: CETA 100 Manufacturer: EbV Elektronikbau- und Vertriebs-GmbH Heisternerweg 8-12 57299 Burbach The product described is in full compliance with the following European directives: 89/336/EEC „Council directive on the approximation of the laws of the member states... -
Page 19: Technical Data
0450021014_1308-22_BA_CETA100_EbV_EN.book Seite 17 Donnerstag, 21. Februar 2013 11:46 11 Technical Data 12. Technical Data Power supply voltage: 230V +6%/ -10% Rated frequency: 50...60Hz Power input: max. 2.1VA Fuse: 6.3A Output relay contact load: 2 (2)A Ambient temperature: -10...+50°C Storage temperature: -25...+80°C Degree of protection: IP 30...
