Manrose FAN5876 Installation Instructions

INSTALLATION INSTRUCTIONS AND HOLE-CUTTING TEMPLATE
Dear Customer,
Thank you for selecting our MANROSE Bathroom Heater-Fan-Light unit.
Please read all instructions before commencing installation.
IMPORTANT: This unit must be installed to comply with the appropriate council regulations and the Australia and New
Zealand wiring rules AS/NZS3000:2000 or latest edition thereof.
The mains supply and interconnecting cables required for installation of this unit are not included.
WARNING - ALL WIRING MUST BE CARRIED OUT BY A REGISTERED ELECTRICIAN
1. Use this bathroom heater-fan-light unit only as described in this manual. Any other use not recommended by the
manufacturer may cause fire, electric shock, or injury to persons. If you have questions, contact the manufacturer
or local agent.
2. All wiring must be carried out by a licensed electrician in accordance with all national wiring codes.
3. Make sure the power is isolated before installing.
4. The bathroom heater-fan-light unit must be properly earthed.
5. The heater's glass shield is hot when in use. Do not touch the heat lamp or glass shield when in use.
6. For the purpose of avoiding any dangerous gas leaking into your bathroom, the ducting of the bathroom
heater-fan-light unit must not be shared with the ducting of air-fueled water heater or other open-fire appliances in
the same flue.
7. The bathroom heater-fan-light unit must be isolated from the power by means of a plug or a switch capable of
disconnecting all poles with a contact separation of at least 3mm in each pole.
8. The power cable must be rated for a minimum 10A inductive load.
9. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
10. Children should be supervised to ensure that they do not play with the appliance.
11. The bathroom heater-fan-light unit is to be installed so that switches and other controls cannot be touched by a
person in the bath or shower.
12. The appliance shall, under no circumstances, be covered with insulating material or similar material.
13. Regulations cencerning the discharge of air have to be fulfilled.
14. Joists, beams and rafters shall not be cut or nothed to install the appliance.
IMPORTANT CONSIDERATIONS BEFORE INSTALLING
A few minutes of planning can make a big difference to the installation time and ultimate satisfaction with the functioning
of the unit.
1. The unit should not be installed directly above a shower or bathtub. The unit must not be installed in a position
where water may splash onto the unit.
2. The unit must not be installed beneath a fixed electrical socket.
3. The unit is designed for installation in flat ceilings only. Do not mount it on a sloping ceiling or a vertical wall.
4. The bathroom heater-fan-light is most effective when you are standing directly beneath it, so generally the unit
would be mounted above a place where you would stand to dry yourself.
5. For the exhaust fan to work efficiently, replacement air of a volume equivalent to what is being extracted must be
able to enter the room. Generally this air would be drawn under the door. If the room is airtight, the fan will not
exhaust air efficiently.
6. Before commencing any cutting, check in the ceiling space that there are no obstructions such as ceiling joists and
that there is sufficient height clearance for the housing. Check that the electrical wiring can be routed from the wall
switches to the mounting location.
Read and save these instructions!
BATHROOM HEATER
WITH EXTRACTION FAN AND LED LIGHTS
FAN5876
INSTALLATION

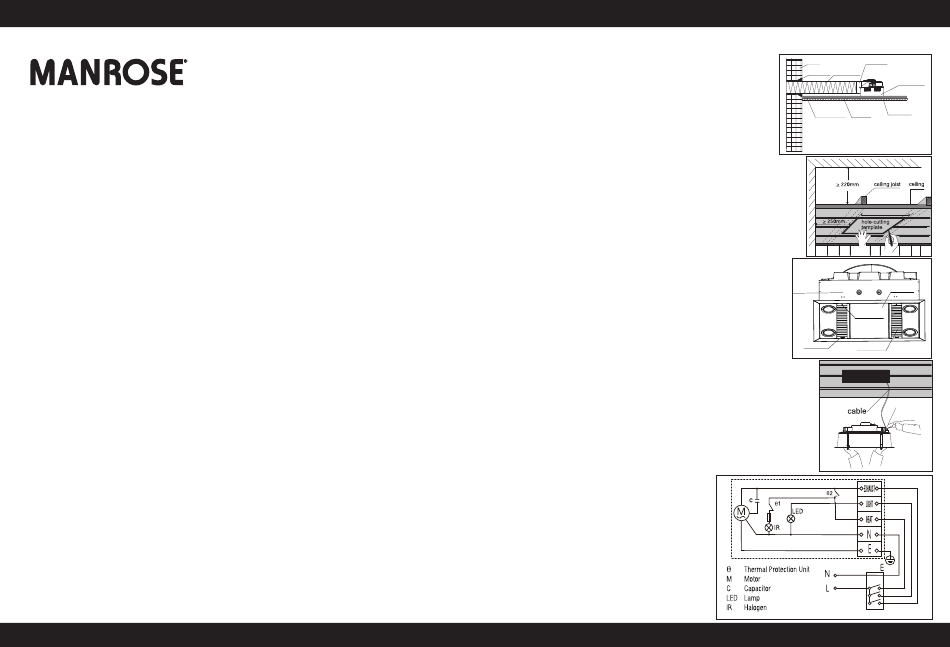

1. Locating the bathroom heater-fan-light unit
For the purpose of obtaining the best heating effect from the lamps
there should be at least 2.1m overall height from unit to ground.
2. Prepare the ceiling
Select the mounting position for the unit. Check that it is possible to
route the ducting from the unit to the outside of the house. This will
generally be to the soffit but can be to a wall outlet location
(as pictured).
Use this hole-cutting template to mark the hole on the ceiling. Make
sure a distance between the edges of the unit and wall is no less than
250mm. There should be a minimum 220mm vertical distance between
the ceiling and roof.
3. External Grille
Locate the position for the external grille and cut a 155mm diameter
hole. Connect one end of the 150mm diameter duct to the spigot of
the external grille. A 150mm diameter eggcrate grille is included in the
kit to be used when installing into the soffit. If installed in the wall, a
weatherproof cowl should be used. Seal the grille, or cowl, with
suitable sealant.
Note: Since the length of each duct is 3.0m, make sure the centre of
the installation hole is no more than 3.0m from the vent.
Note: In order to get an effective ventilation, it is suggested that the
duct is no more than 3.0m in length.
4. Remove the fascia
- Remove 4 silicon clips at 2 ends of the rectangle air inlet grilles.
- Remove the screws hidden inside. Remove the fascia.
Note: Be careful while removing the screws so that the fascia does not
drop to the ground.
5. Remove the lamps
- Remove the 4 LED lamps from the heater unit.
- Remove the halogen heat lamp from the heater unit and keep it in
a safe place. Do not touch this lamp with your bare skin.
Natural skin oils and salts damage new halogen lampsa and
shorten their life. Only handle a new heat lamp with soft, dry, clean,
lint-free cloth or paper. You can wear gloves, cover your fingers or
wrap the heat lamp until it is installed (so long as you
remove all cloth or paper when finished).
6. Wiring
- Connect one end of the interconnecting wire to
the wall switch panel, and bring the other end
out of the hole in the ceiling.
- Remove the terminal block cover on the unit's
housing, make the connection as per the wiring
diagram instruction below, then replace the
terminal block cover. Press excess wire back
into the ceiling.
Note: Ensure that the power is isolated before
carrying out any work on electrical installations.
Please take this card as hole cutting template 470mm x 320mm.
wall duct clip
sealant ventiduct
bathroom
heater
fascia
ceiling joist ceiling
Wall venting shown
Heater Unit Glass shield
Screw behind rubber
Rubber clip
Air inlet grille
Terminal
Blocks
