Whittier Wood Products McKenzie 1180 Series Assembly Instructions Manual

Model #
1180i

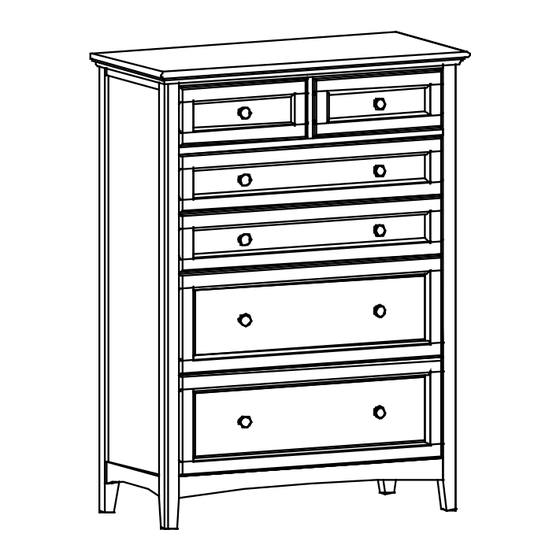

McKenzie
6-Drawer Chest
GAC = Glazed Antique Cherry finish
JAV = Java finish
FST = Fieldstone finish
PEC = Pecan finish
SN = Snowbound finish
Assembly Instructions
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement
part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts
through your dealer, please contact our customer service department.
P.O. Box 2827
Eugene, OR 97402 USA
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
Fax: 541-687-2060• Email: info@whittierwood.com
IMPORTANT NOTES:
• For normal household use only. Not recommended for commercial use.
• Do not remove or modify the counterweight. It is an important part of
the stability and safety system.
• Do not overload the drawers.
• Unload items before you move this unit.
• This assembly requires two people.
Children have died
from furniture tipover.
To reduce the risk of
furniture tipover:
• ALWAYS install Anti-
tip device provided.
• NEVER put a TV on
this product.
• NEVER allow children
to stand, climb or
hang on any drawers,
doors or shelves.
• NEVER open more
than one drawer at a
time.
• DO NOT defeat or
remove the drawer
interlock system; it is
an important stability
and safety system.
• Place heaviest items
in the lowest drawers.
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
Production Code :
VN
WARNING
DO NOT remove the interlock
system except for
maintenance as shown.
NEVER use the unit without
the interlock installed
following the instructions.
The snapper arm must be
angled forward in the locked
positions to engage the
interlock system after
removing a drawer. See
diagram below.
Close up
view
of locked
snapper
09/23
