TemperZone IXDL 40Y Installation & Maintenance

IXDL 40/90/130/160/200 Y-3/1
Ducted Multizone
Fan Coil Units

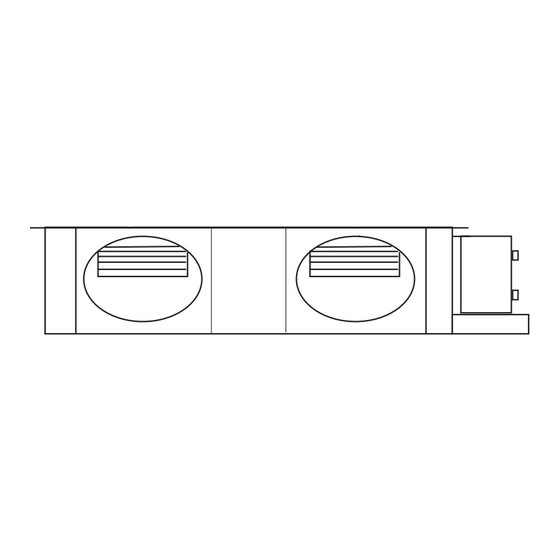

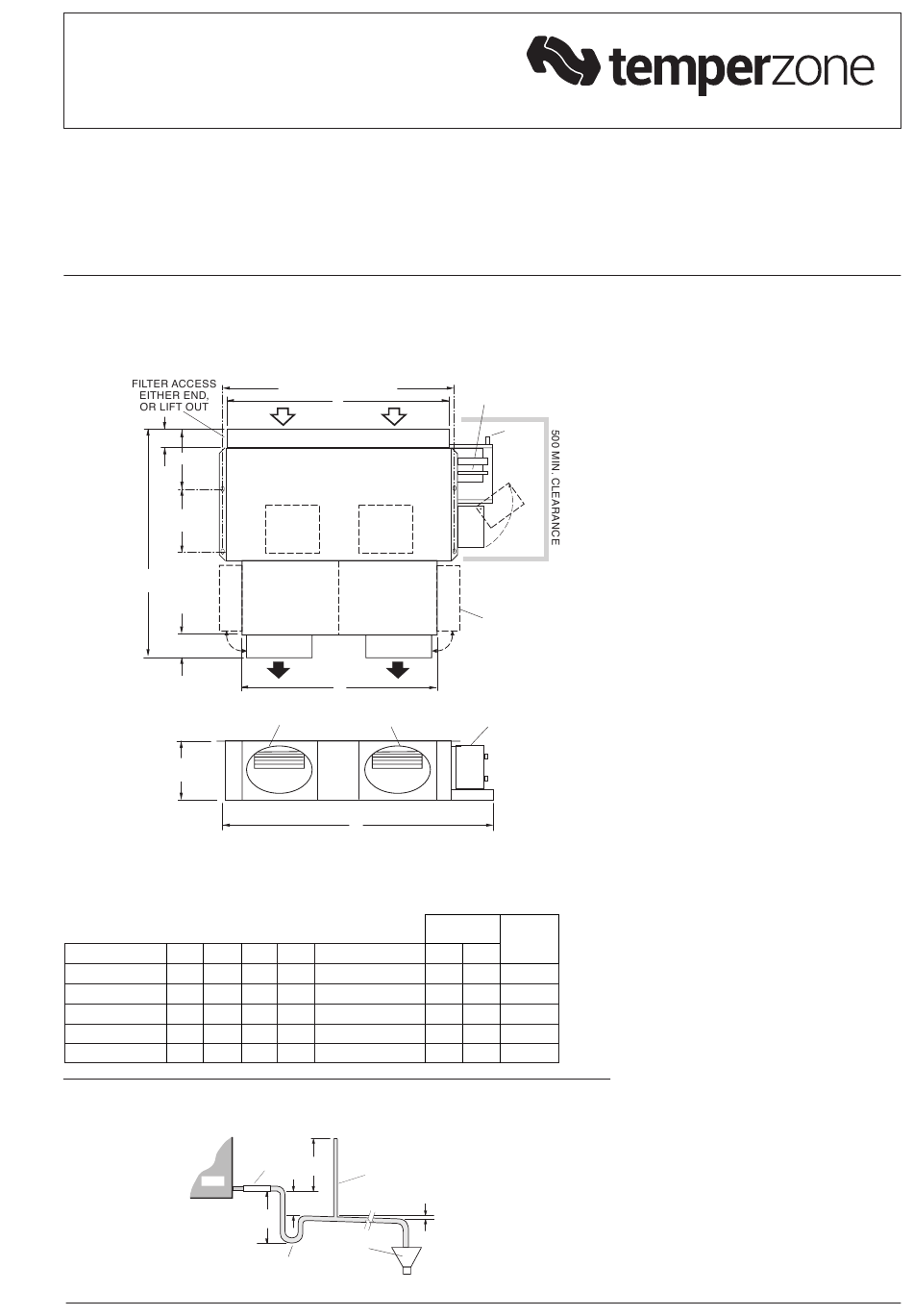

Fig. 1 Dimensions (mm)
80
268
280
MTG CTR
1010
OVERALL
100
252
OVERALL
Note:
1. Allow adequate clearance for the filter (if fitted) to be removed.
2. IXDL have two half length filters, except the IXDL 40Y
which is one piece.
MODEL A B
IXDL 40Y 705 473 323
IXDL 90Y 1205 973 820 1030
IXDL 130Y 1605 1373 1252 1430
IXDL 160Y 1954 1722 1630 1780
IXDL 200Y 2355 2122 2037 2178
Fig. 2 Condensate Drain
UNIT
D
MOUNTING CENTRES
B
(HEIGHT = 175)
C
OVAL SPIGOTS TO SUIT
FLEXIBLE DUCTING
A
OVERALL
C D S/A SPIGOTS
529 250 dia (x1)
250 dia (x2)
250 dia (x3)
250 dia (x4)
250 dia (x5)
FLEXIBLE
TUBE
VENT PIPE
100 mm
70–100mm
FOR LONG
APPROX.
CONDENSATE
DRAIN RUNS
50 mm
MINIMUM
100 mm
APPROX.
OPEN
DRAIN
'U' TRAP
(c/w EC motor)
IXDL 90Y model shown
Not to Scale
WATER
CONN'S
DRAIN
19 OD
COOL
HEAT
ALTERNATIVE
POSITION VIA
90° ROTATION
& FLIP
ON-SITE
ELECTRICAL
BOX
OUT
IN
WATER CONN'S
NO. FANS/
BSP MALE
OUTLETS/
ZONES
COLD HOT
25 13 1
25 13 2
25 13 3
25 13 4
25 13 5
MINIMUM
SLOPE
20 mm PER m
(1 IN 50)
Installation &
Maintenance
GENERAL
The IXDL-Y ducted fan coil units must be
installed in accordance with all national and
local safety codes.
Optional
Flexible hoses, available from temperzone:
- 13 BSP (1/2") part no. 060-085-001
- 25 BSP (1") part no. 060-085-003.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory, or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure
that they do not play with the appliance.
INSTALLATION
Positioning & Mounting
Provide 500 mm minimum clearance to the
electrical box end of the unit.
Allow adequate clearance for the filter to
be withdrawn from either end of the unit. To
make it easy, the filter is in two half lengths
(except IXDL 40Y). Alternatively the filter
may be lifted out of its track.
Corner supply air spigots are mounted on
an 'L' shaped plate that can be unscrewed,
rotated and flipped on site to achieve a side
exit position.
Install the unit suspended on threaded rods
or bolts and locking nuts (not supplied).
Alternatively mount each unit on vibration
isolators on a suitable platform.
The unit must be installed level. Use the
adjustable support bracket (see figure 3)
to lower the drain pipe outlet and provide a
slope in the drain tray.
WATER SUPPLY & RETURN
The IXDL unit's IN and OUT water
connections are male pipe threaded
(refer Fig. 1). Warning: overtightening of
connections to the main water supply may
damage the unit.
It is recommended you use two temperzone
600 mm flexible high pressure water
hoses. These have female pipe threaded
connections at each end. Maximum water
pressure for each hose is 1720 kPa (250
psi). The IXDL unit alone, excluding hoses,
will withstand 4480 kPa (650 psi).
Poor quality water supply must be pre-
filtered and it is essential that adequate
water treatment is maintained, particularly
where open cooling towers are used.
