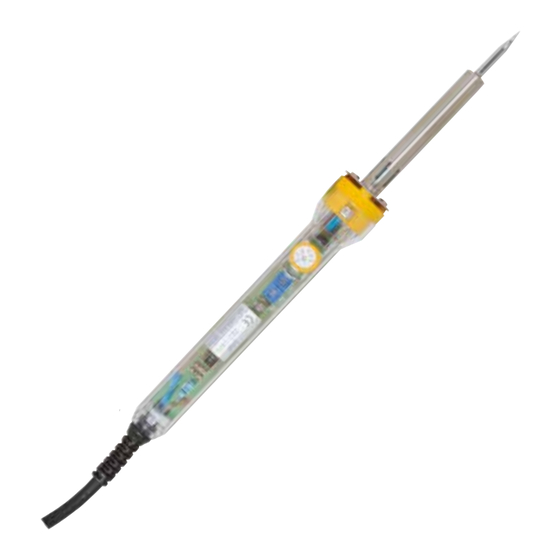

- Page 1 30W 240V HOBBYIST Temperature Controlled Soldering Iron User Manual TS1540...
-
Page 2: Table Of Contents
CONTENTS Box Contents ..................... 3 Product Diagram ..................... 3 Warnings & Safety Information ..............4 Features.......................4 Operating Instructions ................... 5 Cleaning, Care, Storage & Maintenance ..........6 Specifications .....................7 Warranty Information ..................8... -
Page 3: Box Contents
BOX CONTENTS 1x Soldering Iron PRODUCT DIAGRAM Control Dial Soldering Tip Power Cable... -
Page 4: Warnings & Safety Information
WARNINGS & SAFETY INFORMATION • Ensure the solder always cover on the top of the soldering tip. • Do not use the strong acid flux when soldering. • Do not file or beat the soldering tip by file or hammer. •... -
Page 5: Operating Instructions
OPERATING INSTRUCTIONS 1. Remove any dirt, rust, or 2. Apply rosin-based solder 3. Allow the solder to cool paint from the part you to the part and melt it and harden before intend to solder. Then, with the soldering iron. handling the soldered heat the part using the Note: If you’re using non-... -
Page 6: Cleaning, Care, Storage & Maintenance
CLEANING, CARE, STORAGE & MAINTENANCE Soldering Tip Care Guidelines • Always ensure that the tips are coated with tin to prolong their service life. • Avoid leaving the iron at high temperatures for an extended duration. • Never clean the tip with abrasive materials. •... -
Page 7: Specifications
SPECIFICATIONS Voltage 220V~ 240V 50Hz Max Power Temperature Range 200°C-450°C Start-up time <45 seconds Temperature control precision +/-3°C Grounding resistance <0.10 Fuse 1A/250V... -
Page 8: Warranty Information
WARRANTY INFORMATION Our product is guaranteed to be free from manufacturing defects for a period of 12 Months. If your product becomes defective during this period, Electus Distribution will repair, replace, or refund where a product is faulty; or not fit for intended purpose.
