Summary of Contents for protech TS1610

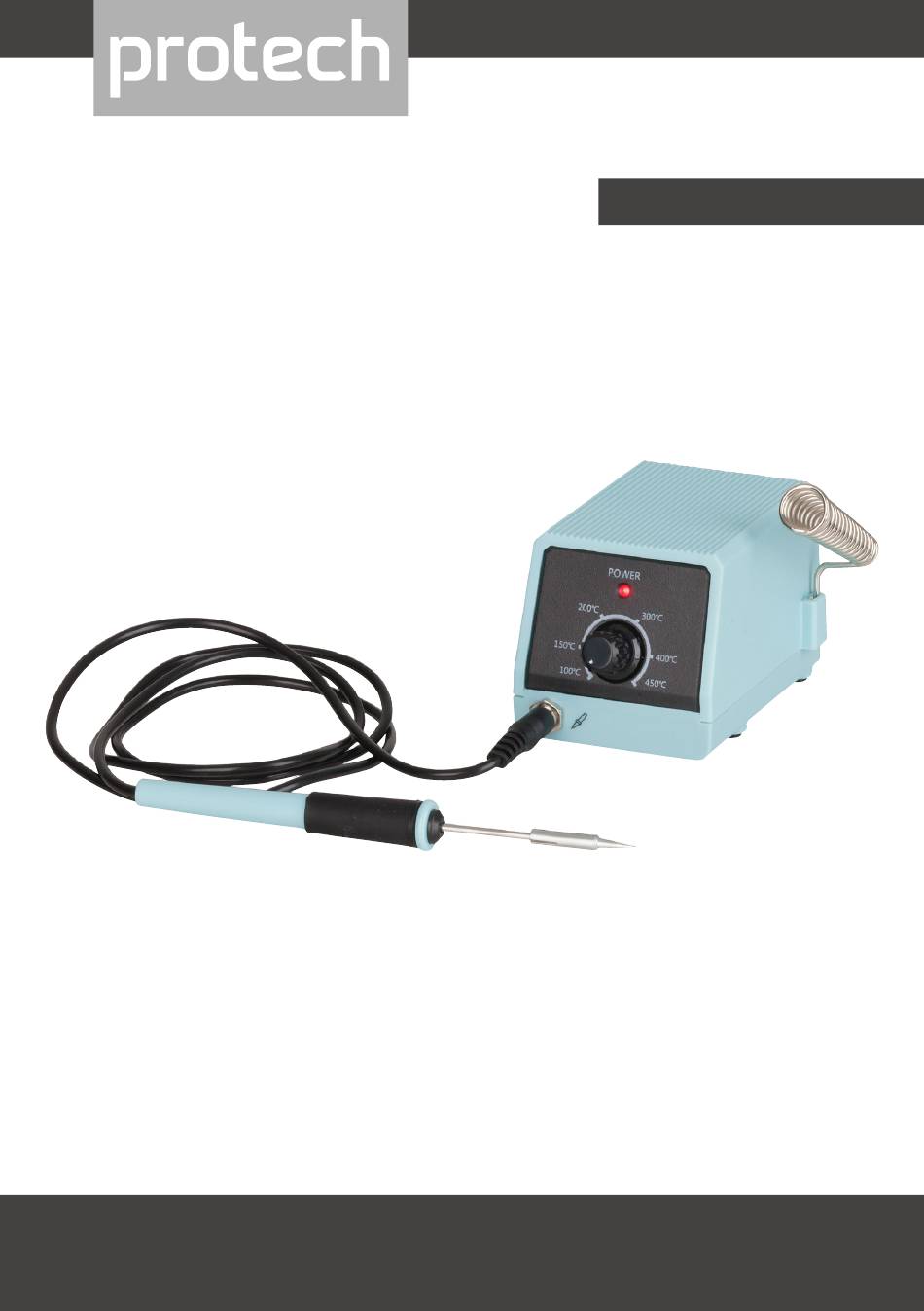

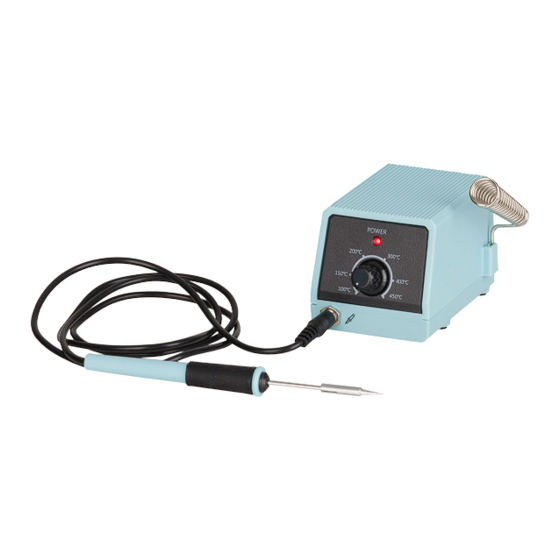

- Page 1 8W Mini HOBBYIST Soldering Iron User Manual TS1610...
- Page 2 INTENDED USE: The product is designed for soldering operations in the areas of electronics, hobby and model-making, where different power levels are required. The control dial is used to set the required power level. The soldering tip reaches a temperature of approx. 430°C. This highest power level may only be used for a maximum of 15 minutes.
- Page 3 • Do not leave packaging material lying around carelessly. These may become dangerous playing material for children. • Do not place the product under any mechanical stress. • Protect the product from extreme temperatures, direct sunlight, strong jolts, high humidity, moisture, flammable gases, vapours and solvents. •...
- Page 4 right next to the product. If liquid or an object enters the interior of the device nevertheless, first power down the respective socket (e.g. switch off circuit breaker) and then pull the mains plug from the mains socket. Do not operate the product anymore afterwards, but take it to a specialist workshop.
- Page 5 • Do not work on live parts. • Only use the supplied accessories. • Wear suitable protective clothing, goggles, gloves and sturdy footwear to protect you from splashing soldering material. • Soldering material splashing beyond the working area carries an increased risk of fire, in particular, through delayed smouldering.
- Page 6 OPERATION: • The working area for any soldering operations must be dry and well ventilated. • The working surface must be dry, solid, stable, heat-resistant and non- conductive. • Check whether the on/off switch (2) on the back of the soldering iron station (7) is off.
- Page 7 CARE AND CLEANING: Only a specialist who is familiar with the risks and relevant regulations may carry out repairs / open the housing. Before starting to clean or maintain, the soldering iron station must be disconnected from the mains. Allow the product to cool down sufficiently. General •...
- Page 8 SPECIFICATIONS: Power supply: 220 – 240 V/AC, 50 Hz Power consumption: 10 W Protection class: II Length of mains cable: 1 m Temperature range: approx. +100 to +430 °C Operating temperature/humidity: -6 to +46 °C, 10 – 90 % RH Storage temperature/humidity: -20 to +60 °C, 10 –...
