Fluke III Series Calibration Information Manual page 7

7x, 2x Series III
Calibration Information
SUBJECT TO DAMAGE BY
STATIC ELECTRICITY
Window, LCD
LCD, Assembly
Screw 4-14X3/8
(Model 73 only)
Contact Annunciator
Transducer
4 X Foot, Non-Skid
4 X Screw 5-14X3/4
Mask, Bracket
Bracket, LCD
Conn. LCD/PCB
6
CAUTION
Shield, Bottom
LCD

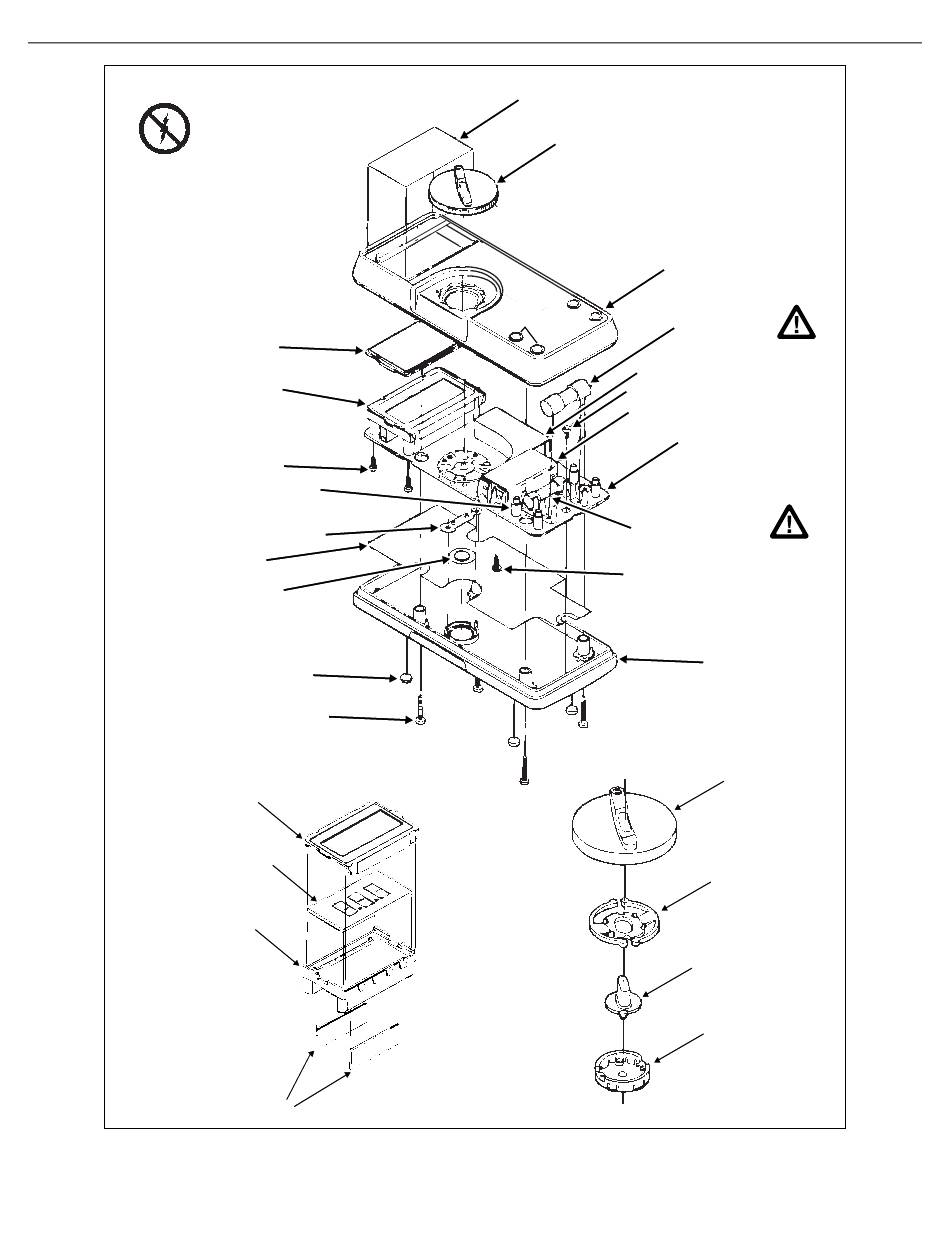

Figure 1. 70/73 Assembly Details
Decal Window
Knob Assembly
(Model 73 only)
Shield, Top
Screw 4-24
Battery, 9V
630 mA Amp Fuse
(Model 73)
Screw #2-14X3/8
Case, Top
11 Amp Fuse
(Model 73)
Main Printed
Circuit Assembly
Case, Bottom
Knob, Switch
Spring, Detent
Switch, Momentary
Shaft, Knob
pm3f.eps
