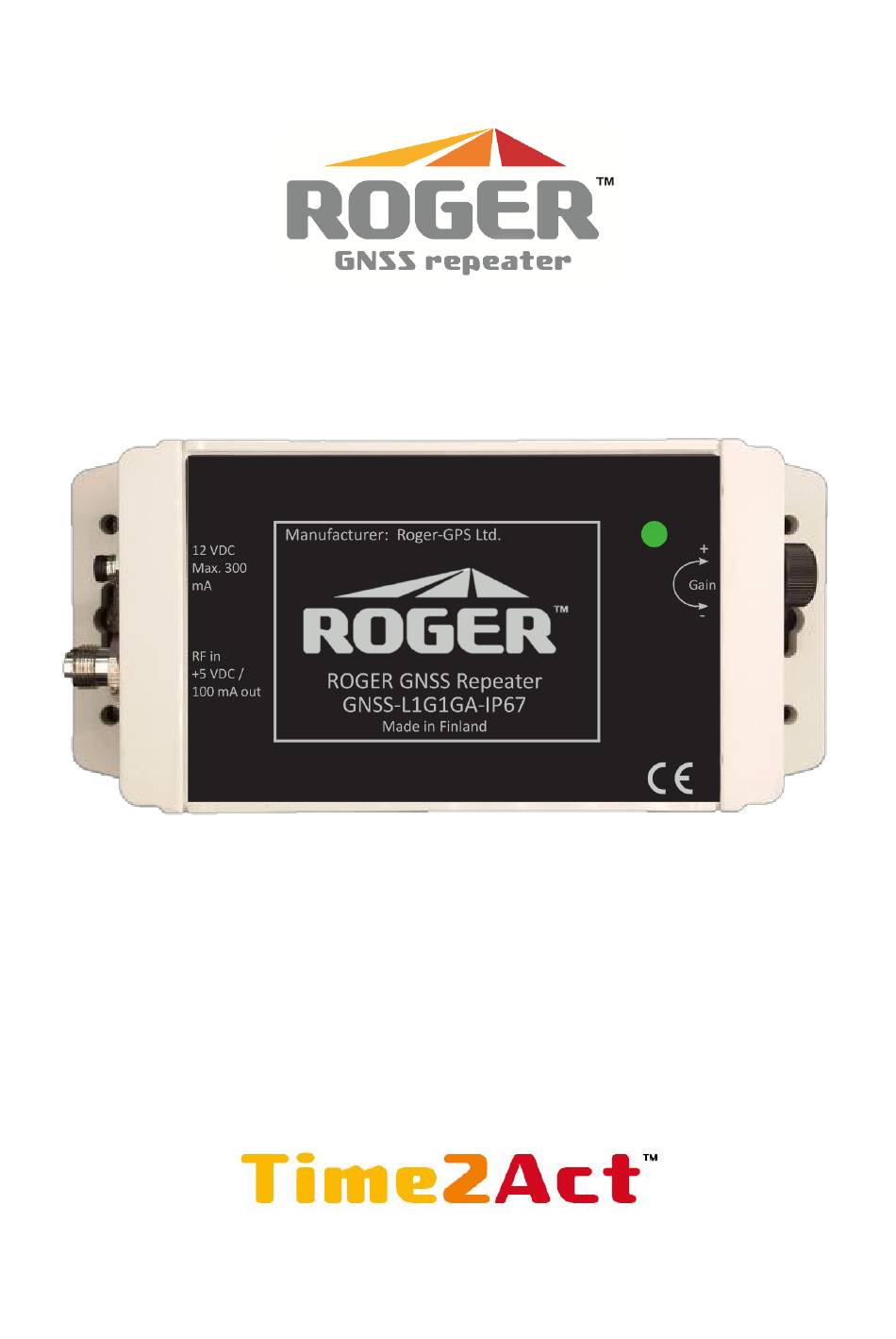

- Page 1 THE GNSS REPEATER TECHNOLOGY EXPERT ROGER™ GNSS-L1G1GA-IP67 Repeater User Manual...
- Page 2 2022 05 25 Thank you for choosing Roger™-GPS Ltd for your requirements. We appreciate your support and are certain that our product will serve you reliably. This product is designed to provide many years of reliable service, provided it is used as intended and taken care of.
- Page 3 Utilities, Defence, Transport, Airlines, Logistics and the companies who manufacture, sell and maintain GNSS systems, receivers, terminals and services. The Roger™-GPS Ltd. business concept permits the use of GNSS repeater devices and services in places where it was not previously possible.
- Page 4 Version 2.4 Copyright Roger™-GPS 2022 05 25...
- Page 5 GNSS almanac data (its history). Notes: 1. The ROGER™ GNSS repeater can be used for indoor navigation, however it should be noted that the receiver gives the position of the outdoor antenna. 2. The ROGER™ GNSS repeater fulfils the EN 302 645 V1.1.1 (2010-03) specification requirements, meaning that it can be used throughout the EEA and in fact, world-wide.
- Page 6 RF cable (20m or 40m), power supply (office or IP-67 grade) and manual. ROGER-GPS Repeater A single ROGER™ GNSS Repeater is enough to provide a GNSS indoor coverage in an area from 1 to 1600 square meters. The modern receivers can detect the signal at the level which less than -160dBm, such like TETRA radios and smart phones using A-GPS (Assisted GPS), so the distance can reach up to 50-60 meters from the repeater’s centre.
- Page 7 Version 2.4 Copyright Roger™-GPS 2022 05 25 GNSS repeater installation (applies to GNSS-L1G1GA-IP67) Prior to commencing work on the installation, make a survey of the locations of the individual units, ensuring that: The antenna has good line of sight to the sky and is not shrouded or shadowed by buildings, trees etc.
-
Page 8: Troubleshooting Guide
Version 2.4 Copyright Roger™-GPS 2022 05 25 The indications of the status LEDs are: CONSTANT GREEN: The transmitter is working correctly, no further adjustment is required. CONSTANT RED/GREEN: The transmitter is working at its maximum output and the gain should be reduced slightly until a constant green is achieved. - Page 9 ™ ROGER GNSS Splitter 1 to 5 (GNSS-S-IP67) ™ Extending the number of repeaters by With the ROGER™ GNSS Signal Splitter the signal adding an Amplifier from one external antenna can be redistributed to up to five repeater units. ROGER GNSS Amplifier (GNSS-A-IP67) ™...
-
Page 10: Distribution Unit
Copyright Roger™-GPS 2022 05 25 Extending the number of repeaters by With the ROGER™ GNSS Signal Splitter 1 to 2, the signal from one external antenna can be adding an Amplifier/Splitter redistributed to up to two repeater units. It is ROGER GNSS Amplifier&... - Page 11 Copyright Roger™-GPS 2022 05 25 ROGER™ GNSS DC Power Distribution unit GNSS- Distribution can provide power up to 5 ROGER™ DCPD5-IP67 is designed to be used with ROGER™- GNSS repeaters from one AC/DC power outlet. GPS repeaters. ROGER™ GNSS DC Power...
- Page 12 Version 2.4 Copyright Roger™-GPS 2022 05 25 Roger GNSS-L1G1GA IP-67 repeater technical information: Size: 200*89*39 mm Frequencies: GALILEO E1: 1.57542 GHz GPS L1: 1.57542 GHz GLONASS G1: 1.602 GHz BEIDOU B1: 1.5611 GHz Weight: 290 g Overall Gain: > 40dB Noise Figure: <...
-
Page 13: Warranty
Roger-GPS Ltd. Roger-GPS Ltd shall not be responsible to the Buyer or any other party in respect of any claims arising out of the sale of the products. Roger-GPS Ltd does not warrant the software delivered under these conditions per se but agrees to maintain the software for a period of 90 days from the date of delivery of the relevant software.
