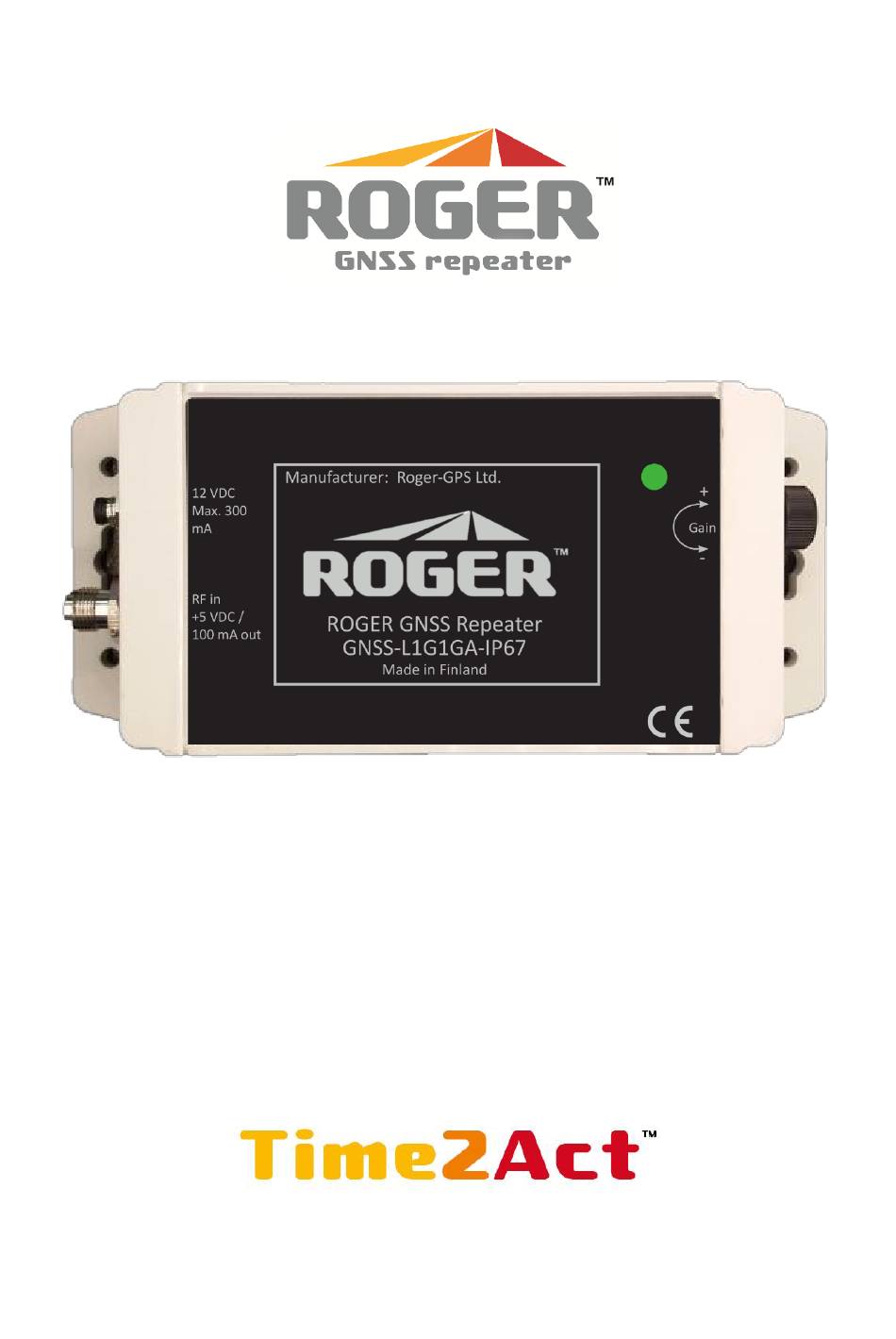

- Page 1 THE GNSS REPEATER TECHNOLOGY EXPERT ROGER™ GNSS-L1G1GA-IP67 Repeater Installation instructions...
- Page 2 This document provides the basic installation instructions. For further technical information and troubleshooting refer to the ROGER™ GNSS-L1G1GA-67 User Manual. IMPORTANT! Read carefully the contents of this manual before assembly or operation of this product. Only qualified company/person can install this product. This product shall not be installed or used without necessary link budged calculations.
- Page 3 Do not leave excess cable windings. Excess cable windings cause unnecessary losses which can cause the system does not to perform. ROGER™ GNSS repeater installation (applies to GNSS-L1G1GA-67) 1. Secure the repeater to the mounting place with screws or bolts at least from four screw holes on the edges of the repeater.
- Page 4 4. Connect the antenna cable. Cable should be cut to fit as in part 2. Do not leave excess cable coils! 5. Adjust both gain knobs to minimum (fully counterclockwise). 6. Connect the M8 power plug. 7. Insert the power source to the AC socket. Green light should be started to blink.
- Page 5 First time adjustments Switch the power on and the indicator LED will flash green for between two and three seconds during the start-up phase. Turn the control knob in order to set the gain. Higher gain increases the coverage of the GNSS signal. Watch for the LED flashing to red and green, this means the maximum power has been reached.
-
Page 6: Troubleshooting Guide
Troubleshooting guide: Problem: No LED indication Solution: Check power supply and connection. Problem: Red light is on. Solution: The gain setting is too high. Turn the control knob counterclockwise to decrease the gain until the green LED is lit. Problem: Green light flashing around 5 times per second, red light is off. -
Page 7: Warranty
Roger-GPS. Roger-GPS Ltd shall not be responsible to the Buyer or any other party in respect of any claims arising out of the sale of the products.
