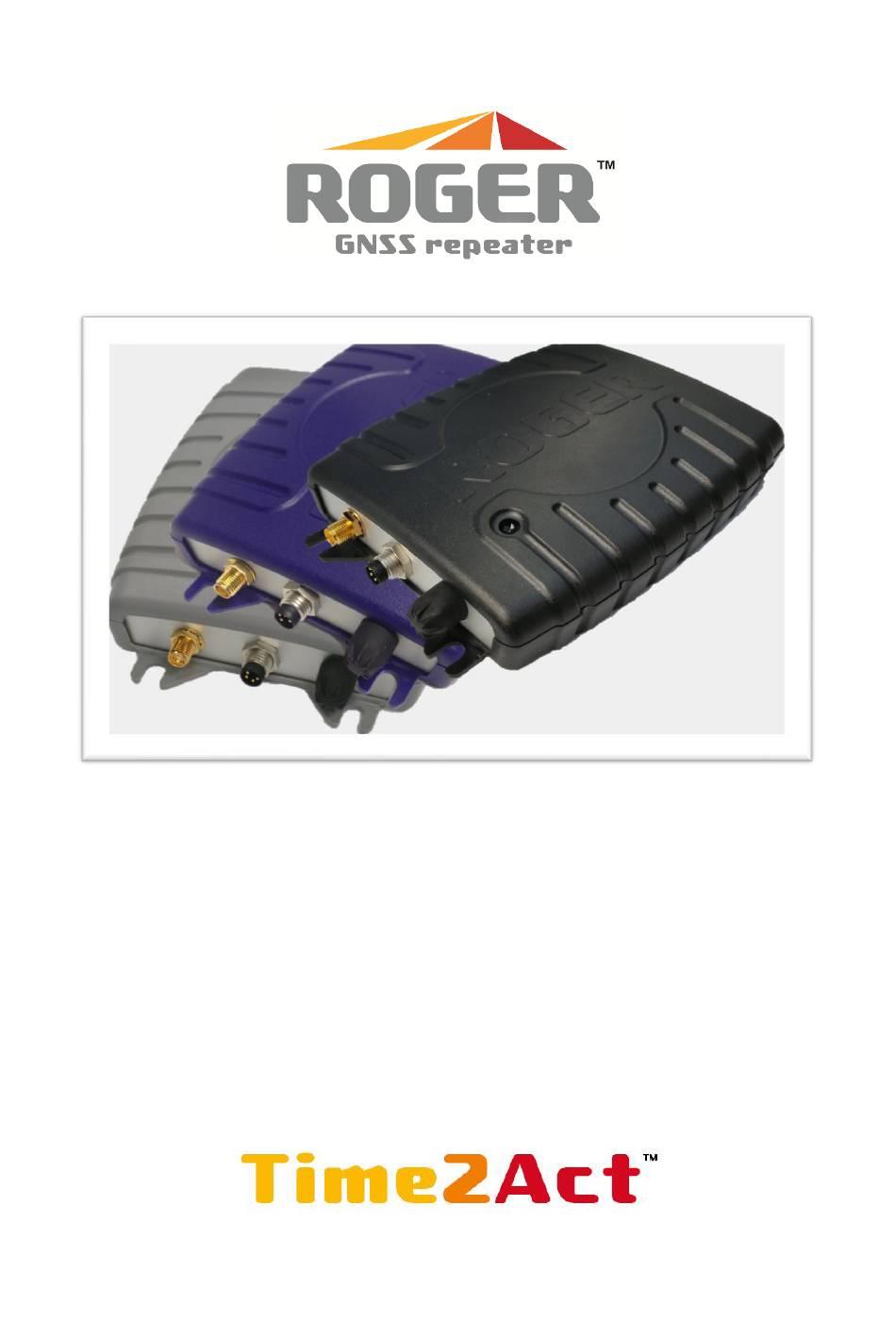

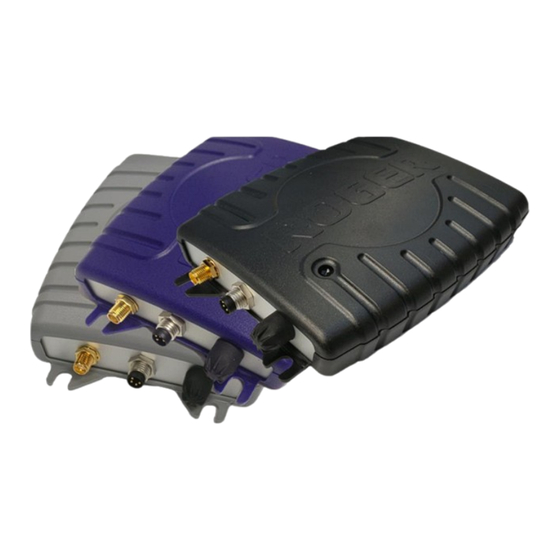

- Page 1 THE GNSS REPEATER TECHNOLOGY EXPERT ROGER™ GPSR-1-EU/-UK/-US ROGER™ GNSS-L1G1GA-EU/-UK/-US Repeater User Manual...
- Page 2 4. ROGER™ GPS repeater has a proprietary gain control system that provides up to 15dB more signal than other systems in the market. 5. ROGER™ GPS active gain control provides up to 10 times more gain signal while adhering to the ETSI EN 302 645 standard.
- Page 3 GPS terminals, systems and services. Roger-GPS Ltd.'s business concept permits the use of GNSS repeater devices and services in places where it was previously impossible.
- Page 4 Version 1.0 Copyright Roger™-GPS 2017 12 01...
- Page 5 The GNSS receiver is tracking the GNSS signal by using the re-radiated signal from the ROGER™ GNSS repeater. When the GNSS receiver is moved from repeater covered area to outdoors, the receiver will instantly track the location instead of the time consuming acquisition of GNSS almanac data.
- Page 6 ROGER™-GPS Repeater (GPSR-1 or GNSS-L1G1GA) A single ROGER™ GNSS Repeater is enough to provide a GNSS indoor coverage area about 1 to 1600 square meters. The modern receivers can detect the signal at the level which less than -160dBm, such like TETRA radios and smart phones using A-GPS (Assisted GPS), so the distance can reach up to 50 meters from the repeater’s centre.
- Page 7 Version 1.0 Copyright Roger™-GPS 2017 12 01 ROGER GNSS repeater installation (applies to GPSR-1 and GNSS-L1G1GA) ™ Install the GNSS repeater transmitter by fixing it to the ceiling, wall or a suitable mount. The repeater has an integrated transmitter TX antenna, which is located in the middle of the unit, same side as the status LED.
- Page 8 Version 1.0 Copyright Roger™-GPS 2017 12 01 cable by the ROGER™ GPS Repeater and it passes Extending the ROGER™ repeater’s distance on DC power for the GPS receiving antenna or from the outdoor antenna. GPS line amplifier. ROGER™ GPS Amplifier (GNSS-A) ROGER™...
- Page 9 2017 12 01 GPS line amplifier. ROGER™ GPS Splitter 1 to 2 (GNSS-S2) With the ROGER™ GPS Signal Splitter 1 to 2, the signal from one external antenna can be redistributed to up to two repeater units. It is advisable to use a separate amplifier with the signal splitter in order to ensure adequate transmission power to all the two repeaters.
- Page 10 Version 1.0 Copyright Roger™-GPS 2017 12 01 ROGER™ GNSS repeater technical information: Size: 110*143*28 mm Frequencies: GPSR-1: 1.57542 GHz GNSS-L1G1GA: GALILEO 1.57542 GHz GPS L1 1.57542 GHz GLONASS L1 1.602 GHz Weight: 165 g Overall Gain: > 40dB Noise Figure: <...
-
Page 11: Warranty
Roger-GPS. Roger-GPS Ltd shall not be responsible to the Buyer or any other party in respect of any claims arising out of the sale of the products.
