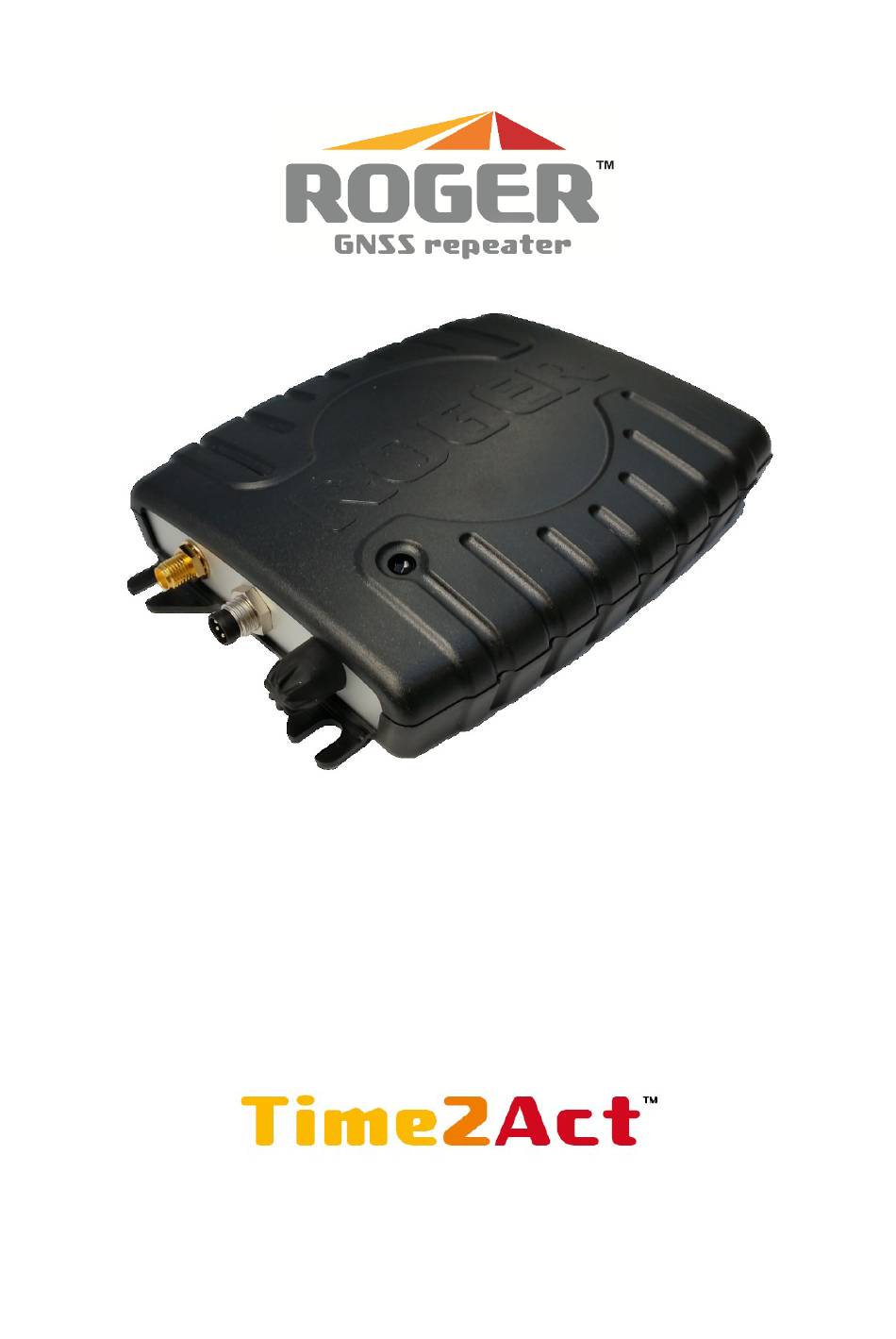

- Page 1 THE GNSS REPEATER TECHNOLOGY EXPERT ROGER™ GNSS-L1G1GA-EU/-UK/-US Repeater User Manual...
- Page 2 2019 10 01 Thank you for choosing Roger™-GPS Ltd for your requirements. We appreciate your support and are certain that our product will serve you reliably. This product is designed to provide many years of reliable service, provided it is used as intended and taken care of.
- Page 3 Utilities, Defence, Transport, Airlines, Logistics and the companies who manufacture, sell and maintain GNSS systems, receivers, terminals and services. The Roger™-GPS Ltd. business concept permits the use of GNSS repeater devices and services in places where it was not previously possible.
- Page 4 Version 2.0 Copyright Roger™-GPS 2019 10 01...
- Page 5 GNSS almanac data (its history). Notes: 1. The ROGER™ GNSS repeater can be used for indoor navigation, however it should be noted that the receiver gives the position of the outdoor antenna. 2. The ROGER™ GNSS repeater fulfils the EN 302 645 V1.1.1 (2010-03) specification requirements, meaning that it can be used throughout the EEA and in fact, world-wide.

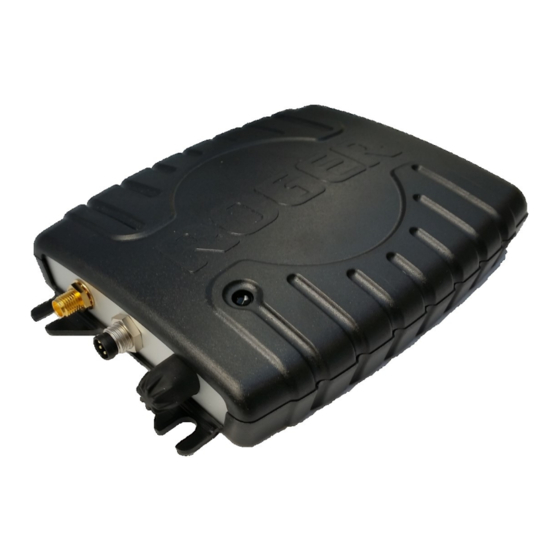

- Page 6 5. Integrated transmitter (TX) antenna inside the case. ROGER™-GPS Repeater GNSS-L1G1GA A single ROGER™ GNSS Repeater is enough to provide a GNSS indoor coverage area up to 1600 square meters (m ). The modern receivers can detect the signal at very low power levels, so the distance can reach up to 50-60 meters from the repeater’s center, depending on surrounding structures.
- Page 7 Version 2.0 Copyright Roger™-GPS 2019 10 01 ROGER GNSS repeater installation for GNSS-L1G1GA ™ Prior to commencing work on the installation, make a survey of the locations of the individual units, ensuring that: The antenna has good line of sight to the sky and is not shrouded or shadowed by buildings, trees etc.
- Page 8 Version 2.0 Copyright Roger™-GPS 2019 10 01 The indications of the status LEDs are: CONSTANT GREEN: The transmitter is working correctly, no further adjustment is required. CONSTANT RED/GREEN: The transmitter is working at its maximum output and the gain should be reduced slightly until a constant green is achieved.
- Page 9 Splitter 1 to 5. ROGER™ GNSS Amplifier (GNSS-A) ROGER™ GNSS Splitter 1 to 5 (GNSS-S) ROGER™ GNSS Line Amplifier is used to allow With the ROGER™ GNSS Signal Splitter, the signal longer cable runs and/or signal splitting to several from one external antenna can be redistributed GNSS Repeaters.
- Page 10 ROGER™ GNSS Splitter 1 to 2 (GNSS-S2) ROGER™ GNSS Amplifier & Splitter is a combined With the ROGER™ GNSS Signal Splitter 1 to 2, the signal splitter and line amplifier with an output of signal from one external antenna can be +12dB (1 port) and +4 dB (2 ports) that can redistributed to up to two repeater units.
- Page 11 Version 2.0 Copyright Roger™-GPS 2019 10 01 ROGER™ GNSS-L1G1GA repeater technical information: Size: 110*143*28 mm Frequencies: GALILEO E1: 1.57542 GHz GPS L1: 1.57542 GHz GLONASS G1: 1.602 GHz BEIDOU B1: 1.5611 GHz Weight: 165 g Overall Gain: > 40dB Noise Figure: <...
- Page 12 Roger-GPS Ltd. Roger-GPS Ltd shall not be responsible to the Buyer or any other party in respect of any claims arising out of the sale of the products. Roger-GPS Ltd does not warrant the software delivered under these conditions per se but agrees to maintain the software for a period of 90 days from the date of delivery of the relevant software.
