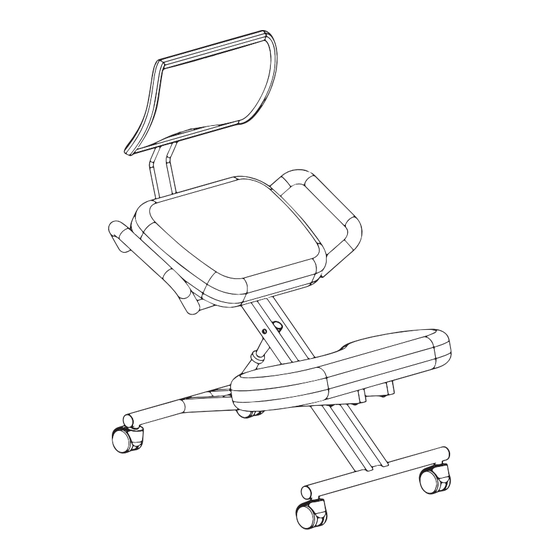

Black Kneeling Chair with Back Support
Instruction Manual
SKU: DN-CH-K02B
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/collections/chairs/products/dn-ch-k02b
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@idragonn.com
www.idragonn.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for DRAGONN DN-CH-K02B
Summary of Contents for DRAGONN DN-CH-K02B
- Page 1 Black Kneeling Chair with Back Support Instruction Manual SKU: DN-CH-K02B Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/collections/chairs/products/dn-ch-k02b GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@idragonn.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 Insert Upper Frame (A) into Lower Frame (B) and align front holes to one of three positions, depending on the user’s height. Assemble frames using the Long Sleeve Nut (S-A) with M6x12mm Screws with Washers (S-E) and tighten using both 5mm Allen Wrenches (T-A). Shorter Taller STEP 2... - Page 4 STEP 3 Connect Adjustable Support (C) to rear of Lower Frame (B) using Short Sleeve Nut (S-C) with M6x12mm Screws with Washers (S-E) and tighten using 5mm Allen Wrenches (T-A). STEP 4 Assemble Knee Pad (E) to front of Lower Frame (B) using M6x35mm Screws with Washers (S-G).
- Page 5 STEP 5 Install Casters (F) into Lower Frame (B) and Locking Casters (G) to Upper Frame (A). STEP 6 Insert end of Back Rest Support (I) into slots in Back Rest Hinge (J), then place Back Rest Hinge Cover (K) on Back Rest Hinge (J).
- Page 6 STEP 7 Secure Back Rest Support (I) with Back Rest Hinge (J) to Back Rest (L) using M6x20mm Screws (S-D). Tighten screws with 5mm Allen Wrench (T-A). STEP 8 Assemble back Back Rest Support (I) and Grip Handles (H) to Seat Pad (D) using M6x20mm Screws (S-D).
- Page 7 STEP 9 Secure the seat assembly to Upper Frame (A) using M6x16mm Screws With Washers (S-F) and the Phillips end of 5mm Allen Wrench (T-A). STEP 10 Adjust seat height and angle by turning the knob on the Adjustable Support (C).
- Page 8 We are happy to replace parts to ensure you have a fully functioning product. help@idragonn.com www.idragonn.com 309-278-5303 Chat live with an agent! FOR MORE DRAGONN PRODUCTS, CHECK OUT OUR WEBSITE AT: www.idragonn.com...
