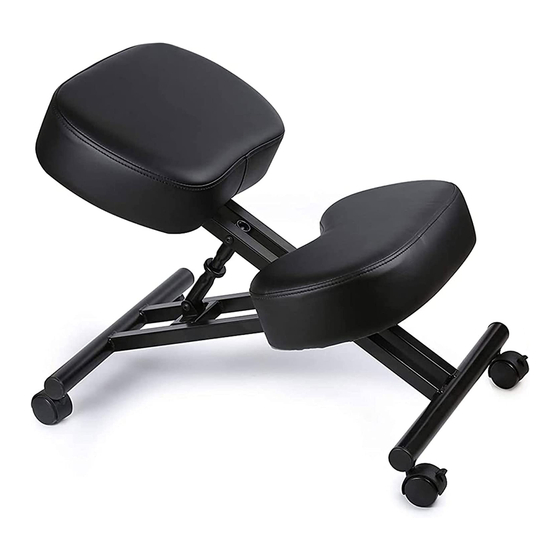

Black ergonomic kneeling chair

Advertisement

Quick Links

Black Ergonomic Kneeling Chair
Instruction Manual
SKU: DN-CH-K01B
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/collections/chairs/products/dn-ch-k01b
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@idragonn.com
www.idragonn.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DN-CH-K01B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DRAGONN DN-CH-K01B

  • Page 1 Black Ergonomic Kneeling Chair Instruction Manual SKU: DN-CH-K01B Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/collections/chairs/products/dn-ch-k01b GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@idragonn.com www.idragonn.com...
  • Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury.
  • Page 3 ASSEMBLY STEPS STEP 1 Insert Upper Frame (A) into Lower Frame (B) and align front holes to one of three positions, depending on the user’s height. Assemble frames using the Long Sleeve Nut (S-F) with Short Screws with Washers (S-A) and tighten using the Allen Wrenches (T-A). Shorter Taller...
  • Page 4 STEP 2 Assemble Adjustable Support (C) to rear of Upper Frame (A) using Medium Sleeve Nut (S-E) with Short Screws with Washers (S-A) and tighten using the Allen Wrenches (T-A). STEP 3 Connect Adjustable Support (C) to rear of Lower Frame (B) using Short Sleeve Nut (S-D) with Short Screws with Washers (S-A) and tighten using the Allen Wrenches (T-A).
  • Page 5 STEP 4 Assemble Seat Pad (D) to rear of Upper Frame (A) using Medium Screws with Washers (S-B). Tighten all screws with the Allen Wrench (T-A). STEP 5...
  • Page 6 STEP 5 Assemble Knee Pad (E) to front of Lower Frame (B) using Long Screws with Washers (S-C). Tighten all screws with the Allen Wrench (T-A). STEP 6 Press fit Casters (F) and Locking Casters (G) into holes on underside of the frames.
  • Page 7 STEP 7 Adjust seat height and angle by turning the knob on the Adjustable Support (C).
  • Page 8 We are happy to replace parts to ensure you have a fully functioning product. help@idragonn.com www.idragonn.com 309-278-5303 Chat live with an agent! FOR MORE DRAGONN PRODUCTS, CHECK OUT OUR WEBSITE AT: www.idragonn.com...
