SPECIFICATIONS
Image Sensor
: 1/3" Sony CCD
TV System
: PAL
Horizontal Resolution
: 650 TVL
Electronic shutter time
: 1/50 to 1/100,000 seconds
S/N Ratio
:
=52dB
Sync system
: Internal synchronization
Lens
: 4 - 9 mm
Video Output
: 1.0 Vp-p, 75 ohms
Video Output
: Mini DIN / BNC
Power supply
: 12V DC / 1A
Power Consumption
: 2,8 W
Operation temp
: -10° C ~ 50° C

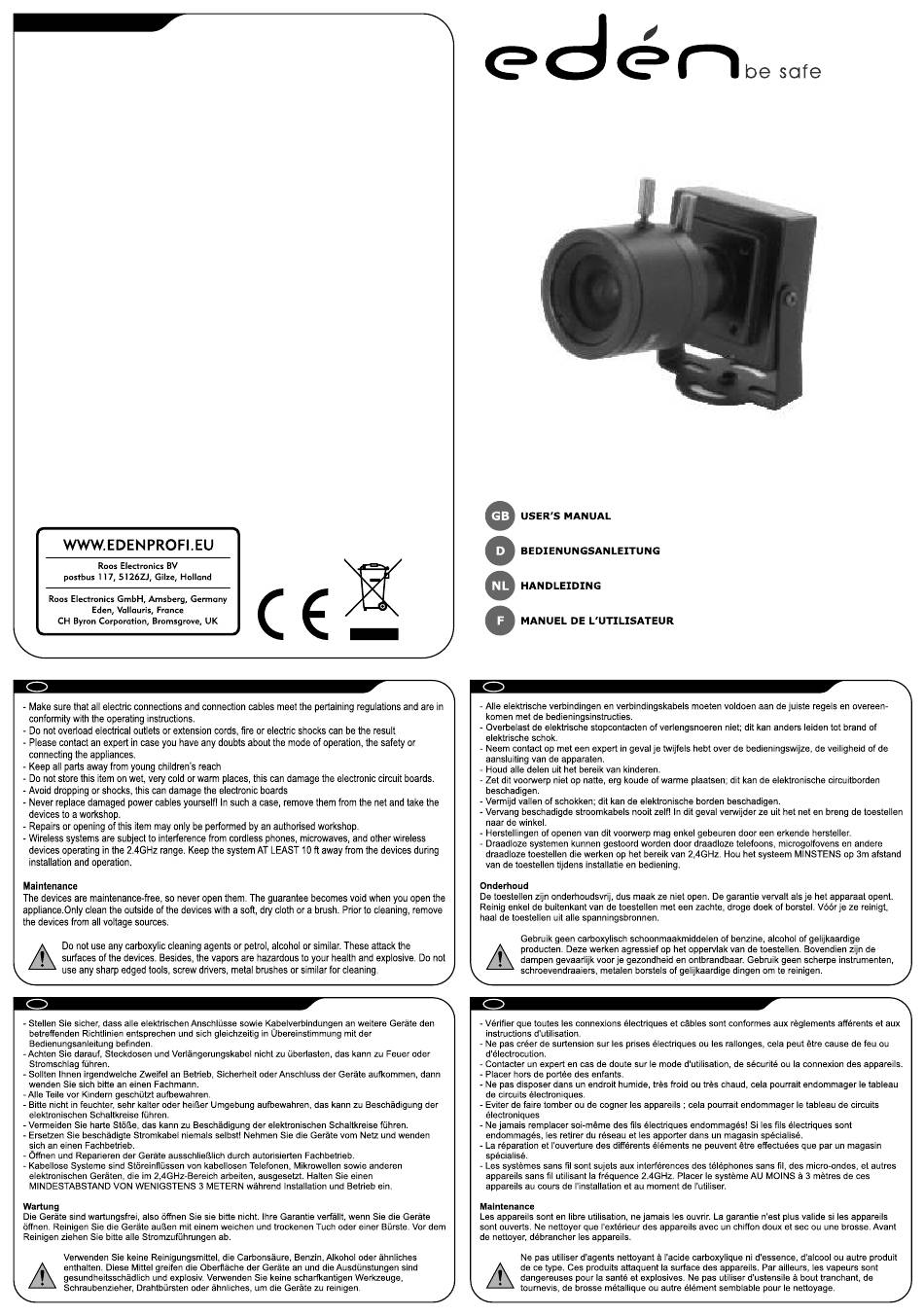

SAFETY AND MAINTENANCE INSTRUCTIONS
GB
SICHERHEITS- UND WARTUNGSHINWEISE
D
(AGC off)
VEILIGHEIDS- EN ONDERHOUDSINSTRUCTIES
NL
INSTRUCTIONS DE SECURITE ET D'ENTRETIEN
F
C1111C
Advertisement
Related Manuals for Eden C1111C
Summary of Contents for Eden C1111C
- Page 1 : Mini DIN / BNC Power supply : 12V DC / 1A Power Consumption : 2,8 W Operation temp : -10° C ~ 50° C C1111C SAFETY AND MAINTENANCE INSTRUCTIONS VEILIGHEIDS- EN ONDERHOUDSINSTRUCTIES SICHERHEITS- UND WARTUNGSHINWEISE INSTRUCTIONS DE SECURITE ET D'ENTRETIEN...
- Page 2 Overview a. Camera b. Camera Lens c. Mounting plate a. Kamera b. Kameralinse c. Montageplatte a. Camera b. Lens c. Bevestigingsplaat a. C améra Objectif de la caméra c. Montage à plat How to connect AV (bnc) Mini DIN plug Monitor Adapter DC12V...
