SPECIFICATIONS
Image Sensor
: 1/3 " Sony CCD
TV System
: PAL / NTSC
Horizontal Resolution
: 540 TVL
Electronic shutter time
: 1/50 (1/60) to 1/100,00 seconds
S/N Ratio
: 50db (AGC off)
Minimum illumination
: 0 Lux
Sync system
: Internal synchronization
White Balance
: Automatic / manual
Back Light Compensation
: Built-In
Infrared lamps
: 28
Infrared view distance
: 25 m
Lens
: 3,6 mm
Video Output
: 1.0 Vp-p, 75 ohms
Video Output
: Mini DIN / BNC
Power supply
: 12V DC / 1A
Power Conssumption
: 4 W
Operation temp
: -10° C ~ 50° C
SAFETY AND MAINTENANCE INSTRUCTIONS
GB
SICHERHEITS- UND WARTUNGSHINWEISE
D
VEILIGHEIDS- EN ONDERHOUDSINSTRUCTIES
NL
INSTRUCTIONS DE SECURITE ET D'ENTRETIEN
F
C1122
Advertisement
Related Manuals for Eden C1122
Summary of Contents for Eden C1122

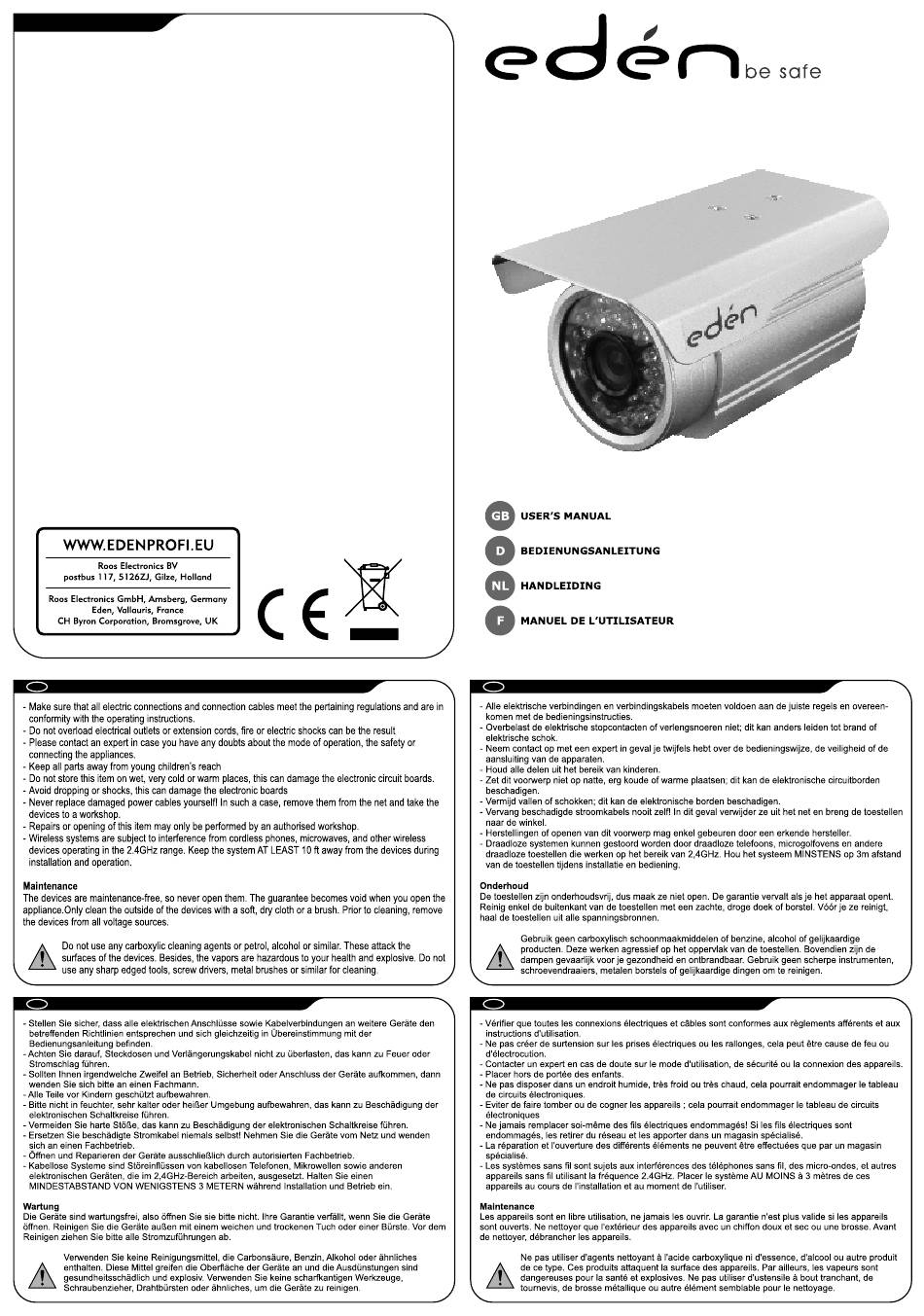

- Page 1 : Mini DIN / BNC Power supply : 12V DC / 1A Power Conssumption : 4 W Operation temp : -10° C ~ 50° C C1122 SAFETY AND MAINTENANCE INSTRUCTIONS VEILIGHEIDS- EN ONDERHOUDSINSTRUCTIES SICHERHEITS- UND WARTUNGSHINWEISE INSTRUCTIONS DE SECURITE ET D'ENTRETIEN...
- Page 2 Overview a. Rain cover b. Camera Lens c. Leds d. Mounting plate Regenschutz b. Kamera-Objektiv c. Leds d. Befestigungsplatte Regen- / zonnescherm Cameralens c. Leds d. Bevestigingsplaat Protection contre la pluie Lentille c. Led d. Montage à plat How to connect AV (bnc) Mini DIN plug Monitor...
