SPECIFICATIONS
Image Sensor
: 1/3" HR CCD
TV System
: PAL / NTSC
Horizontal Resolution
: 520 TVL
Electronic shutter time
: 1/50 (1/60) to 1/100,00 seconds
S/N Ratio
: 48 dB (AGC off)
Minimum illumination
: 0 Lux
Sync system
: Internal synchronization
White Balance
: Automatic tracking
Back Light Compensation
: Built-In
Infrared lamps
: 56
Infrared view distance
: 40 m
Lens
: 6 mm
Video Output
: 1.0 Vp-p, 75 ohms
Video Output
: BNC
Power supply
: 230 V
Power Conssumption
: 8,7 W
Operation temp
: 0° C ~ 40° C

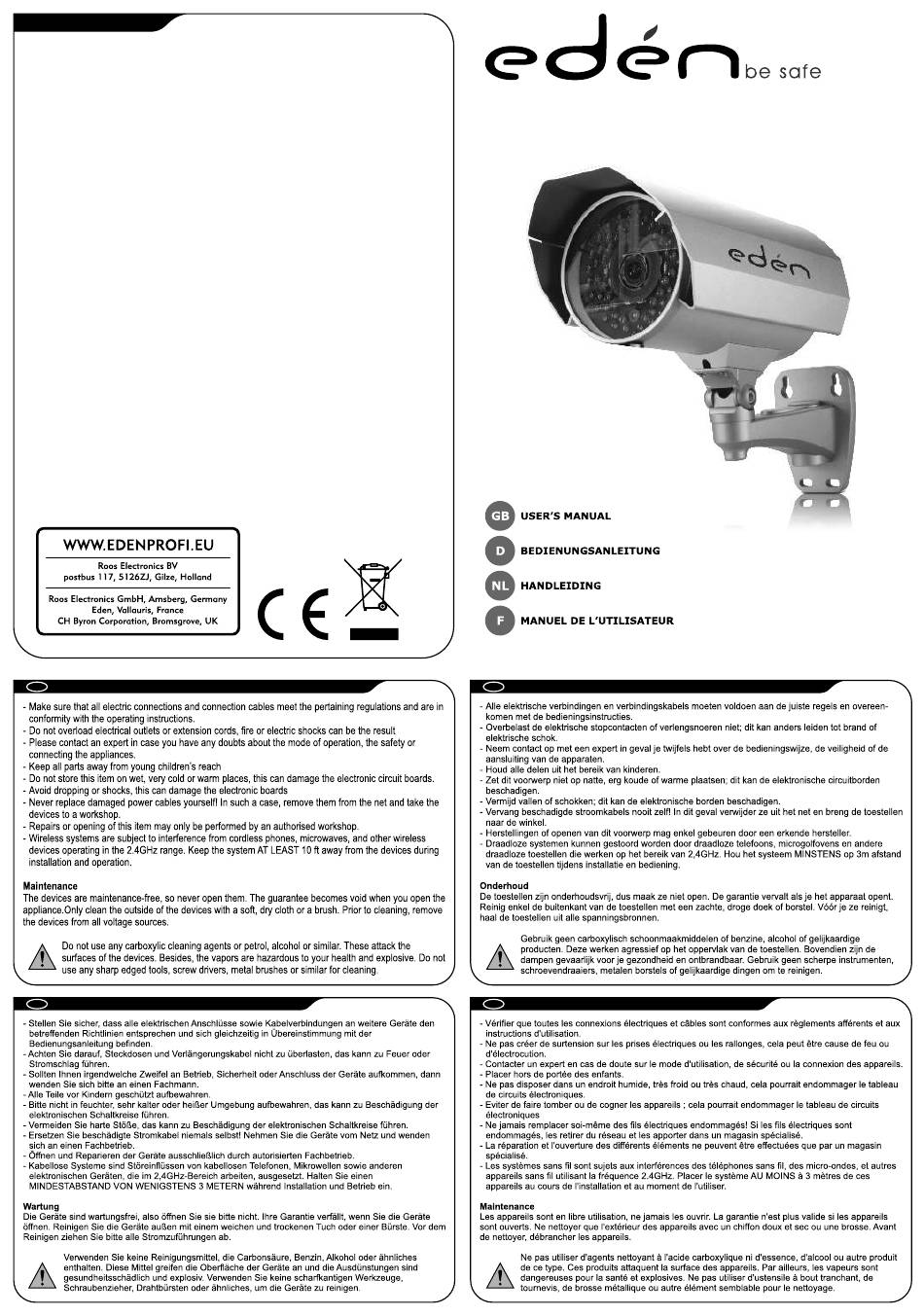

SAFETY AND MAINTENANCE INSTRUCTIONS
GB
SICHERHEITS- UND WARTUNGSHINWEISE
D
VEILIGHEIDS- EN ONDERHOUDSINSTRUCTIES
NL
INSTRUCTIONS DE SECURITE ET D'ENTRETIEN
F

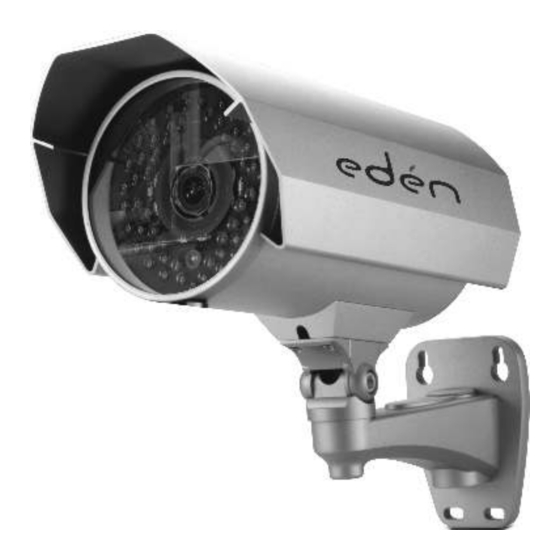

C1152
Advertisement
Table of Contents
Related Manuals for Eden C1152
Summary of Contents for Eden C1152
- Page 1 : 1.0 Vp-p, 75 ohms Video Output : BNC Power supply : 230 V Power Conssumption : 8,7 W Operation temp : 0° C ~ 40° C C1152 SAFETY AND MAINTENANCE INSTRUCTIONS VEILIGHEIDS- EN ONDERHOUDSINSTRUCTIES SICHERHEITS- UND WARTUNGSHINWEISE INSTRUCTIONS DE SECURITE ET D'ENTRETIEN...
- Page 2 Overview a. Rain cover b. camera lens c. Leds d. Unscrew to AIM the camera screw to fix the camera e. Mounting plate a. Regenschutz b. Kamera-Objektiv c. Leds d. Aufschrauben zum Ausrichten der Kamera und Zuschrauben zum Fixieren e. Befestigungsplatte a.
