SPECIFICATIONS
Image Sensor
TV System
Horizontal Resolution
Electronic shutter time
S/N Ratio
Minimum illumination
Sync system
White Balance
Back Light Compensation
Infrared lamps
Infrared view distance
Lens
Video Output
Video Output
Power supply
Power Conssumption
Operation temp

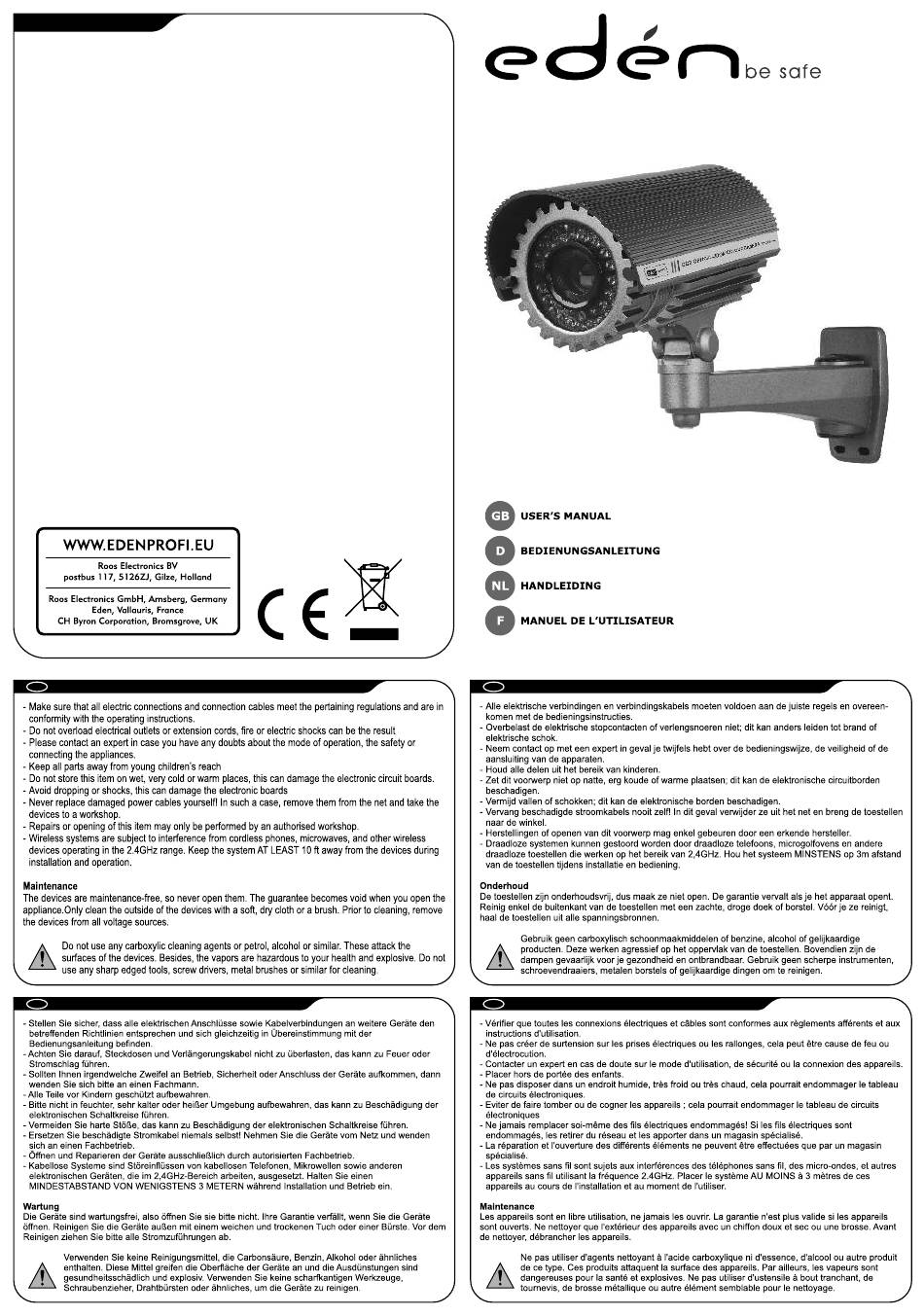

SAFETY AND MAINTENANCE INSTRUCTIONS
GB
SICHERHEITS- UND WARTUNGSHINWEISE
D
: 1/3" Sony CCD
: PAL / NTSC
: 650 TVL
: 1/50 (1/60) to 1/100,000 seconds
:
=52dB
(AGC off)
: 0 Lux
: Internal synchronization
: Automatic / manual
: ON/OFF optional
: 42
: 40 m
: 3,5 - 8 mm
: 1.0 Vp-p, 75 ohms
: Mini DIN / BNC
: 12V DC / 1A
: 4 W
: ~ 50° C
VEILIGHEIDS- EN ONDERHOUDSINSTRUCTIES
NL
INSTRUCTIONS DE SECURITE ET D'ENTRETIEN
F
C1132C
Advertisement
Table of Contents
Related Manuals for Eden C1132C
Summary of Contents for Eden C1132C
- Page 1 Video Output : Mini DIN / BNC Power supply : 12V DC / 1A Power Conssumption : 4 W Operation temp : ~ 50° C C1132C SAFETY AND MAINTENANCE INSTRUCTIONS VEILIGHEIDS- EN ONDERHOUDSINSTRUCTIES SICHERHEITS- UND WARTUNGSHINWEISE INSTRUCTIONS DE SECURITE ET D'ENTRETIEN...

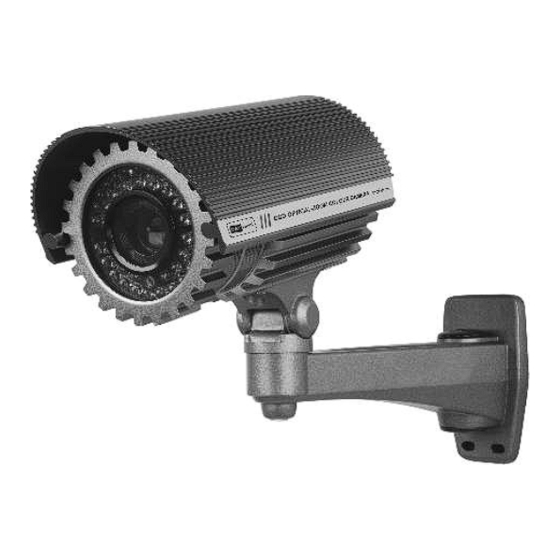

- Page 2 Overview a. Rain Cover b. Camera Lens c. Leds d. Unscrew to AIM the camera screw to fix the camera e. Mounting Plate Regenschutz b. Kamera-Objektiv c. Leds d. Aufschrauben zum Ausrichten der Kamera und Zuschrauben zum Fixieren e. Befestigungsplatte Regenscherm Cameralens c.
