Electric vehicle AC charger

User manual

（封面请美工重新设计）

Table of Contents

Need help?

Do you have a question about the A0070230E11 and is the answer not in the manual?

Questions and answers

Summary of Contents for LIVOLTEK A0070230E11

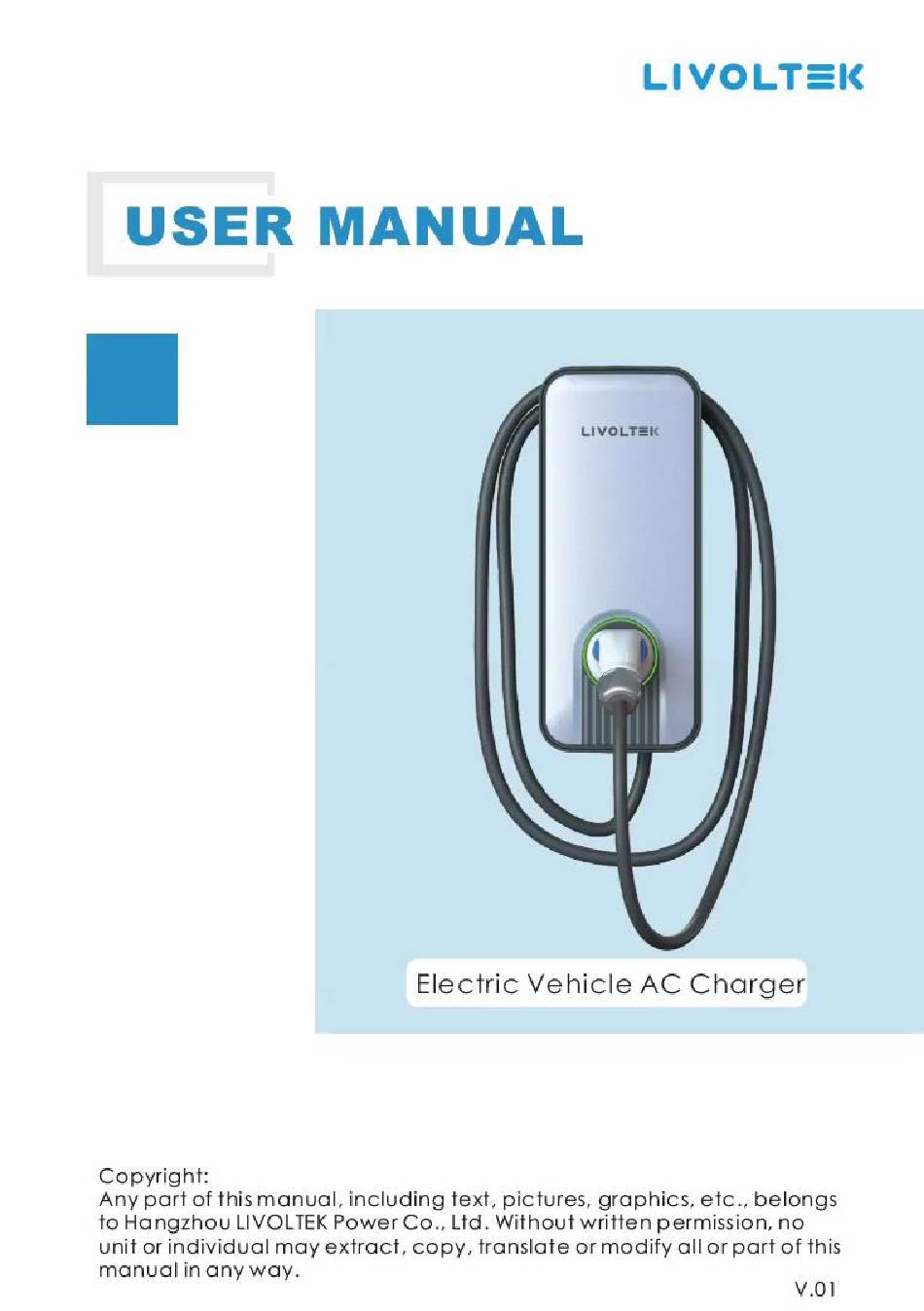

Page 1 Electric vehicle AC charger User manual （封面请美工重新设计）...
Page 3: Table Of Contents
Catalogue 1 About this manual ..................1 1.1 Applicable chargers ................1 1.2 Applicable readers ................1 1.3 Sign description ..................1 1.4 Manual preservation ................1 2 Safety statements ................... 2 3 Packing list ......................5 4 Product introduction ..................7 4.1 Product appearance .................
Page 4: About This Manual
1 About this manual 1.1 Applicable chargers LIVOLTEK A0070230E11  LIVOLTEK A0070230E12  1.2 Applicable readers Charger user  Charger installer  Charger maintenance personnel  1.3 Sign description Sign Description Description text, indicating supplementary description and interpretation of the text.
Page 5: Safety Statements
2 Safety statements Quality requirements for installation and maintenance personnel:  Have the qualification certificate or experience in electrical power system installation and maintenance, and have the qualification to engage in relevant work (such as live working). In addition, they must have the following knowledge and operating skills.
Page 6 Persons not authorized by LIVOLTEK are not allowed to open the charger.  Do not disassemble, repair or refit the charger and relevant ancillary ...
Page 7 If the vehicle connector and vehicle inlet are found to be damaged by melting and foreign matters, please stop using the charger immediately and consult the LIVOLTEK customer service for proper treatment. For the unused charger, it is recommended to disconnect the circuit breaker ...
Page 8: Packing List
Quick Rj45 Installation installation terminal Certificate hole diagram User manual guide Item Model Quantity Dimension/ Weight Charger A0070230E11/ 1 PCS 170X400 X 110mm A0070230E12 3.7kg/Separate charger Expansion pipe Φ6X28 mm 4 PCS Tapping screw ST3.9X27 4 PCS Insulated terminal RV5.5-5...
Page 9 Installation column (optional) packing list  Pan head Installation combination column Expansion bolt screw Pan head screw Instructions Item Model Quantity Installation column AC1-SCE 1PCS Expansion bolt M10X120 mm 4PCS Pan head combination screw M4X10_SL / SUS 304 1PCS Pan head screw M4X16_SL / SUS 304 2PCS Instructions...
Page 10: Product Introduction
4 Product introduction LIVOLTEK charger supports wall mounted and column mounted installation, and the installation site is flexible; With overvoltage, undervoltage, overcurrent and other protection, IP degree reaches IP54, safe and reliable use; In addition, a variety of communication interfaces are reserved in the charger, which can be interconnected with electricity meters, inverters and other communication, so as to realize richer scene applications.
Page 11: Technical Parameter
4.2 Technical parameter Product Single-phase AC EV Charger Model A0070230E11 A0070230E12 Charging Interface Type Type 2/5m Type 1/5m Rated Power 7.3kW Input Voltage 230Vac± 10% Rated Frequency 50Hz/60Hz 0～32A Current Range Way of Starting Plug & Charge/APP (RFID Card Optional) Noise ≤65dB...
Page 12: Safety Protection
4.3 Safety protection Electrical protection  The LIVOLTEK charger has the functions of overvoltage protection, undervoltage protection, overcurrent protection, short circuit protection, leakage protection and grounding protection. Emergency stop protection  In case of power failure in case of emergency during charging, press the emergency stop button to stop charging immediately.
Page 13: Indicator Status
4.5 Indicator status Indicator Status Charger status Always on Standby Flashing Charging complete Slow flashing Plug in complete and wait for charging Fast flashing Starting charging Always on Charging CP status abnormal Emergency stop fault Leakage current fault Overvoltage fault Overcurrent fault Undervoltage fault Grounding fault...
Page 14: Application Scenario
4.6 Application scenario Use alone  Cooperate with the general electricity meter  Integrated photovoltaic energy storage and charging ...
Page 15: Installation & Wiring
5.1 Installation environment Requirements It is recommended that the charger be installed by an authorized service  provider of LIVOLTEK. The installation position of charger shall not be close to dangerous positions  such as water pipe, gas pipe and steam pipe.
Page 16: Tools Preparation
5.2 Tools Preparation Tool Illustration Function Multimeter Check electrical performance. Electric drill Drill mounting holes. Hot ari gun Heating shrinkable tube. Cross screwdriver / PH2 Set screws. Wire stripper Cut and peel wires. Crimping pliers Press insulated terminals. Hammer Fix expansion pipes. Wrench / 17 mm When installing the column, fix expansion...
Page 17: Installation Of Charger
5.3 Installation of charger Wall mounted installation  1. Drill 3 mounting holes (Φ6X35 mm) on the mounting surface according to the installation hole diagram. Unit: mm 2. Insert the 3 expansion pipes (Φ6X28 mm) in the accessory package. 3. Lock 2 ST3.9x27 tapping screws into the upper expansion pipe and reserve a 5mm distance from the mounting surface.
Page 18 4. Loosen the 2 screws at the lower part of the charger, push the panel upward and open it. 5. Loosen the 4 screws on the middle plate and open the middle plate. 6. Hang the bottom shell on the 2 tapping screws above, lock the bottom tapping screw, and cover the sealing plug to complete the installation of the...
Page 19 Column mounted installation  1. Drill 4 installation holes (Φ14X120 mm) on the cement base according to the column installation hole diagram. Unit: mm Install M10x100 expansion bolts into mounting holes and fasten the expansion bolts to ensure that the exposed height of the expansion bolts is between 15 ~ 25mm.
Page 20 4. Loosen the 3 M3x8 screws on the column base, lift the bottom cover, align the column with the installation hole of the cement base one by one, and then tighten the 4 nuts. 5. Close the bottom cover and tighten3 M3x8 screws to complete the installation of the column.
Page 21: Grid Architecture Wiring
5.4 Grid architecture wiring TN-C-S  TN-S  ...
Page 22: Incoming Cable Preparation
5.5 Incoming cable preparation It is recommended that the specification of AC incoming cable is 3x6mm ²  (outer diameter range: 13 ~ 16mm), the specific treatment method of incoming cable is shown in the figure below: Unit: mm 5.6 Communication network cable preparation If the charger needs RS485 communication, it is recommended to adopt EIA ...
Page 23: Wiring Of Charger
5.7 Wiring of charger 1. Pass the incoming cable through the incoming sealing ring of the charger, and then through the incoming cable hoop. 2. According to the corresponding “L”, “N” and “PE” terminal blocks on the control board, connect the “L”, “N” and “PE” lines of the cable and fix them with reserved M5x10 screws.
Page 24 RS485 communication. The corresponding wiring mode is shown in the figure. The recommended inverter is LIVOLTEK-HYPER-5000, and the wiring of other models of inverters shall be subject to the real object.
Page 25 Note: 6. Install the middle plate on the bottom shell and fasten it with the reserved screws. 7. Fix the panel to the middle panel and fasten it with reserved screws to complete the wiring of the charger. Note: It is recommended to connect one 1P + N + PE surge protection device (Class C) at the front end of the incoming line of the charger, and the corresponding wiring shall be subject to the requirements of the surge protection device.
Page 26: Operating Instructions
6 Operating instructions 6.1 Plug and charge The charger supports plug and charge.  When the charger is in standby, the user first inserts the vehicle connector into the vehicle inlet. After the car recognizes that the vehicle connector is inserted, the charger starts charging.
Page 27: App Operating Instructions
111111 to pair with the charger. *Note: The name of charger is AC - {SN last 8 digits}. Step 2: Open LIVOLTEK APP , enter “Local Mode > Bluetooth Mode” on the login page, and select the charger for access.
Page 28 “Dynamic Mode”: Charger adapt dynamically to the generations and consumptions under the restricted grid import. “ECO Mode”: Manage the charging power together with LIVOLTEK solar energy storage system. *Note: Only 1 mode can be enable at the same “Dynamic Mode”...
Page 29 3 Start-up charging. Step 1: Check the status of the charger, only when it is “Available” and “Connected” to EV, you can touch the “START UP” to charge. Charger Status Vehicle Connector Status Available Connected Starting Half connected Charging Disconnected Charging over Startup failed Scheduled...
Page 30 4 Create a charging schedule. Step 1: Touch schedule list hot zone as shown in the home page to enter Schedule page, and press the “ “ icon to enter the new schedule page to create a charging schedule. Step 2: Set the charging Start Up time and End Up time and Repeater rules, and then confirm to create the charging schedule.
Page 31 5 View historical sessions. Enter the historical session page through the “>>” icon on the right side of “Last Session” on the home page to view all historical sessions of the charger.
Page 32 6 View historical alarms. Enter the alarm center page through the “ “ icon at the top of the home page to view all historical alarms of the charger. 7 Local tariffs setting. The charger supports estimating charging costs by setting local tariffs. You can set the charging tariff in “Settings >...
Page 33: Troubleshooting
Download address: https://www.livoltek-portal.com/ess-ui/static/download.html 7 Troubleshooting Fault Possible cause Recommended measure The status No power input. Check whether the input cable is indicator is reliably connected and whether the not on front circuit breaker is closed. Input voltage too Measure the input voltage with a high.
Page 34 the emergency stop button before use. Poor input or Check whether the connection of input output PE and output PE is tight and reliable. grounding. After troubleshooting, power on again. CP voltage Please contact the after-sales service sampling value is personnel to check whether the problem not 6V.
Page 35: Disclaimer
8 Disclaimer There are clear requirements and conditions for the transportation, storage, installation and use of electric vehicle charger. LIVOLTEK is not responsible for providing free relevant services, technical support or compensation, including but not limited to: The charger has expired the warranty period and has not purchased ...
