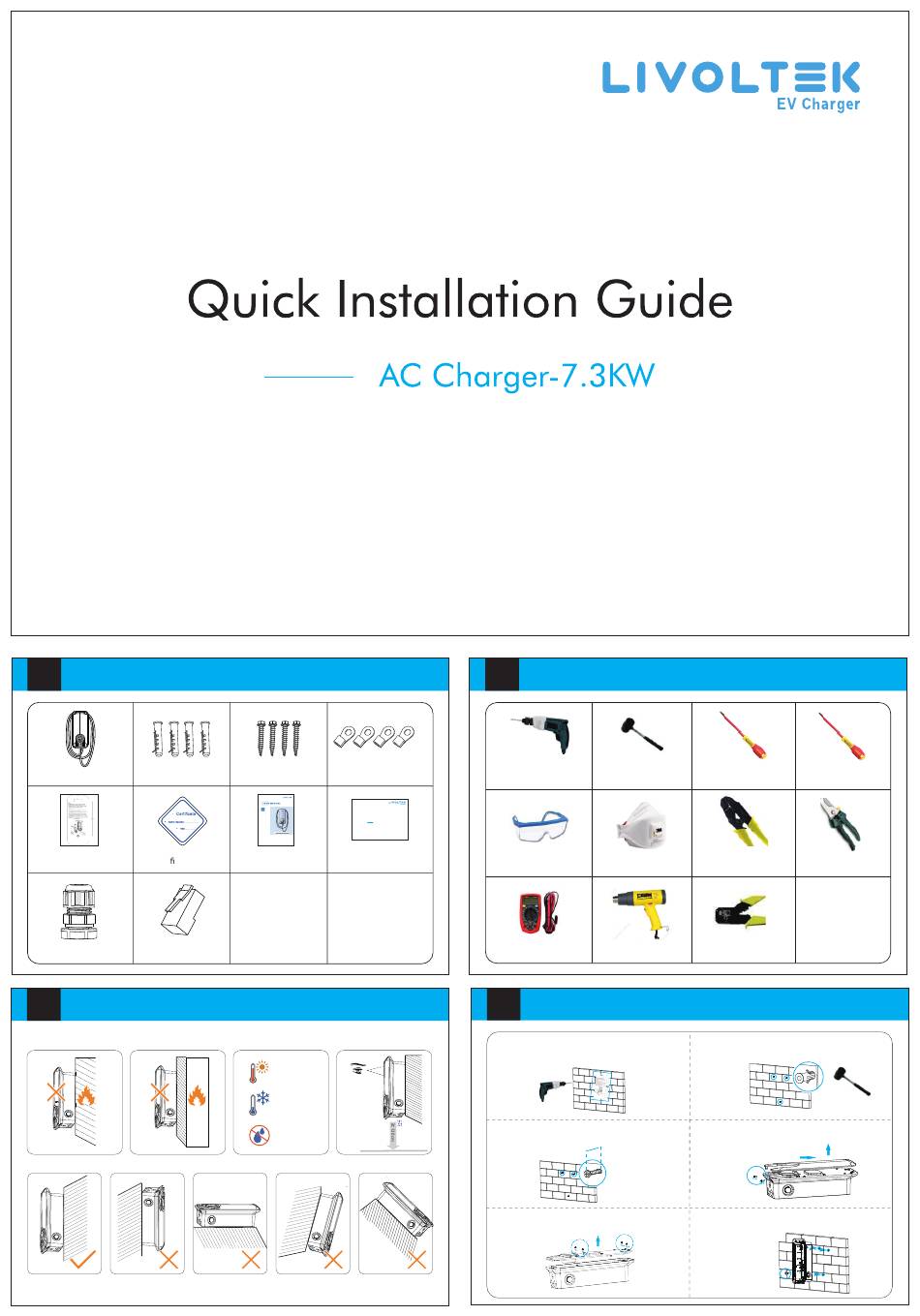

LIVOLTEK Atom Quick Installation Manual

Packing Lists
I
Charger * 1
Expansion pipe * 4
Installation hole
Certi cate * 1
diagram * 1
Rj45 terminal * 1
Gland * 1
Mounting Place
III
Tapping screw * 4
Insulated terminal * 4
Quick Installation Guide
AC Charger-7.3kW
Quick installation
User manual * 1
guide * 1
≤50℃
≥-30℃
≤95℃
Preparation Tools
II
Φ6
Electric drill Rubber hammer
Goggle Anti-dust mask
Multimeter Hot air gun
Wall Mounting
IV
Step1: put the installation hole diagram on the wall and use
①
electric drill to drill 3 mounting holes (Φ6X35 mm)
according to the installation hole diagram.
Step3: Lock 2 tapping screws into the upper expansion
③
pipe and keep 5mm.
5mm
distance to hang the
charger.
Step 5: Loosen the 4 screws at cover of the charger, then
⑤
you can open the middle board of the charger.
PH2 2mm
Cross screwdriver Slotted screwdriver
Round terminal
crimping pliers Wire stripper
Cable clamp (RJ45)
Step2: use hammer to insert the 3 expansion pipes to the
②
wall.
Step 4: Loosen the 2 screws at the bottom of the charger,
④
then push upward to open the top cover of the charger.
Step 6: Hang the bottom shell on the 2 tapping screws
⑥
above, then lock the bottom tapping screw and cover the
sealing plug.
