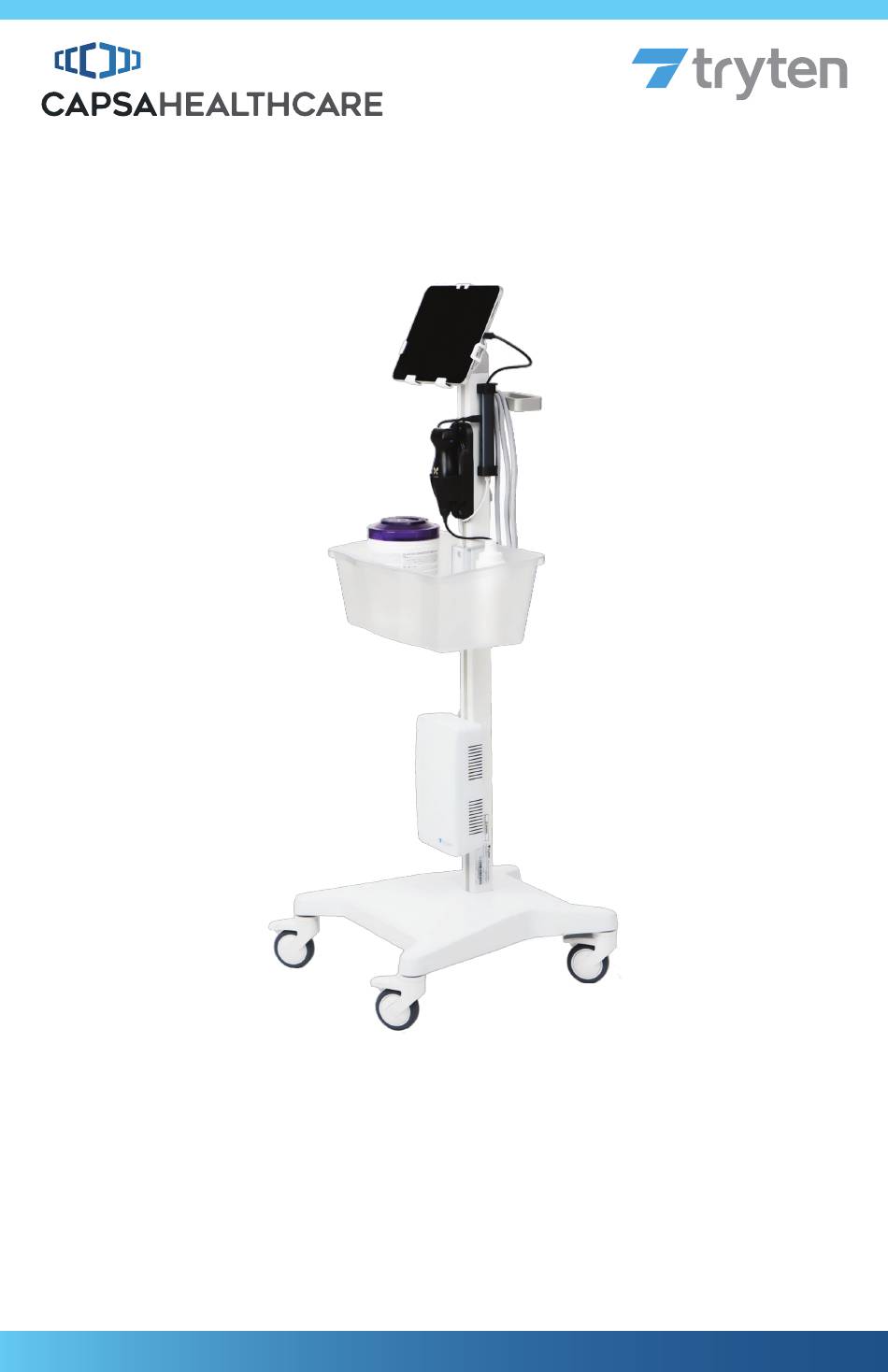

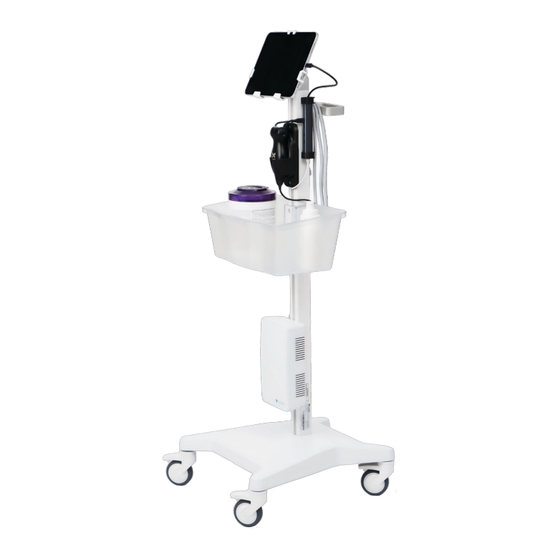

iQ+ Probe and Mobile Device
Charging Kit Brackets
Assembly Guide
Covers model T2600-BF
©2024 Capsa Healthcare
Part # 110531 iQ+ Probe and Mobile Device Charging Kit Brackets Assembly Guide Rev A
www.CapsaHealthcare.com | 800.437.6633

Advertisement

loading
Need help?

Need help?

Do you have a question about the Tryten iQ+ T2600-BF and is the answer not in the manual?

Questions and answers

Related Manuals for Capsa Healthcare Tryten iQ+ T2600-BF

Summary of Contents for Capsa Healthcare Tryten iQ+ T2600-BF

  • Page 1 Mobility Platforms by Capsa Healthcare Engineering a path to better care. iQ+ Probe and Mobile Device Charging Kit Brackets Assembly Guide Covers model T2600-BF ©2024 Capsa Healthcare Part # 110531 iQ+ Probe and Mobile Device Charging Kit Brackets Assembly Guide Rev A...

  • Page 2: Table Of Contents

    Attach the Cables ................9 Copyright © 2024 Capsa Healthcare. All rights reserved. While Capsa Healthcare strives to provide complete and accurate information, it will not be held liable for any editorial errors or omissions. Capsa Healthcare reserves the right to make changes to the documentation without advanced notice to the customer.

  • Page 3: Introduction

    Introduction Introduction The iQ+ Probe and Mobile Device Charging Kit brackets allow you to keep your probe accessible, keep it charged, and keep it connected to your iPad for instant scanning. The Mobile Device Charging Kit includes a power adapter, USB power cable, and a USB splitter that lets you connect both power and your probe’s data cable to the iPad at the same time.

  • Page 4: What Else You Need

    iQ+ Probe and Mobile Device Charging Kit Brackets Assembly Guide What else you need You will also need: • The charging pad, adapter, power cable, and data cable that came with your Butterfly iQ+ Probe. • The Butterfly Mobile Device Charging Kit (“splitter kit”), including the power adapter and power cable that came with it.

  • Page 5: Power Cable Routing

    Introduction Power cable routing The power adapters for the probe’s charging pad and for the iPad (which connects to the splitter) are installed in the cart’s power box and plugged in to the power source inside the box. The cables from the adapters are routed out the back of the utility box, through the channel on the pole, then connected to their associated devices (the probe’s charging pad attached to the probe bracket, or the splitter in its bracket).

  • Page 6: Assemble The Probe Bracket

    iQ+ Probe and Mobile Device Charging Kit Brackets Assembly Guide Assemble the Probe Bracket 1. Place the probe’s charging pad in the probe bracket (A). 2. Snap the backplate onto the bracket behind the charging pad (B). Charging Backplate Bracket Bracket      ...
  • Page 7 Assemble the Probe Bracket 5. Move the bracket with probe charge plate up or down to the preferred height. 6. Tighten the screws using the provided ⁄ -inch hex key. Assemble the Probe Bracket Page 7...

  • Page 8: Assemble The Splitter Kit Bracket

    iQ+ Probe and Mobile Device Charging Kit Brackets Assembly Guide Assemble the Splitter Kit Bracket 1. For each piece of the splitter bracket, insert a screw through the flat side and loosely attach the Z-nut. 2. Attach one of the pieces to the back of the pole below the handle, with the bracket loop on the same side as the iPad’s USB port (A, below).

  • Page 9: Attach The Cables

    Attach the Cables Attach the Cables NOTE: In order to run the power cables through the channel on the pole, you may need to remove accessories on the front of the pole. 1. Remove the channel cover strip above the utility box. 2.
  • Page 10 iQ+ Probe and Mobile Device Charging Kit Brackets Assembly Guide Page 10...
  • Page 11 iQ+ Probe and Mobile Device Charging Kit Brackets Assembly Guide Page 11...
  • Page 12 8170 Dove Parkway Canal Winchester, OH 43110 Support: 800.243.2465 or TechSupport@CapsaHealthcare.com Sales: 800.437.6633 or Info@CapsaHealthcare.com Parts: 855.734.4399 or parts.support@CapsaHealthcare.com ©2024 Capsa Healthcare Part # 110531 iQ+ Probe and Mobile Device Charging Kit Brackets Assembly Guide Rev A www.CapsaHealthcare.com | 800.437.6633...
