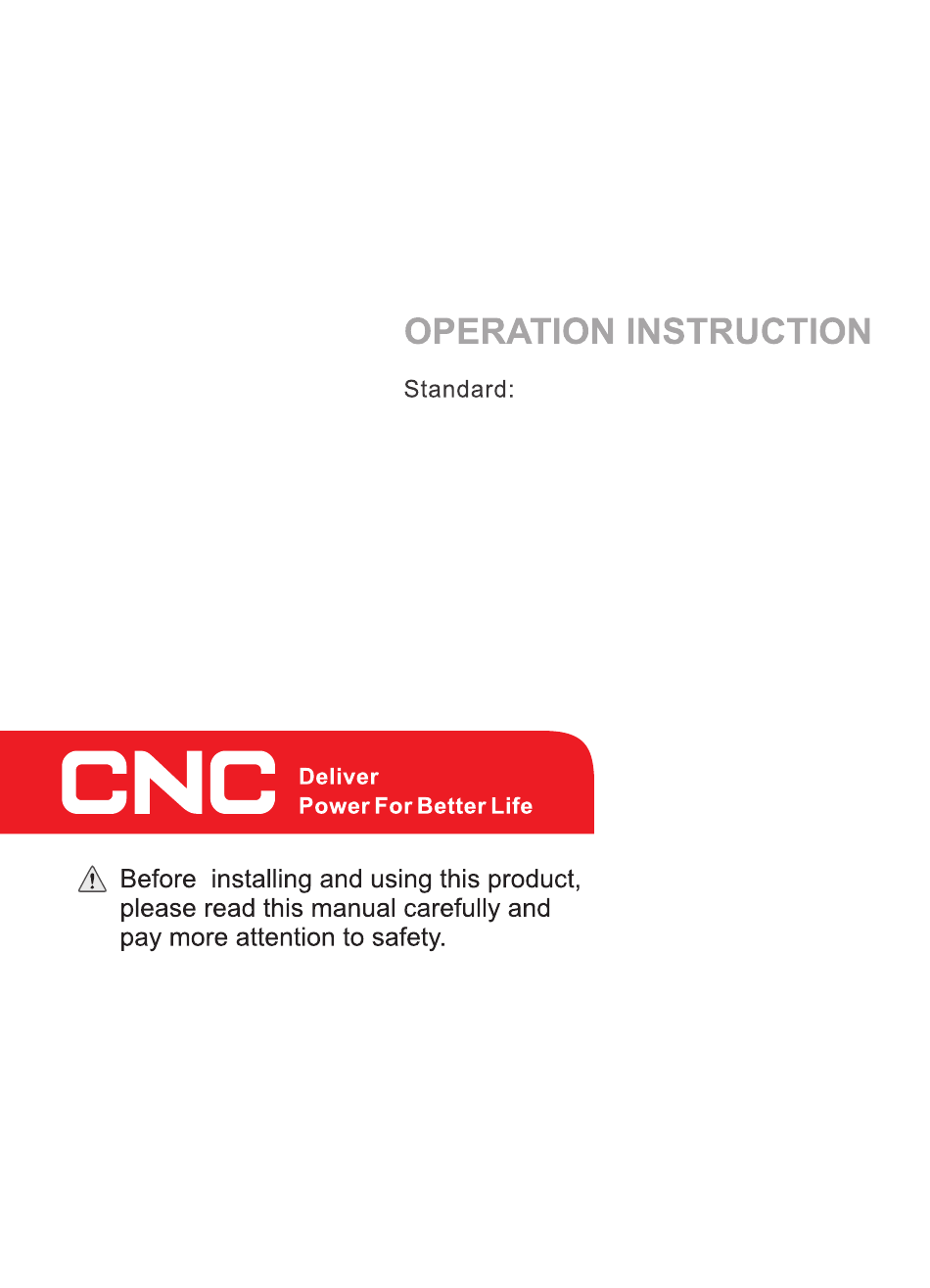

- Page 1 YCS1 Series Automatic Transfer Switch (ATS) Manual Instruction GA model IEC 60947-6-1...
- Page 2 Contents Index Types and meanings …………………………………………………………………… 03 Main technology parameters …………………………………………………………03 Products structure instructio …………………………………………………………04 Outline overall and installing dimensions ………………………………………05 Usage method ………………………………………………………………………………08 Connection terminal using method ………………………………………………11 Correct installation method for switch ……………………………………………12 Wiring method of switch ………………………………………………………………12 Debug indication ……………………………………………………………………………13...
- Page 3 Notice: Before you operate this Automatic transfer switch (hereinafter ATS),please read and understand these instructions carefully. Dangerous ▲Before you install or operate the ATS,please read and understand these instructions carefully.Only the professional ATS personnel can carry out this installation,adjustment, repair and maintenance. ▲Many parts of the ATS, including printed circuit boards, when it work on-line voltage, cannot touch these parts.
- Page 4 Check and install Picture 1 ■ ATS delivery Check and make sure the product is the ordering products. ■ Check the voltage Check and make sure the voltage and the working voltage of the ATS. Whether it is in the scope of the voltage. ■...
- Page 5 1.Type and meaning □ □ □ □ YC S 1 - Controller type 701: LED controller, 702: LCD controller, 701 and 702 work mode: self-input and self-recovery, or self-input without self-recovery. Blank: without controller, only work mode self-input and self-recovery; Rated current;...
- Page 6 3.Switch structure explain Control voltage Model and specification S1- / P Rated Voltage: AC400V Rated Frequency:50/60Hz Standard:GB/T14048.11 Position indication Electric key lock Mechanism padlock Switch body Picture 2 Ⅰ line for main power Ⅱ line connected for emergency power 101-106 control power input and output terminal 201-206 Switch controlling terminal 301-306 Switch working status...
- Page 7 4.Outline and installation dimensions □ 16A~1600A installation diagram( 2 input 1 output ) 400A~1600A Picture 5 Picture 4 100A Picture 6 160A~250A Picture 7 □ 16A~1600A installation dimensions( 2 input 1 output ) Total dimension Switch installation Connection terminal Specification φX 16~100A 245 110...
- Page 8 □ 16A~1600A installation diagram( 2 input 2 output ) 400A~1600A 100A~250A Picture 8 Picture 9 Picture 10 □ 1000A~1600A installation diagram R6.5 R6.5 800A~1000A 1250A~1600A Picture 11 Picture 12 □ 16A~1600A installation dimensions ( 2 input 2 output ) Total dimension Switch installation Connection terminal Specification...
- Page 9 □ 2000A~3200A 2 input 1 output installation diagram G biggest 1'/5' 3'/7' Picture 13 Picture 14 4 :1 2000～3200A Picture 15 Picture 16 □ 2000A~3200A installing dimensions Specification 2000A/3P 2000A/4P 1080 2500A/3P 2500A/4P 1080 3200A/3P 3200A/4P 1080...
- Page 10 5. Manual instruction 5.1: GA1 type Economic ATS manual instruction(Fit for rated current:16A-100A) Note: Please pay attention to Main power and Emergency power phase sequence corresponding relation when you are wiring the switch. Outside wiring Internal principle The style of switch terminal Neutral line wiring method of the 3Pole switch, please see the third diagram in this page.
- Page 11 5.2 GA type fire type ATS manual instruction( Fit for rated current:16A-3200A) Note: Please pay attention to Main power and Emergency power phase sequence corresponding relations when you are wiring the switch. Outside wiring Internal principle The style of switch terminal Power terminal Ⅰ...
- Page 12 Outside wiring Internal principle The style of switch terminal Start generator Start the generator signal (optional) Warning: Could not connect together with external wire. AC220V power supply Status indication terminal internal output Start the generator Status indication 220V Input Ⅰ Ⅱ...
- Page 13 5.3 GA type ATS using manual （Fit for 16A-3200A fission type ） Main power A/B/C/N phase and Emergency power A/B/C/N phase sequence corresponding Fission type controller Emergency Main power power Connect cable (User must connect it) User must connect it) Connect cable mark must be the same as ATS terminal mark...
- Page 14 7.Correct installation method of the switch Picture 19 Picture 20 Picture 21 Picture 22 19，20，21 is correct, 22 is incorrect Wiring methods of the switch The primary wiring diagram to see the picture 3. 8.2 The control power is derived from normal power，emergency power cand N phases. 8.3 Ⅰ...
- Page 15 9.The instruction of debug the switch 9.1 Connect the normal power(Ⅰ),emergency power(Ⅱ) to the corresponding copper bar respectively; ① Automatic debugging Normal power supply with electric,emergency power supply with Electric,switchⅠline switch on Normal power supply without electric,emergency power supply with electric,switch Ⅱswitch on Normal power supply with electric,switchⅠ...
- Page 16 YCS1 Series IEC 60947-6-1...
