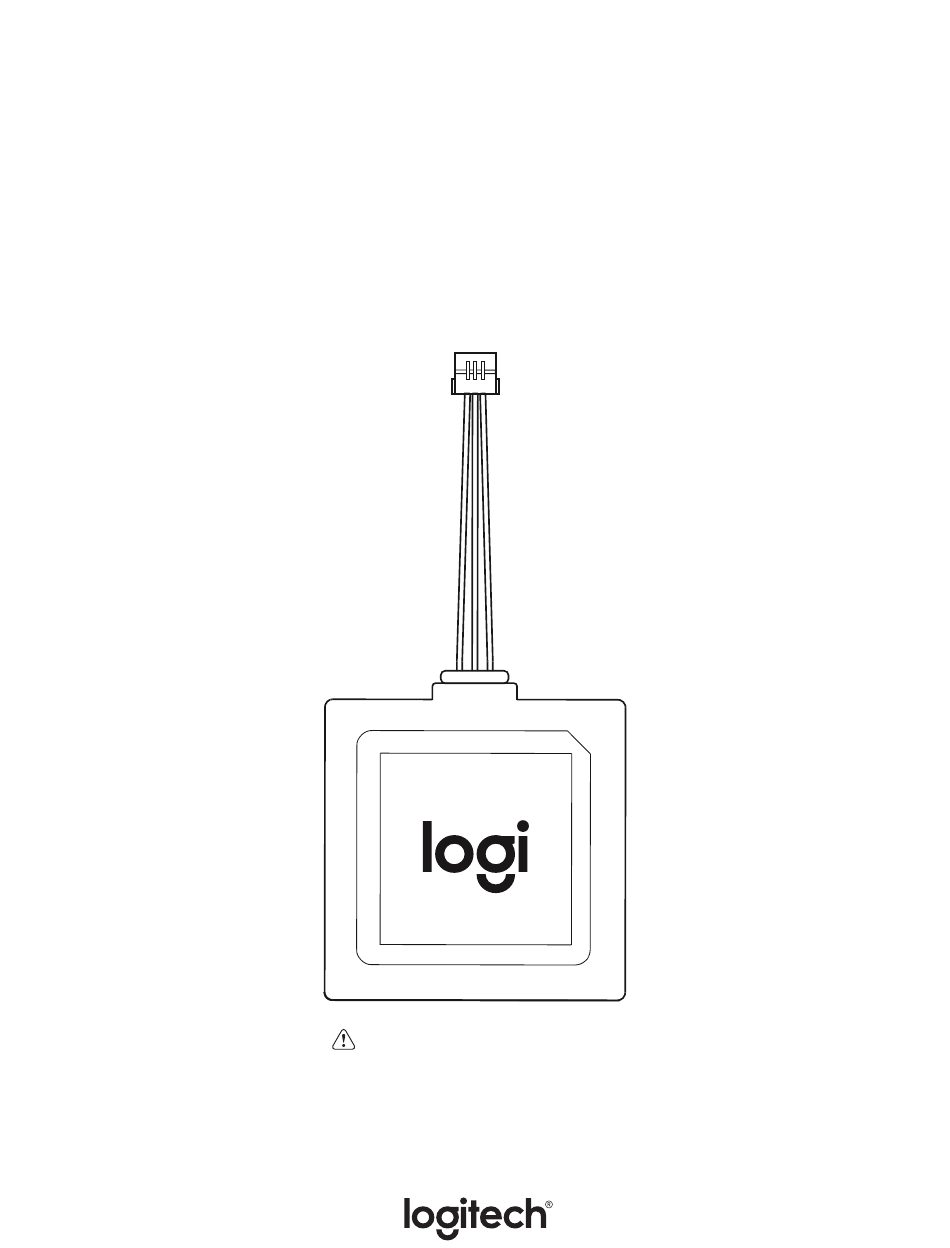

- Page 1 ZONE WIRELESS 2 REPLACEABLE BATTERY Setup Guide Setup Guide Recommended for technicians only...
- Page 2 CONTENTS English Español Français Português...
-
Page 3: Know Your Product
KNOW YOUR PRODUCT Battery connector Battery cables Lithium-ion battery WHAT’S IN THE BOX 1 Replaceable battery 2 User documentation WHAT’S NEEDED FOR REPLACEMENT (NOT INCLUDED) 1 Torx No 5 screwdriver 2 Removable tape or insulation tape (up to an outer diameter of 45 mm) 3 English... - Page 4 REPLACING HEADSET BATTERY 1 Hold the side without a microphone boom Battery is located this side 2 Rotate the earpad counterclockwise to take it off 3 Place a removable tape or an insulation tape in the middle of the speaker cover to avoid dropping screws into the speaker cover holes 45 mm...
- Page 5 4 Prepare a Torx No 5 size screwdriver 5 Check four screws near the edge of the speaker cover 6 Use the Torx No 5 screwdriver to take out all four screws Note: Make sure screws aren’t dropped into the speaker cover holes 7 Slowly open the speaker cover and carefully place it on the top right Be cautious to avoid damaging the...
- Page 6 8 Carefully take out the old battery by unplugging the battery connector 9 With the new battery, plug the battery connector into the main board connector 10 Place the headband wires on top of Headband wires the battery Battery wires Tuck in the battery wires around the notch Make sure the wires are not covering the screw holes...
- Page 7 11 Slowly put back the speaker cover Make sure all wires as well as the circuit are put inside and don't get jammed by the speaker cover 12 Use the screwdriver to put back four screws and tighten them Note: Be aware of the magnet at the bottom Carefully put back the screws in the right place as marked 13 Remove the tape from the speaker cover...
- Page 8 © 2024 Logitech Logitech, Logi, Zone, and the Logitech logo are trademarks or registered trademarks of Logitech Europe S A or its affiliates in the U S and/or other countries Torx is a trademark of Acument Intellectual Properties, LLC All other trademarks are the property of...
